- Page 1 PORTABLE AIR CONDITIONER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY PERCAUTIONS ······················································································· 2. GENERAL OVERVIEW ·························································································· 2.1 Part Names ······································································································ 2.2 Accessories ····································································································· 2.3 Control Panel ··································································································· 3. PREPARING FOR OPERATION ············································································· ················································································ 3.1 Installing The Exhaust Host 3.2 Connecting To Mains Supply ··············································································· 4. OPERATION ········································································································ 4.1 Operating Conditions ························································································· 4.2 Operation ········································································································... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS ead this manual before using the product! his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 1. SAFETY PRECAUTIONS CAUTION This symbol indicates the possibility of property damage or serious consequences. This product is intended for human comfort ONLY. Do not block air inlets or outlets. Poor performance, increased running costs and reduce product life will result. Do not place the unit in front of drapes, curtains or other hangings.
-
Page 5: General Overview

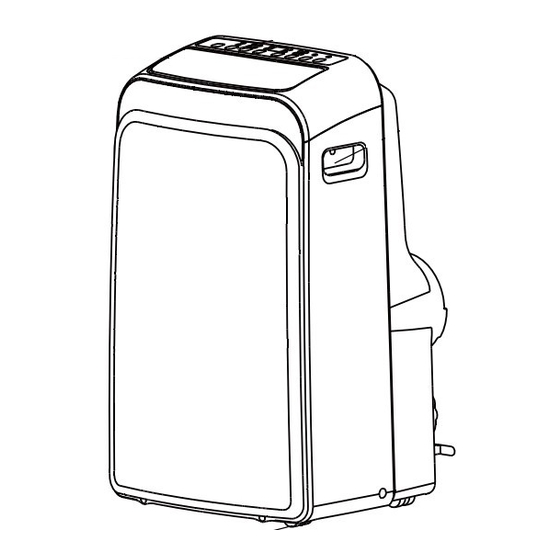

2. GENERAL OVERVIEW 2.1 PART NAMES REAR VIEW FRONT VIEW Upper Air Filter Bottom Tray Drain Outlet Control Panel Upper Air Intake Louver Plug Socket (Storage use only) Exhaust Air Outlet Casters Lower Air Filter Drain Outlet 1 Recessed Handle Lower Air Intake Power Cord Outlet Power Cord Brackets... -
Page 6: Control Panel
2. GENERAL OVERVIEW 2.3 CONTROL PANEL ON/OFF Button TIMER Button Operation starts when this button is pressed and stops Press this button to initiate unit’s auto on/off time. when this button is pressed again. SWING Button SLEEP Button Set the louver to auto-swing or stop swinging. Active/Disable sleep function. -
Page 7: Preparing For Operation
3. PREPARING FOR OPERATION CAUTION The unit should be placed on a firm foundation to minimize noise and vibration. Make sure the floor is strong enough to support the unit. Never place any obstacles around the air inlet or outlet of unit. 3.1 INSTALLING THE EXHAUST HOSE 3.3.1 Window slider kit installation Minimum: 67.5cm... - Page 8 3. PREPARING FOR OPERATION How to install the exhaust hose Exhaust Hose Adapter A Adapter B 3.3.2 Wall installation Wall Exhaust adapter Adapter C Exhaust Hose Adapter A 3.3.3 The height of exhaust hose outlet. 30 ~ 120cm 30 ~ 120cm NOTE Do not over bend the exhaust hose.
-
Page 9: Connecting To Mains Supply
3. PREPARING FOR OPERATION 3.2 CONNECT TO MAIN SUPPLY CAUTION The unit should be placed within reach of a properly rated grounded socket. Power plug must be securely inserted into the socket outlet. Do not use extension cord , adapter or share the same power outlet with other appliance. Do not trap the power cord in any way. -
Page 10: Operation
4. OPERATION 4.2 OPERATION Basic Operation Modes：COOL / DRY / HEAT / FAN / AUTO COOL Mode 1) Press MODE and select 2) Press +/- on the unit or TEMP on the remote control to select the temperature. 3) Press FAN on the unit or remote control to select the fan speed. DRY Mode 1) Connect the drain hose as figure shown. - Page 11 4. OPREATION FOLLOW ME Function* When the Follow Me function is activated, the remote display is actual temperature at its location. And the remote controller will send this signal to the unit every 3 minutes interval until press the FOLLOW ME button again. NOTE: The Follow Me function is not available under DRY and FAN mode.
-
Page 12: Care And Maintenance
5. CARE AND MAINTENANCE CAUTION DISCONNECT from power source BEFORE attempting to clean or service! Use a soft damp cloth when cleaning the grille, casing and remote control. Always contact a qualified service personnel to carry out repair or any non-user serviceable maintenance, such as deep-cleaning, lubricate and function check of critical component. -
Page 13: Trouble Shooting
6. TROUBLE SHOOTING 6.1 GUIDES, TIPS AND CAUTIONS The following may occur during normal operation, and may not indicate malfunction. Case Explanation / Solution Cooling or heating is delayed. A 3 minute delay protects the compressor. Check that the unit is firmly plugged in and the mains socket is switch on. Unit does not start or there is no power Room temperature is lower than the set temperature (Cooling mode). - Page 16 BEIJER RET AB Stortorget 8 Malmö Sweden...
