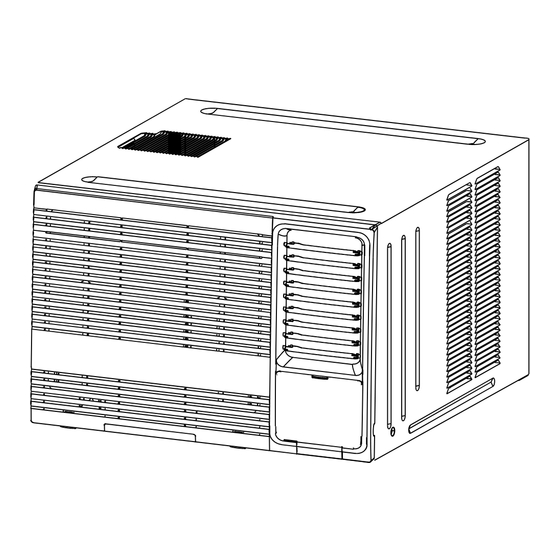

WINDOW/WALL TYPE ROOM AIR CONDITIONER (REMOTE TYPE) 51QW007716G 51QW009716G 51QW012716G 51QW018716G Before using your air conditioner, please read this manual carefully and keep it for future reference. -
Page 2: Sociable Remark
SOCIABLE REMARK When using this unit in the European countries, the following informations must be observed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS Warning ..........................3 Caution ..........................4 Points for using air conditioner ....................5 Unit identification ........................5 OPERATION INSTRUCTIONS Electronic control operating instructions.................6 Adjust air flow direction ......................8 Vent control ..........................9 CARE AND CLEANING Air filter cleaning ........................10 Cabinet cleaning ........................10 Winter storage ........................10 INSTALLATION INSTRUCTIONS Select the best location ......................11... -
Page 4: Safety Precautions
Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operati- on due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications. WARNING ：... -
Page 5: Caution
Safety Precautions CAUTION Ventilate well when used When the air filter is to be Do not clean the air together with a stove, etc. removed, do not touch the conditioner with water. metal parts of the unit. It may cause an injury. An oxygen shortage may occur. -
Page 6: Points For Using Air Conditioner
Safety Precautions Points for using air conditioner WARNING To reduce the risk of fire, electric shock, or injury to persons, read the Safety Precautions be- fore operating this appliance. NOTE: If the air conditioner is turned off, wait 3 minutes before restarting. This allows pressure inside the compressor equa- lize. -
Page 7: Operation Instructions
Operation instructions ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote controller as shown below and all its functions, then follow the instructions for the functions you desire. The unit can be controlled by the unit control alone or with the remote controller. - Page 8 Operation instructions SLEEP: DRY operation: Press and hold the "SWING" keypad for 2 seconds or In the Dry mode, the air conditioner will generally use the remote control to activate the "SLEEP" feature . operate in the form of a dehumidifier. Since the Press and hold the "SWING"...
-
Page 9: Adjust Air Flow Direction
Operation instructions CONTROL PANEL COVER Grasp the top of the operation cover and pull it downwards to open it. Close the operation cover and press the top of the operation cover again until it snaps into the locked position. Note: Don't press or swing the opened operation cover. -
Page 10: Vent Control
Operation instructions Vertical air flow adjustment (manually) To adjust vertical air flow direction, adjust any one of the horizontal louver blades. When turning up or down the horizontal louver blades, always keep the blades horizontality. This can effectively prevent water drops condensed on the front panel of the unit. -
Page 11: Care And Cleaning
Care and cleaning Care and cleaning Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and cause an accumulation of frost on the cooling coils. Remove the Hold the slot under the front panel, then uplift it onwards, and air filter... -
Page 12: Installation Instructions
Installation instructions Installation instructions AWNING Suggested tools FENCE 1. Screw driver (medium size Phillips) 2. Tape measure or ruler 3. Knife or scissors 4. Level gauge Select the best location 1. To avoid vibration and noise, make sure the unit is installed securely and firmly. -
Page 13: Dimensions
Installation instructions Flash or seal around external Installation of the unit into the Housing wall frame or architrave 1. Fit the drain pan to the housing and attach a drain tube to a suitable location if required. 2. Slide the unit into the housing until it is firmly against the rear Ensure louvres of the housing. -
Page 14: Treatment Of Condensed Water
Installation instructions TREATMENT OF CONDENSED WATER To meet different requirement of different type of air conditioner, there are two kinds of methods for your choice to treat the condensed water. You can choose back drainage or bottom-drainage depending on accessories provided with your air conditioner. - Page 15 Installation instructions Step 3. Installation 1. For <12000Btu/h models, first remove two screws on the chassis fixing brackets, then remove the chassis fixing brackets(Fig.4) ; For >12000Btu/h models, remove the four screws located on both sides and the back of the cabinet, then remove the chassis fixing bracket as shown in Fig.4.
-
Page 16: Troubleshooting Tips
Troubleshooting tips Troubleshooting tips Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Normal Operation You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. - Page 17 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. 2020001A9209...
