User Manual
RWS119 – Series
1U widescreen 19" LCD keyboard drawer
Direct support for SUN Micro 1152 x 900
native resolution
Combo interface PS/2 or USB input
SUN key support including Stop, Cut, Paste,
Compose etc
Full range of KVM options
RW119- Widescreen
Series
RWS119- Sun
Solaris Series
www.raloy.com

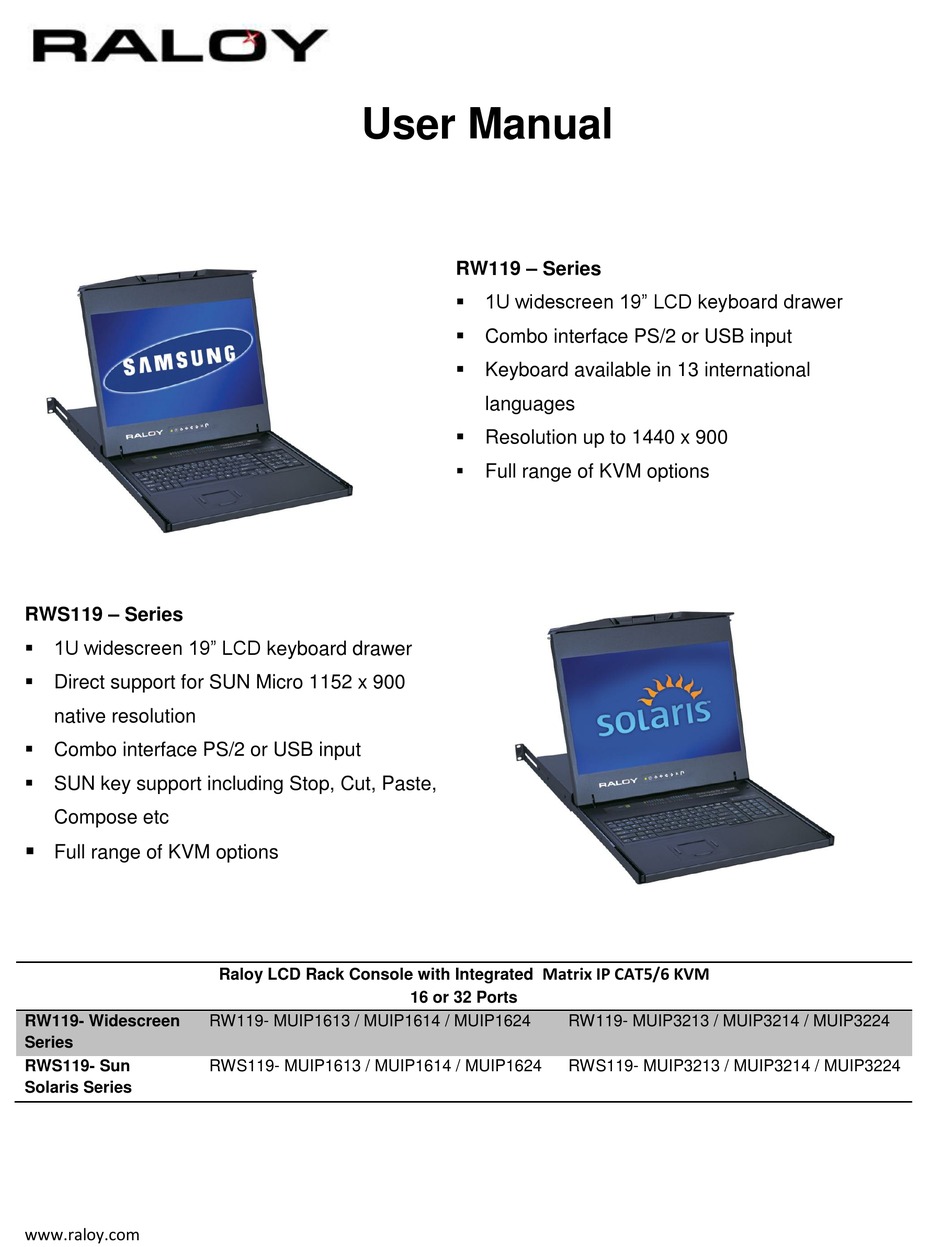

User Manual
Raloy LCD Rack Console with Integrated
RW119- MUIP1613 / MUIP1614 / MUIP1624
RWS119- MUIP1613 / MUIP1614 / MUIP1624
RW119 – Series
1U widescreen 19" LCD keyboard drawer
Combo interface PS/2 or USB input
Keyboard available in 13 international
languages
Resolution up to 1440 x 900
Full range of KVM options
Matrix IP CAT5/6 KVM
16 or 32 Ports
RW119- MUIP3213 / MUIP3214 / MUIP3224
RWS119- MUIP3213 / MUIP3214 / MUIP3224
Advertisement
Table of Contents
Related Manuals for Raloy RW119 Series
Summary of Contents for Raloy RW119 Series
- Page 1 SUN key support including Stop, Cut, Paste, Compose etc Full range of KVM options Matrix IP CAT5/6 KVM Raloy LCD Rack Console with Integrated 16 or 32 Ports RW119- Widescreen RW119- MUIP1613 / MUIP1614 / MUIP1624 RW119- MUIP3213 / MUIP3214 / MUIP3224...
-
Page 2: Table Of Contents
KVM Server Connection ..................................... 12 KVM Cascade ......................................12 1.14 KVM Diagrams ..............................2 Models: ..................................2 RW119-MUIP3213 RWS119-MUIP3213 ..........................2 RW119-MUIP3214 ................................2 RWS119-MUIP3214 ................................. 2 RW119-MUIP3224 RWS119-MUIP3224 ..........................2 KVM Server Connection ....................................2 KVM Cascade ........................................ 2 www.raloy.com... - Page 3 Chapter 3 LCD Specifications ........................5 LCD Rackmount Widescreen Series Specifications ....................5 Keyboard & Mouse .............................. 6 For RW119 series......................................6 Keyboard & Mouse (Continued) ........................... 7 For RWS119 series ......................................7 How to use “NS” keyboard ........................... 8 Chapter 4 KVM Specifications ........................
-
Page 4: Chapter 1 Getting Started
Causes external to the product, such as electric power fluctuation or failure. o Use of supplies or parts not meeting our specifications. o Normal wear and tear. o Any other causes which does not relate to a product defect. Removal, installation, and set-up service charges. www.raloy.com... -
Page 5: Regulatory Notice
Re-position or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. www.raloy.com... -
Page 6: Package Contents
Receiver x 2 set (for MUIP 1614 & MUIP 3214) 8) RDG-100S USB Dongle for CAT5/6 KVM x 16pcs RCE-6 Combo 4-in-1 KVM cable x 1 pcs (for MUIP1613, MUIP1624, MUIP 3213 & MUIP3224) RCE-6 Combo 4-in-1 KVM cable x 2 pcs (for MUIP 1614 & MUIP 3214) www.raloy.com... -
Page 7: Before Installation
Position LCD Keyboard Drawer with respect to related facilities. Unpacking The LCD keyboard drawer comes with the standard parts as shown in the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately. www.raloy.com... -
Page 8: Optional Accessories
4. Combo KVM cascade cable 4.1 RCBC-6 6 feet 5. DVI-USB dongle for CAT5/6 KVM 5.1 RDG-100SD 6. VGA-USB dongle for CAT5/6 KVM 6.1RDG-100S 7. VGA-PS/2 dongle for CAT5/6 KVM 7.1 RDG-100 8. Power cord 8.1 IEC power cord 8.2 NEMA5-15 power cord www.raloy.com... -
Page 9: Lcd Rackmount Structure Diagram
2. Two-point lock 3. LCD interchangeable module kit 4. LCD membrane 5. “One Man” Installation Slide 6. Micro switch for screen auto power off 7. Keyboard interchangeable module kit 8. Membrane switch (KVM option) 9. Mouse interchangeable module kit www.raloy.com... -
Page 10: Installation
Attach the left and right mounting bracket to rack 19” mounting rails Adjust the mounting bracket to fit your rack M6 screw x 8pcs included Caution: Leaving all M6 screw slightly loose, until you complete the installation in step Pull out left & right inner slide members www.raloy.com... -
Page 11: Installation (Continued)
Fix the rear kit to the mounting bracket by M3.2 screw x 4 pcs included. Caution: This step is necessary. Failure to complete this will cause damage. Complete the installation Tighten all 8 pcs of M6 screw to complete the installation. www.raloy.com... -
Page 12: 1.10 How To Use The Slides
LCD keyboard drawer to unlock. (Shown in Figure 2). Figure 2. Push the LCD keyboard drawer into the rack. (Shown in Figure 3). Caution : Keep your fingers away from the slide stop Figure 3. www.raloy.com... -
Page 13: 1.11 How To Use The Lcd Keyboard Drawer
Flip up the LCD to a suitable angle. (shown in Figure5) Figure 5. Flipping up the LCD to a suitable angle. Operate the LCD keyboard drawer. (shown in Figure 6) Figure 6. Operating the LCD keyboard drawer www.raloy.com... -
Page 14: 1.12 Kvm Model Connection Diagrams
RW / RWS119- MUIP 3214 32 – Port KVM (1 local + 2 CAT5/6 remote + 1 IP remote users) RW / RWS119- MUIP 3224 32 – Port KVM (1 local + 1 CAT5/6 remote + 2 IP remote users) www.raloy.com... -
Page 15: 1.13 Kvm Diagrams
Widescreen LCD Rack Console with Matrix IP CAT5/6 KVM 1.13 KVM Diagrams Models: RW119-MUIP1613 RW119-MUIP1614 RW119-MUIP1624 RWS119-MUIP1613 RWS119-MUIP1614 RWS119-MUIP1624 KVM Server Connection KVM Cascade www.raloy.com... -
Page 16: 1.14 Kvm Diagrams
Widescreen LCD Rack Console with Matrix IP CAT5/6 KVM 1.14 KVM Diagrams Models: RW119-MUIP3213 RW119-MUIP3214 RW119-MUIP3224 RWS119-MUIP3213 RWS119-MUIP3214 RWS119-MUIP3224 KVM Server Connection KVM Cascade www.raloy.com... -
Page 17: Kvm Connection Kvm Cable Connection & Receiver Diagrams (All Models)
Widescreen LCD Rack Console with Matrix IP CAT5/6 KVM 1.15 KVM Connection KVM Cable Connection & Receiver Diagrams (All Models) Receiver Receiver Connection www.raloy.com... -
Page 18: Chapter 2 Operation
Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital & video connection (DVI-D and video options only) www.raloy.com... -
Page 19: On-Screen Menu
To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute Misc: To enter into the language, OSD position, graphic mode, OSD time, ratio, reset and timer www.raloy.com... -
Page 20: Chapter 3 Lcd Specifications
Support USB servers or Combo KVM switches Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Max. 48 Watt, Standby 5 Watt Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs. Regulation Approval FCC, CE, UL* www.raloy.com... -
Page 21: Keyboard & Mouse
Widescreen LCD Rack Console with Matrix IP CAT5/6 KVM Keyboard & Mouse For RW119 series Supporting layouts N keyboard integrated with Touchpad N keyboard integrated with trackball www.raloy.com... -
Page 22: Keyboard & Mouse (Continued)
104 key notepad keyboard with full numerical pad and SUN function USB interface NS keyboard integrated with trackball Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help 104 key notepad keyboard with full numerical pad and SUN function USB interface www.raloy.com... -
Page 23: How To Use "Ns" Keyboard
Three Audio / Display keys are located in the upper-right corner of the NS keyboard: Audio: Mute, decrease in volume and increase in volume. Display: Degauss, decrease contrast and increase contrast. Please ask your supplier for full details www.raloy.com... -
Page 24: Chapter 4 Kvm Specifications
Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: USB Basic DB-15 KVM with either 8 or 16 ports 1U Cost efficient remote server management between user & equipment rooms within the building; access up to 300 meters Mix PS/2, USB & SUN with Multi-Platform switch capability www.raloy.com... -
Page 25: Dvi-D Option
3-in-1 VGA mouse console port S-Video Power Remarks: Package includes 1 x 6ft S-Video cable Audio Option Speaker 3-in-1 VGA mouse Power Audio Remarks: Audio input is 35mm audio plug The speaker shares the same power with LCD. www.raloy.com... -
Page 26: Dc Power Options
50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Efficiency Remarks: Package does not include power cord and AC power adapter www.raloy.com... -
Page 27: Chapter 5 Troubleshooting
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually www.raloy.com... -
Page 28: Chapter 6 Dimensions
The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2009 Raloy All rights reserved. www.raloy.com...
