Features & Benefits:
1U short depth design console, server rack or relay rack mounted
19" Widescreen Samsung CCFL LCD w/ Hi-Resolution (1440 x 900)
Modular scalability: KVM Switch, Peripherals & More
Combo interface w/ PS/2 or USB input w/ front USB port access
New easy maneuver front handle
6 foot Combo KVM cable included
Modular Scalability
Multi-platform KVM switch capability: PS/2, USB or Sun
Mouse: Touchpad(e) or Trackball(b)
Keyboard available in 13 languages
DC power options: 48V, 24V or 12V
DVI-D + VGA Broadcast-grade input
o or DVI-D + SDI
o or DVI-D + Audio
o or DVI-D + S-Video + Composite (BNC)
o or HDMI with speaker
www.raloy.com

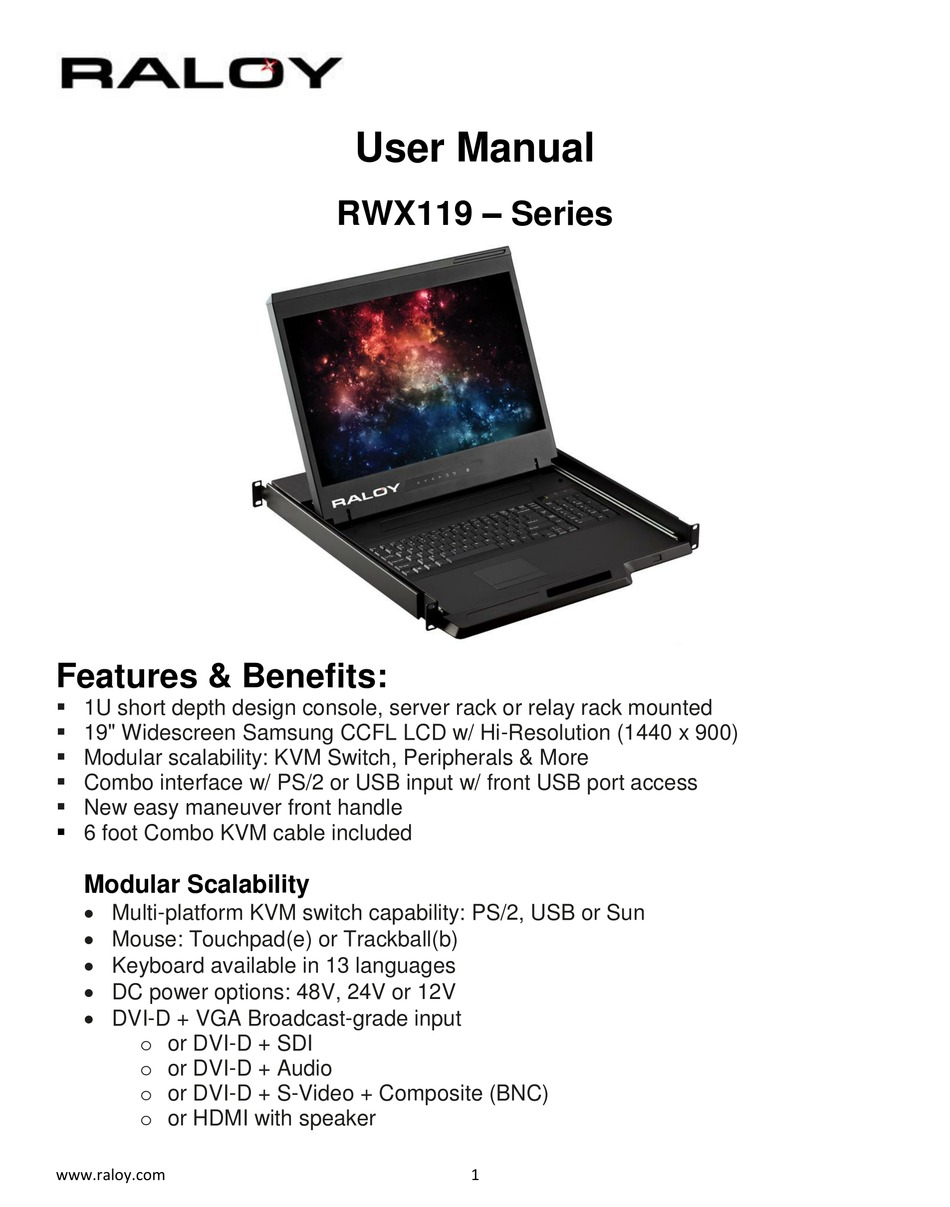

User Manual
RWX119 – Series
1
Advertisement
Table of Contents
Related Manuals for Raloy RWX119 - Series
Summary of Contents for Raloy RWX119 - Series
- Page 1 Keyboard available in 13 languages DC power options: 48V, 24V or 12V DVI-D + VGA Broadcast-grade input o or DVI-D + SDI o or DVI-D + Audio o or DVI-D + S-Video + Composite (BNC) o or HDMI with speaker www.raloy.com...
-
Page 2: Table Of Contents
On-screen Menu ..............................17 Chapter 3 Standard Specifications ......................18 Specifications ................................18 Keyboard & Mouse ...............................19 Chapter 4 Optional Specifications ......................20 KVM Options ................................20 DVI-D Option ................................20 BNC + S-Video Option............................21 Audio Option................................21 HDMI Options ................................22 DC Power Options ..............................22 www.raloy.com... - Page 3 Chapter 5 Troubleshooting ........................23 Chapter 6 Dimensions ..........................24 www.raloy.com...
-
Page 4: Chapter 1 Getting Started
Causes external to the product, such as electric power fluctuation or failure. o Use of supplies or parts not meeting our specifications. o Normal wear and tear. o Any other causes which does not relate to a product defect. Removal, installation, and set-up service charges. www.raloy.com... -
Page 5: Regulatory Notice
Re-position or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. www.raloy.com... -
Page 6: Package Contents
6) Mounting bracket x 2 pcs 7) M6*15mm screw x 8 pcs 8) M3.2*6mm screw x 4 pcs The above package content is only for the single console models. It varies with options such as KVM, SDI, HDMI, DVI-D, AV, audio & DC power. www.raloy.com... -
Page 7: Before Installation
2.3 RCB-15 15 feet 3. Power Cord 3.1 IEC power cord 3.2 REC-PUS NEMA 5-15 power cord (US) 3.3 REC-PUK BS 1363 power cord (UK) 3.4 REC-PGM CEE 7/4 power cord (German) 3.5 REC-PAU AS 3112 power cord (Australia) www.raloy.com... -
Page 8: Default Password & Reset Diagram
1) The KVM password can be reset on the KVM PCB board 2) Open the KVM top metal cover 3) Find the jumper J7, then use either paper clip or scissors to touch the two boxes of J7 in order to close/short the jumper 5 ~ 10 second www.raloy.com... -
Page 9: Structure Diagram
Structure Diagram www.raloy.com... -
Page 10: Installation
Attach the left and right mounting bracket to rack 19” mounting rails Adjust the mounting bracket to fit your rack M6 screw x 8pcs included Caution: Leaving all M6 screw slightly loose, until you complete the installation in step Pull out left & right inner slide members www.raloy.com... -
Page 11: Installation (Continued)
Fix the rear kit to the mounting bracket by M3.2 screw x 4 pcs included. Caution: This step is necessary. Failure to complete this will cause damage. Complete the installation Tighten all 8 pcs of M6 screw to complete the installation. www.raloy.com... -
Page 12: 1.10 How To Use The Slides
LCD keyboard drawer to unlock. (shown in Figure 2). Figure 2. Push the LCD keyboard drawer into the rack. (shown in Figure 3). Caution : Keep your fingers away from the slide stop Figure 3. www.raloy.com... -
Page 13: 1.11 How To Use The Lcd Keyboard Drawer
Flip up the LCD to a suitable angle. (shown in Figure Figure 5. Flipping up the LCD to a suitable angle. Operate the LCD keyboard drawer. (shown in Figure 6) Figure 6. Operating the LCD keyboard drawer www.raloy.com... -
Page 14: Rw119 (Single Console) - Ps/2 Server Connection
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way. www.raloy.com... -
Page 15: Rw119 (Single Console) - Usb Server Connection
Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way. www.raloy.com... -
Page 16: Chapter 2 Operation
Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital & video connection (DVI-D and video options only) www.raloy.com... -
Page 17: On-Screen Menu
To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute Misc: To enter into the language, OSD position, graphic mode, OSD time, ratio, reset and timer www.raloy.com... -
Page 18: Chapter 3 Standard Specifications
VESA EDID structure 1.3 Synchronization VGA Separate, Composite & SOG Audio Connection Audio Input Connector 3.5mm stereo jack 30k Ω/ 750mV Impedence/ Power level Audio Output Connector 3.5mm stereo jack 30k Ω/ 2.8V Resistance/ Power level Speaker Output Power 2x2W www.raloy.com... -
Page 19: Keyboard & Mouse
Keyboard & Mouse Supporting languages Supporting layouts www.raloy.com... -
Page 20: Chapter 4 Optional Specifications
Chapter 4 Optional Specifications KVM Integration Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: www.raloy.com... -
Page 21: Dvi-D Option
Remarks: Package includes 1 x 6ft S-Video cable Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Remarks: Audio input is 35mm audio plug The speaker shares the same power with LCD. www.raloy.com... -
Page 22: Hdmi Options
50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Efficiency Remarks: Package does not include power cord and AC power adapter www.raloy.com... -
Page 23: Chapter 5 Troubleshooting
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", “1440 x 900”, are determined by the display card in your computer. www.raloy.com... -
Page 24: Chapter 6 Dimensions
The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Raloy All rights reserved. www.raloy.com...
