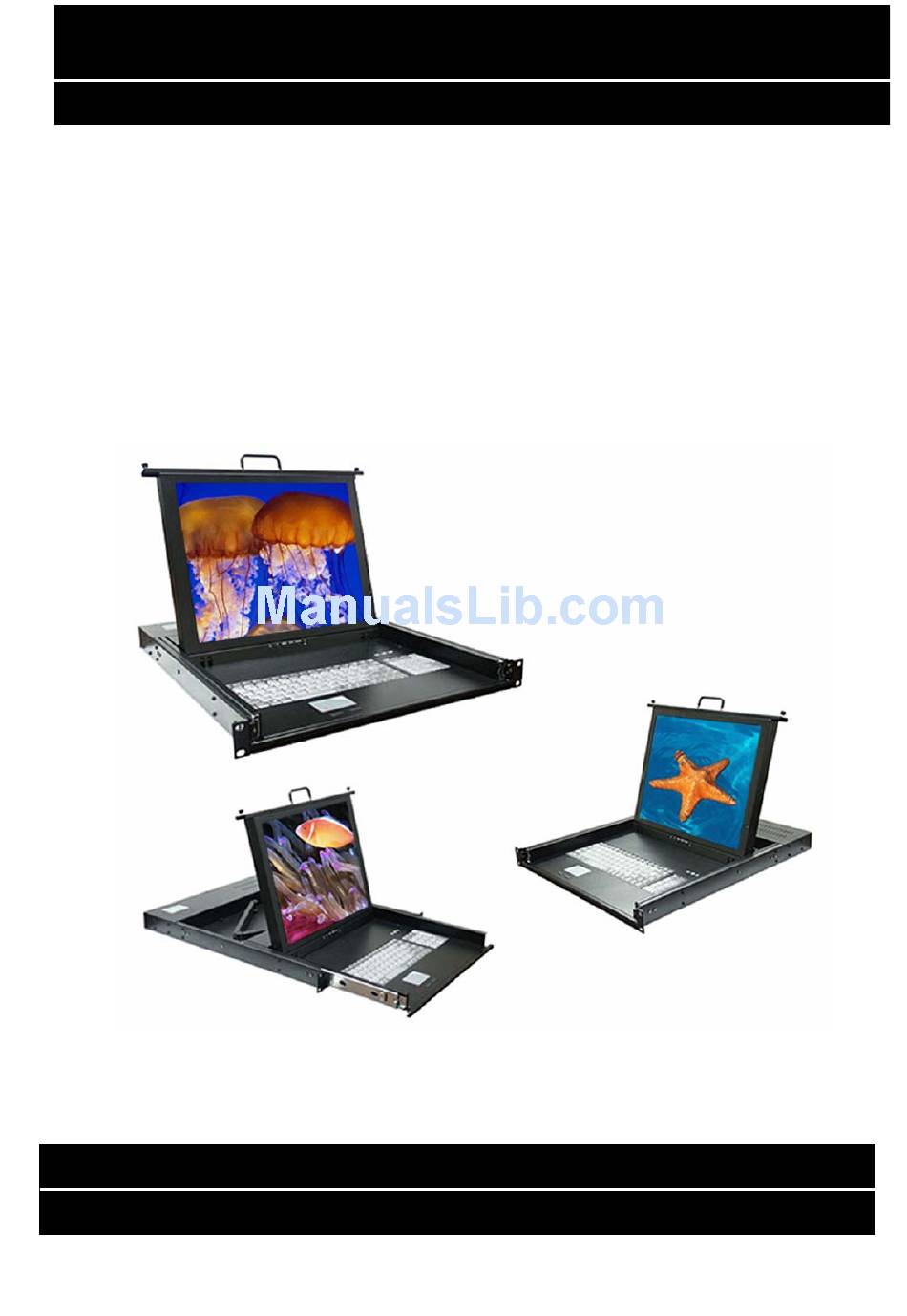

Page 1: Lcd Monitor
RALOY R A C K M O U N T C O N S O L E S Slim 1U Rackmount LCD Monitor Optional KVM Switch USER MANUAL www.RALOY.com Copyright ® 2004 Raloy, Inc. All Right Reserved... -
Page 2: Table Of Contents
TROUBLESHOOTING …………………………………25 ACCESSORIES………………………………………… RA17KVM16 Illustration…………………………………………………26 ……………….……………………………………………..26 INTRODUCTION …………...……………………………………………………..….26 FEATURES ………..…………………….…………………….27 TECHNICAL SPECIFICATIONS ………………………………………………………….27 SYSTEM REQUIREMENT ………………………………………….………………….28 CABLE DIAGRAMS …………………………..………….………………29 HARDWARE INSTALLATION ………………………………………..………………………………31 USAGE ……………………….…………………33 DAISY CHAIN CONNECTION DIAGRAM ……………………………………………………..………………34 HOT PLUG ……………………………………………………………35 TROUBLESHOOTING …………………………………………………………………36 ACCESSORIES Certifications & Services…………………...…………………………..37 Raloy Manual... -
Page 3: Specification
250:1 350:1 Brightness: 250 NTS 280 NTS Frequency: 60Hz 60Hz Color: 16.7M colors 16.7M colors Control System: Accessories: RA15/17 RA15/17KVM8 RA15/17KVM16 Model Extension Bracket: × 2 × 2 × 2 Power cord: × 1 × 1 × 1 Raloy Manual... -
Page 4: Rackmount Installation
1. Find the property position to screw these two extension brackets with the ears and both side onto the server rackmount first. 2. Lift & push the Raloy inside the rackmount, and screw between bracket and Raloy with 4 screws. -
Page 5: Product Detail
Product Detail Self-locking Device Press the button to unlock Maximum Extension Length Up To 110∘ 431.8mm The view of open & close situation Raloy Manual... -
Page 6: On Screen Display
On Screen Display Raloy Manual... - Page 7 Auto Adjustment Bright & Contrast Raloy Manual...
- Page 8 Image Adjustment Raloy Manual...
- Page 9 Color Adjustment Raloy Manual...
- Page 10 Raloy Manual...
- Page 11 Language Selection Reset Raloy Manual...
- Page 12 OSD Adjustment Exit Raloy Manual...
-
Page 13: On Screen Display For Kvm Operation
To use “ PgUp “ key or “ PgDn” key for selecting previous or next Bank no. (or Box No.) PgDn/PgUp: BANK SELECT To press “ INS” key for editing PC name. After finishing the edit, please press “ Enter “ key for saving information. ESC : QUIT ENTER :COMPLETE TAB : NEXT INSERT :EDIT Raloy Manual... - Page 14 Enter key, there is another window for confirming your typed password. ENTER NEW PASSWORD : █ ESC : QUIT ENTER : COMPLETE RETYPE NEW PASSWORD : █ ESC : QUIT ENTER : COMPLETE You need to retype the password again for rechecking your previous key-in password is Raloy Manual...
- Page 15 LOCK”, “SCROLL LOCK”, “R” keys in this order. The Seven segment LEDs on the front panel will be flashed during the refresh process. ROM REFLASH When the OSD value back to default setting, the seven segment LEDs on the front panel will stop flashing Raloy Manual...
-
Page 16: Ra15/17Kvm8 Illustration
Buzzer sound for switching port confirmation. Compatible with standard PS/2 Keyboard, PS/2 Mouse, and VGA. Built-in one extra daisy chain port and no waste any PC port No DIP switch setting needed and auto detect daisy chain bank Raloy Manual... -
Page 17: Package Contents
RA15/17KVM8 Built-in VGA Monitor Console Built-in PS/2 Keyboard Built-in PS/2 Touchpad 8 HDB 15 pin male to male VGA cables To Computers 8 PS/2 cables male to male for Keyboard 8 PS/2 cables male to male for Mouse Raloy Manual... -
Page 18: Connector Diagrams
VGA Cable: HDB15 pin Male to Male AT to PS/2 keyboard adapter: (Optional) Din 5 pin Male to Mini Din 6 pin Female PS2 to DB9 adapter (Optional) Mini Din 6 pin Female to DB 9 pin Female Raloy Manual... -
Page 19: Hardware Installation
Double-check all of the connections. You can check the color of keyboard and mouse connector to make sure the keyboard and mouse cables go to the correct ports. Step 5 Repeat step 2 to 4 for the remainder of the computers. Raloy Manual... -
Page 20: Usage
↑ Previous Channel Lock Lock Scroll Scroll ↓ Next Channel Lock Lock (Note: You also could press “up arrow key” or “down arrow key” longer time to speed up selecting the destination port) Scroll Scroll Page Lock Lock Raloy Manual... - Page 21 ROM REFLASH Scroll Scroll Search the same PC name Lock Lock (Note: Search PC name starting from 1 PC port) F I N D : █ Scroll Scroll Lock Lock + Space bar = On Screen Display Menu Raloy Manual...
- Page 22 Scroll lock + Scroll lock + Page Down Notice: Bank no. and Port no. Selection must be made using the numeric keys on the keyboard. Numeric keys on the keypad are not available as a hot key command. Raloy Manual...
-
Page 23: Daisy Chain Connection Diagram
D. Before chaining the slave bank up to six banks, you need a VGA extender (Model No. VGA-100, Max. 100 feet ) between the fifth bank and the sixth bank to enhance the VGA signal. Raloy Manual... -
Page 24: Hot Plug
When you switch one PC port to another PC port, the best scan time setting need to be set at 5 sec. or more. Normally, the VGA monitor change one resolution mode to another will take a few seconds. Raloy Manual... -
Page 25: Accessories
Devices (PC, iMAC or SUN platforms) • Support standard PS/2 Mouse and Microsoft Intellimouse • Eas install • Bus power, External power Adapter Not Required • Complies to USB 1.0 and 1.1 Specification • Support UHCI and OHCI USB Interfaces Raloy Manual... -
Page 26: Ra17Kvm16 Illustration
LED Display for easy status monitoring Buzzer sound for switching port confirmation. Using Standard Keyboard, VGA, Mouse cable. Built-in one extra daisy chain port and no waste any PC port No DIP switch setting needed and auto detect daisy chain bank Raloy Manual... -
Page 27: Technical Specifications
8 levels MAX PC Connection Housing Metal Power 110/220 AC Operation Temperature 0~40℃ Storage Temperature -20 ~ 60℃ Humidity 0~90%, Non-Condensing System Requirements Specifications: Model No. RA15/17KVM16 Console side One VGA Monitor One PS/2 Keyboard One PS/2 Mouse Raloy Manual... -
Page 28: Cable Diagrams
VGA Cable: HDB15 pin Male to Male AT to PS/2 keyboard adapter: (Optional) Din 5 pin Male to Mini Din 6 pin Female PS2 to DB9 adapter (Optional) Mini Din 6 pin Female to DB 9 pin Female Raloy Manual... -
Page 29: Hardware Installation
Now the PC connections will be made with the monitor (VGA) connections first. Connect a VGA cable (15-pin HDDB Male / Male) with the Male side to both of the PC and the rear panel of the RA15/17KVM16 to the connector labeled VGA. Repeat this for all PCs. The rear side of PC Raloy Manual... - Page 30 Attach the power supply to the KVM unit and plug the other end into an electrical receptacle. Now you will see the LED for Port 1 light up, and you will hear a beep. Switch on your monitor. Raloy Manual...
-
Page 31: Usage
If you have not pressed any key in hot key mode within 2 seconds (It means to key in any key follows up “Scroll Lock” “Scroll Lock” key ), the keyboard will back to under Operation System control state. Raloy Manual... - Page 32 Scan Mode ) Scroll Scroll Auto Scan Lock Lock To get out of Auto Scan Mode, Press any key or SPACE bar. Scroll Scroll OSD default value Lock Lock (Note: Not including password) ROM REFLASH Scroll Scroll Lock Lock Raloy Manual...
-
Page 33: Daisy Chain Connection Diagram
Use one end of 3-in-one Cable Kit to connect the daisy chain port of bank 1 and the other end for the console port (white color block) of bank 2 RA15/17KVM16. Please repeat item B to daisy chain more bank as you want. But, the maximum daisy chain bank is eight levels. Raloy Manual... - Page 34 Before chaining the slave bank up to six banks, you need a VGA extender (Model No. VGA-100, Max. 100 feet ) between the fifth bank and the sixth bank to enhance the VGA signal. Raloy Manual...
-
Page 35: Hot Plug
If you apply “Hot Plug” to this kind of O.S., it will cause unpredictable behavior or shut down the PC. Before attempting to use “ Hot Plug ” , please make sure your O.S. and software driver supports the “Hot Plug” function. Raloy Manual... -
Page 36: Troubleshooting
Although the PCs connected to RA15/17KVM16 unit are able to support enough power to the stand alone switch, RA15/17KVM16 unit still needs a power adapter for daisy chain more banks. 9. If forgetting the “ password ” you typed, please contact your supplier. Raloy Manual... -
Page 37: Accessories
Devices (PC, iMAC or SUN platforms) • Support standard PS/2 Mouse and Microsoft Intellimouse • Eas install • Bus power, External power Adapter Not Required • Complies to USB 1.0 and 1.1 Specification • Support UHCI and OHCI USB Interfaces Raloy Manual... - Page 38 If you have any problem about operating, please feel free to contact us via the following ways： ACME Portable Machines, Inc 1330 Mountain View Circle, Azusa CA 91702 Sales or Info: Tele: (626) 610-1888 Fax: (626) 610-1881 RMA: Tele: (626) 610-1890 Fax: (626) 610-1882 Raloy Manual...
