Raloy RW119 Series User Manual

Hide thumbs Also See for RW119 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

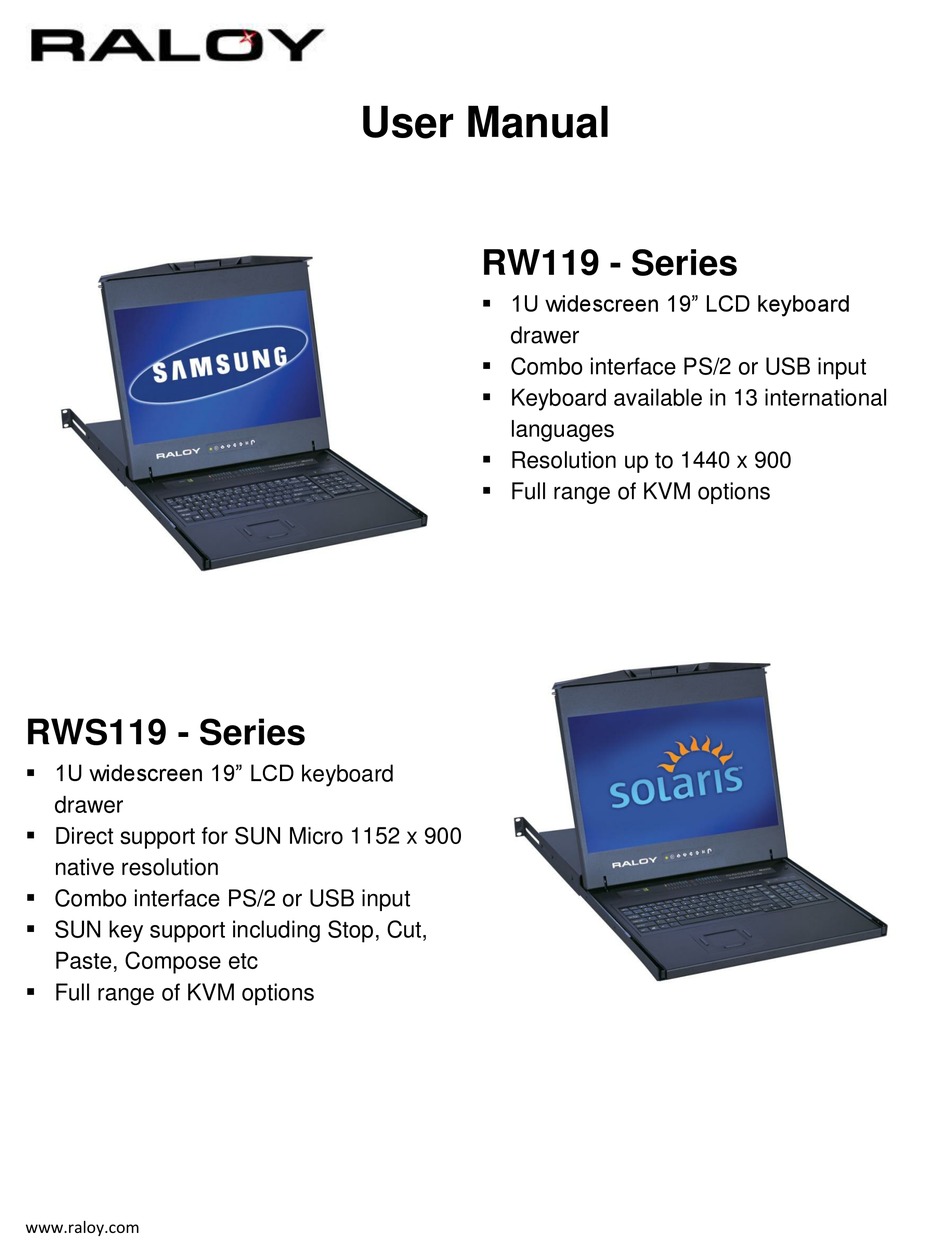

RWS119 - Series
 1U widescreen 19" LCD keyboard
drawer
 Direct support for SUN Micro 1152 x 900
native resolution
 Combo interface PS/2 or USB input
 SUN key support including Stop, Cut,
Paste, Compose etc
 Full range of KVM options
www.raloy.com
User Manual
RW119 - Series
 1U widescreen 19" LCD keyboard
drawer
 Combo interface PS/2 or USB input
 Keyboard available in 13 international
languages
 Resolution up to 1440 x 900
 Full range of KVM options

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RW119 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Raloy RW119 Series

Summary of Contents for Raloy RW119 Series

  • Page 1  1U widescreen 19” LCD keyboard drawer  Direct support for SUN Micro 1152 x 900 native resolution  Combo interface PS/2 or USB input  SUN key support including Stop, Cut, Paste, Compose etc  Full range of KVM options www.raloy.com...

  • Page 2: Table Of Contents

    On-screen Menu ..............................16 Chapter 3 Standard Specifications ......................17 Specifications ................................ 17 Keyboard & Mouse ............................... 18 For RW119 series ......................................18 Keyboard & Mouse (Continued) ........................20 For RWS119 series ..................................... 20 How to use “NS” keyboard ..........................21 Chapter 4 Optional Specifications ......................
  • Page 3 KVM Options................................22 DVI-D Option ................................22 BNC + S-Video Option ............................22 Audio Option ................................. 23 DC Power Options ..............................24 Chapter 5 Troubleshooting ........................25 For RWS119 Series ................................25 Chapter 6 Dimensions ..........................26 www.raloy.com...
  • Page 4 www.raloy.com...

  • Page 5: Chapter 1 Getting Started

    Causes external to the product, such as electric power fluctuation or failure. o Use of supplies or parts not meeting our specifications. o Normal wear and tear. o Any other causes which does not relate to a product defect.  Removal, installation, and set-up service charges. www.raloy.com...

  • Page 6: Regulatory Notice

     Re-position or relocate the receiving antenna. www.raloy.com...

  • Page 7: Package Contents

    3) User manual x 1 pc 4) Power cord x 1 pc 5) Auto switch power adapter ( for external power version) x 1 pc 6) Mounting bracket x 2 pcs 7) M6*15mm screw x 8 pcs 8) M3.2*6mm screw x 4 pcs www.raloy.com...

  • Page 8: Before Installation

    3.1 IEC power cord 3.2 REC-PUS NEMA 5-15 power cord (US) 3.3 REC-PUK BS 1363 power cord (UK) 3.4 REC-PGM CEE 7/4 power cord (German) 3.5 REC-PAU AS 3112 power cord (Australia) Remarks:  RCB-6 is for “RWS” series only www.raloy.com...

  • Page 9: Peripheral Products

    Combo Cat6 32 port KVM RS801 / R802 / RIP802 Combo DB-15 8 port KVM Combo DB-15 KVM RS1601 / R1602 / RIP1602 Combo DB-15 16 port KVM Remarks:  “RWS” Series are for Matrix & Combo KVM only. www.raloy.com...

  • Page 10: Structure Diagram

    2. Two-point lock 3. LCD interchangeable module kit 4. LCD membrane 5. “One Man” Installation Slide 6. Micro switch for screen auto power off 7. Keyboard interchangeable module kit 8. Membrane switch (KVM option) 9. Mouse interchangeable module kit www.raloy.com...

  • Page 11: Installation

    Attach the left and right mounting bracket to rack 19” mounting rails  Adjust the mounting bracket to fit your rack  M6 screw x 8pcs included Caution: Leaving all M6 screw slightly loose, until you complete the installation in step  Pull out left & right inner slide members www.raloy.com...

  • Page 12: Installation (Continued)

    Fix the rear kit to the mounting bracket by M3.2 screw x 4 pcs included. Caution: This step is necessary. Failure to complete this will cause damage. Complete the installation  Tighten all 8 pcs of M6 screw to complete the installation. www.raloy.com...

  • Page 13: How To Use The Slides

    A black arrow release button is located on the outside of each slide. (shown in Figure 1). Figure 1.  Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. (shown in Figure 2). Figure 2. www.raloy.com...
  • Page 14 Models: RW119 & RWS119  Push the LCD keyboard drawer into the rack. (shown in Figure 3). Caution : Keep your fingers away from the slide stop Figure 3. www.raloy.com...

  • Page 15: How To Use The Lcd Keyboard Drawer

     Flip up the LCD to a suitable angle. (shown in Figure Figure 5. Flipping up the LCD to a suitable angle.  Operate the LCD keyboard drawer. (shown in Figure 6) Figure 6. Operating the LCD keyboard drawer www.raloy.com...

  • Page 16: Rws119 (Single Console) - Usb Server Connection

    Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way. www.raloy.com...

  • Page 17: Rw119 (Single Console) - Ps/2 Server Connection

    Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way. www.raloy.com...

  • Page 18: Rw119 (Single Console) - Usb Server Connection

    Before attempting to connect anything to the LCD keyboard drawer, we suggest turning off the power to all devices before connecting them. Apply power to connected devices again only after the LCD keyboard is receiving power. The company is not responsible for damage caused in this way. www.raloy.com...

  • Page 19: Chapter 2 Operation

    Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital & video connection (DVI-D and video options only) www.raloy.com...

  • Page 20: On-Screen Menu

    To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute Misc: To enter into the language, OSD position, graphic mode, OSD time, ratio, reset and timer www.raloy.com...

  • Page 21: Chapter 3 Standard Specifications

    Keyboard & mouse Full size keyboard built-in touch-pad / trackball touchpad / trackball Graphic Input DVI-D, S-Video & BNC input DC Power DC power input with 12V, 24V, 48V selection Environmental Operation 0˚ to 50˚C Degree -5˚ to 60˚C Degree Storage www.raloy.com...

  • Page 22: Keyboard & Mouse

    Models: RW119 & RWS119 Relative Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random vibration Keyboard & Mouse For RW119 series Supporting layouts N keyboard integrated with Touchpad N keyboard integrated with trackball www.raloy.com...
  • Page 23 Models: RW119 & RWS119 www.raloy.com...

  • Page 24: Keyboard & Mouse (Continued)

    104 key notepad keyboard with full numerical pad and SUN function  USB interface NS keyboard integrated with trackball  Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help  104 key notepad keyboard with full numerical pad and SUN function  USB interface www.raloy.com...

  • Page 25: How To Use "Ns" Keyboard

    Three Audio / Display keys are located in the upper-right corner of the NS keyboard:  Audio: Mute, decrease in volume and increase in volume.  Display: Degauss, decrease contrast and increase contrast.  Please ask your supplier for full details www.raloy.com...

  • Page 26: Chapter 4 Optional Specifications

    “RWS” series is for Matrix & Combo KVM only. DVI-D Option 3-in-1 VGA KB mouse DVI-D console port Remarks:  Package includes 1 x 6ft DVI-D cable BNC + S-Video Option 3-in-1 VGA KB mouse S-Video console port Remarks:  Package includes 1 x 6ft S-Video cable www.raloy.com...

  • Page 27: Audio Option

    Models: RW119 & RWS119 Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Remarks:  Audio input is 35mm audio plug  The speaker shares the same power with LCD. www.raloy.com...

  • Page 28: Dc Power Options

    50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Efficiency Remarks:  Package does not include power cord and AC power adapter www.raloy.com...

  • Page 29: Chapter 5 Troubleshooting

    In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually www.raloy.com...

  • Page 30: Chapter 6 Dimensions

    43 lb The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. www.raloy.com...
  • Page 31 Models: RW119 & RWS119 Copyright 2009 Raloy All rights reserved. www.raloy.com...
