Power Flued Flamefire Space Heater
These components shall be installed in accordance with:
• Manufacturer's Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS 5601
• Local Regulations and Municipal Building Codes
THESE COMPONENTS MUST BE INSTALLED, SERVICED AND REMOVED BY AN AUTHORISED PERSON!
ONLY THE FLUE SYSTEM COMPONENTS SPECIFIED IN THIS MANUAL MUST BE USED. COMPONENTS
NOT SPECIFIED IN THIS MANUAL, WHETHER MANUFACTURED BY RINNAI OR OTHERWISE, ARE NOT
COMPATIBLE AND "MUST NOT" BE USED!

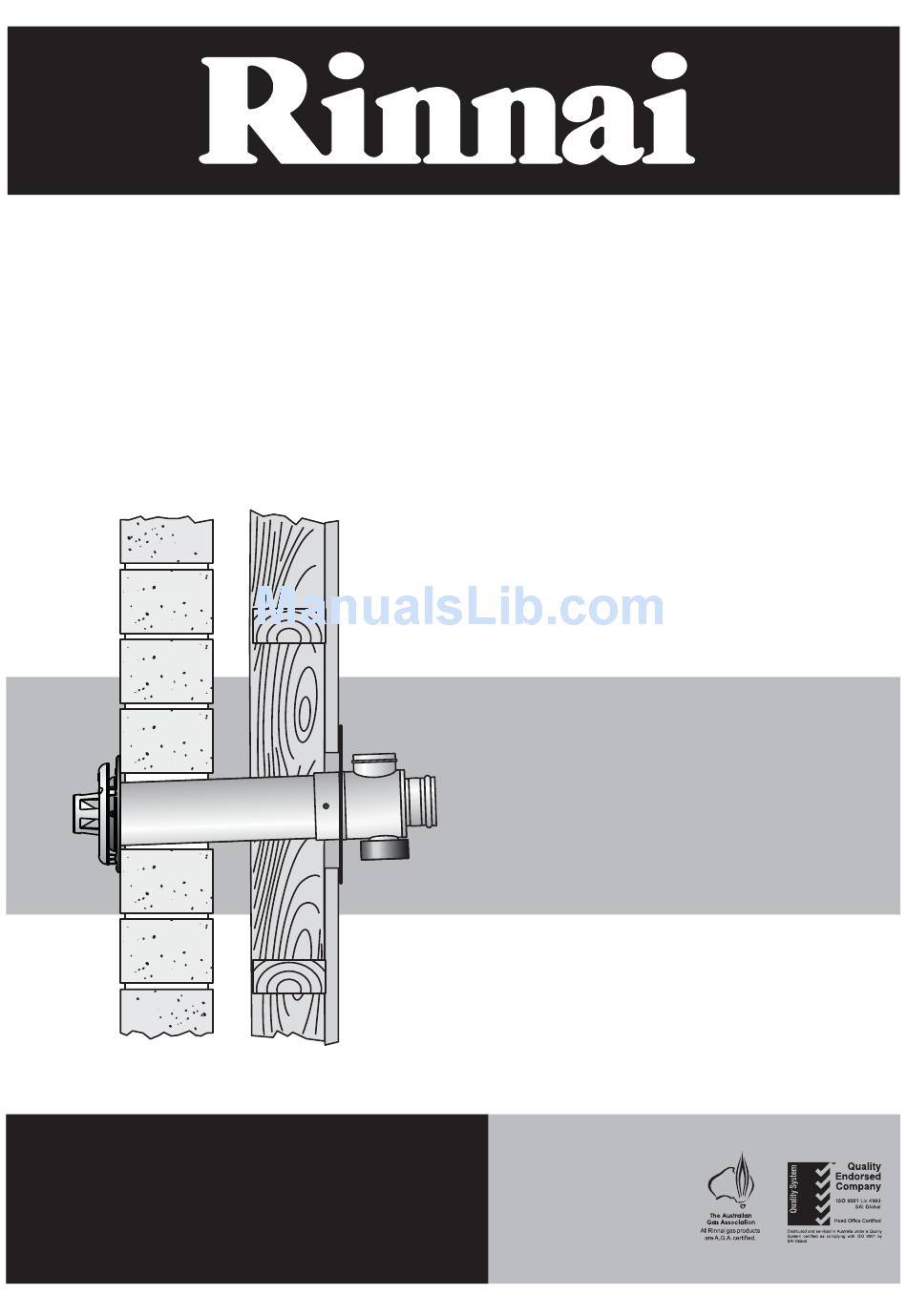

Co-axial Flue System
Installation Manual
To Suit Model:
Power Flued Flamefire
Aspiration RHFE-750ETR
Advertisement
Table of Contents
Related Manuals for Rinnai RHFE-750ETR
Summary of Contents for Rinnai RHFE-750ETR
-
Page 1: Installation Manual
THESE COMPONENTS MUST BE INSTALLED, SERVICED AND REMOVED BY AN AUTHORISED PERSON! ONLY THE FLUE SYSTEM COMPONENTS SPECIFIED IN THIS MANUAL MUST BE USED. COMPONENTS NOT SPECIFIED IN THIS MANUAL, WHETHER MANUFACTURED BY RINNAI OR OTHERWISE, ARE NOT COMPATIBLE AND “MUST NOT” BE USED! -
Page 2: Table Of Contents
CONTACT INFORMATION ..............22 The Rinnai Aspiration (RHFE-750ETR) Co-axial flue is certified as part of the Aspiration Flame Fire Heater. -
Page 3: Conventions Used In This Manual
DO NOT instructions will void the warranty of an appliance and may cause injury or death. NOTE / IMPORTANT Important notes or general hints and guides provided to ease the installation. CAUTION Caution notes and or warnings that MUST BE observed for safe and correct installations. Rinnai Australia ASP Flue Installation Manual... -
Page 4: Regulations, Clearances & General Information
• Local & Municipal building codes. • Any other relevant Statutory Regulation. • Rinnai Energysaver space heaters when correctly installed with Rinnai approved flue components are room- sealed appliances and no internal ventilation is required. • Rinnai Energysaver space heaters are fan-assisted. Therefore the fan assisted flue clearance dimensions from AS5601 extract shown on this page must be used. -
Page 5: Flue Transition Connections
Use ONLY the supplied silicone based “O Ring” seal lubricant. DO NOT use petroleum based lubricants such as petroleum jelly. Petroleum jelly or similar CAUTION petroleum based lubricants will cause deterioration of the “O” ring seals. Rinnai Australia ASP Flue Installation Manual... -
Page 6: Installation Configurations
INSTALLATION CONFIGURATIONS The following configurations are currently available. For alternative configurations contact Rinnai. DIRECT/EXTENDED Components Option A (Direct) Option B (Direct Extended) Direct Flue Kit 750 ASPDFK Direct Flue Kit ASPDFK Co-Ax Pipe 900mm (Optional) # ESPIPE900 EXTERNAL WALL Components... - Page 7 • DIRECT EXTENDED • UNDER FLOOR • SIDEWAYS When cutting the flue transition for joining to other components the minimum total length is not to be less than 300mm! EXTERNAL DIRECT WALL EXTENDED SIDEWAYS Rinnai Australia ASP Flue Installation Manual...
-
Page 8: Wall Penetrations
MUST BE aligned accurately in the horizontal plane, however the penetration can be plus or IMPORTANT minus 25mm in the vertical plane (see detail AA). 25mm (See detail AA) 100mm Detail AA 25mm 378mm from Centre-Line Rinnai Australia ASP Flue Installation Manual... -
Page 9: Flue Components
Pipe ESWTERM ESWFG Terminal External Wall Plate Flue Terminal 22mm Flue Guard Mounting/Securing Screws Wall ESWTKIT Wall Clip Clip External Wall Plate (Wall Terminal Kit) 22mm Pipe Spacer Flue Outlet Grill Mounting/Securing Screws Rinnai Australia ASP Flue Installation Manual... -
Page 10: Flue Component Assembly
Assemble Wall Terminal. Finalise Installation & Commissioning Of Heater. Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The Direct flue kit 750 (ASPDFK) is suitable for walls up to 385mm thick. ASPDFK can be cut to length to suit wall thicknesses less than 385mm thick. -
Page 11: Creating A "Direct Extended" Flue Installation
Finalise Installation & Commissioning of Heater. up to 6.5 metres long! Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The Direct flue kit 750 (ASPDFK) is suitable for walls up to 385mm thick. For wall thicknesses greater than 385mm Co-ax Pipe(s) (ESPIPE900) can be fastened onto ASPDFK to extend the flue length. -
Page 12: Creating An "External Wall" Flue Installation
Finalise Installation & Commissioning of Heater. a - f Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The creation of the horizontal section of flue installation is the same as creating a DIRECT or DIRECT EXTENDED flue installations with the following exceptions: The direction of horizontal fall of the flue pipe is reversed. - Page 13 9. Follow steps 6 through 11 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater and complete the installation and commissioning of the heater in accordance with these.
-
Page 14: Creating A "Internal Wall" Flue Installation
Flue Installation (As Required). Finalise Installation & Commissioning Of Heater. Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The Internal-Wall vertical flue installation is installed against an internal wall within a false fire place or other suitable cavity and is run vertically upwards to the termination point. -
Page 15: Creating A "Sideways" Flue Installation
Direct Extended Flue Installations (As Required). Finalise Installation & Commissioning Of Heater. Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The Sideways flue installation can run along the left or right hand side of the internal wall behind the heater. When considering the location of the heater due care must be taken to ensure that the flue path is free of obstructions such as studs, noggins, joists, braces, and electricals etc. - Page 16 10. Follow steps 6 through 11 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater and complete the installation and commissioning of the heater in accordance with these.
-
Page 17: Creating An "Under Floor" Flue Installation
(1) ESBEND (1 x 90°)! Follow steps 1 through 5 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater. The Down & Out flue option allows for a Flue Adaption Kit 750 (ASPKIT03) to face downwards and the flue to be run vertically though a hole in the floor, and then horizontally to a suitable location outside. - Page 18 9. Follow steps 6 through 11 from the chapter “Heater Installation” in the “Rinnai ASPIRATION Operation / Installation Manual” supplied with the heater and complete the installation and commissioning of the heater in accordance with these.
-
Page 19: Cutting ~ Aspdfk, Espipe900 & Esroofcowl
Both the inner and outer pipes of all internal horizontal components MUST BE secured with rivets or screws. The joints of PVC outer pipes that are exposed to an outside environment MUST CAUTION BE sealed with an appropriate PVC solvent. Rinnai Australia ASP Flue Installation Manual... -
Page 20: Assembling Wall Terminal ~ Aspdfk & Espipe900
For the on wall terminal it is CRITICAL that the inner pipe components are secured with rivets or screws and that the joints of PVC outer pipes are sealed with an appropriate PVC solvent. CAUTION Rinnai Australia ASP Flue Installation Manual... -
Page 21: Component Assembly & Connection ~ Esbend
When connecting an ESROOFCOWL to other flue components use the same methods as described for connecting ESPIPE900 and observe the clearance requirements detailed in the section “REGULATIONS, CLEARANCES & GENERAL INFORMATION” on page 2. Rinnai Australia ASP Flue Installation Manual... -
Page 22: Connecting Heater Exhaust & Air Supply
The rubber cap (when supplied) is designed to fit both the left and right hand combustion air inlet and MUST cover the air inlet not in use. Rinnai Australia ASP Flue Installation Manual... -
Page 23: Connecting Condensate Drain Tube To Heater
Installation Of Condensate Tray Place the condensate tray into the heater “short end first” making sure that the tray is centred under the end of the condensate tube that was installed in step 2. Rinnai Australia ASP Flue Installation Manual... -
Page 24: Contact Information
(09) 257 3800 Fax: (09) 257 3899 Email: info@rinnai.co.nz Websites: www.rinnai.co.nz and www.rinnai-tradesmart.co.nz Rinnai is constantly improving its products and as such specifications are subject to change or variation without notice. Rinnai New Zealand Arriva Flue Installation Manual: 10726-B (02-10)
