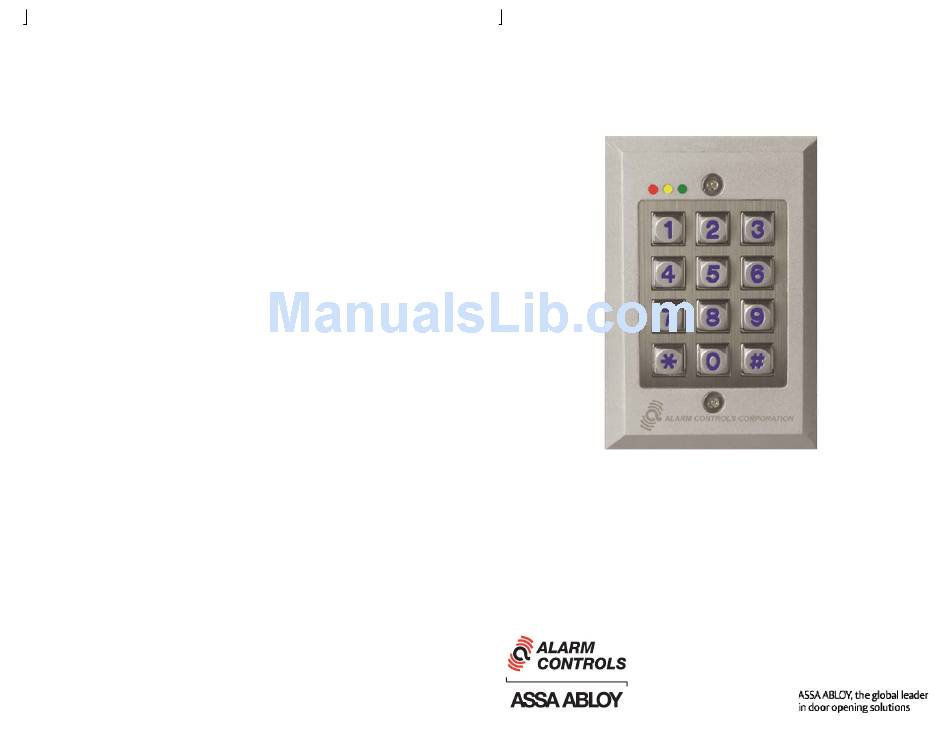

WEATHERPROOF DIGITAL KEYPAD
Model KP-200 is a self-contained vandal resistant digital
keypad. This dual-relay output keypad is suitable for
residential, industrial, and commercial installations. It is
compatible with all electric locking devices. Durable backlit
metal keys and a rugged metal housing protect the keypad
from harsh environments.
KP-200 Rev. C 5/14
MODEL KP-200
VANDAL RESISTANT
OPERATING INSTRUCTIONS
Alarm Controls
19 Brandywine Drive
Deer Park, New York 11729
(800) 645-5538
www.alarmcontrols.com
1
Advertisement
Table of Contents
Related Manuals for Alarm Controls Corporation KP-200
Summary of Contents for Alarm Controls Corporation KP-200
- Page 1 MODEL KP-200 VANDAL RESISTANT WEATHERPROOF DIGITAL KEYPAD OPERATING INSTRUCTIONS Model KP-200 is a self-contained vandal resistant digital keypad. This dual-relay output keypad is suitable for residential, industrial, and commercial installations. It is compatible with all electric locking devices. Durable backlit metal keys and a rugged metal housing protect the keypad from harsh environments.
- Page 2 SPECIFICATIONS INSTALLATION Operating Voltage 12 or 24 Volts AC or DC Auto-sensing 100 mA maximum @12VDC Active Current Draw 120 mA maximum @24VDC 10 mA maximum @12VDC Idle Current Draw 22 mA maximum @24VDC Output 1 Contact Rating 5A@28VDC, Single Pole Double Throw NPN Open Collector Ic max: 100mA sink, Vc Output 2 max: 24VDC...
- Page 3 INTER-LOCK SYSTEM WIRING DIAGRAM WIRING 12 or 24 AC or DC. AC power can be connected Power Input without observing polarity requirement. Connect DC (12-24V AC/DC) power with polarity as indicated. SPDT dry contacts. Outputs can be programmed for Output 1 latching or momentary operation.
- Page 4 KEYPAD INITIATION BASIC WIRING DIAGRAM Keypad initiation must be done at the initial turn-on of the keypad. Use N/C contact for magnetic locks and fail-safe 1. Connect power to the keypad. electric strikes. 2. Put the keypad in Program Mode by entering “0 0 0 0 ”. The keypad will Use N/O contact for fail-secure electric strikes.
- Page 5 DIRECT ACCESS TO PROGRAMMING (DAP) OPERATION If the Installer Code is forgotten, the Direct Access to Programming (DAP) utility Enter a valid User Code to activate the associated Output. The keypad must be can be used to put the keypad in Programming Mode. in standby mode (yellow LED blinking).
- Page 6 DOOR FORCED OPEN ALARM (CONTINUED) KEYPAD SILENT MODE The keypad beeper can be silenced. To disable the Door Forced Open Alarm feature - 1. Put the keypad in Program Mode by entering the Installer Code followed by 1. Put the keypad in Program Mode by entering the Installer Code followed by the “”.
