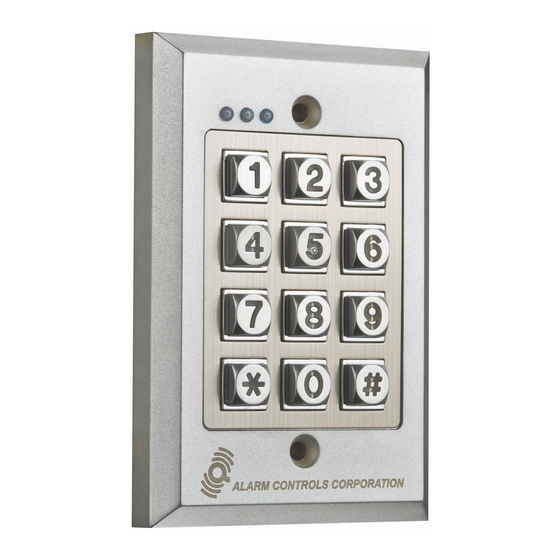

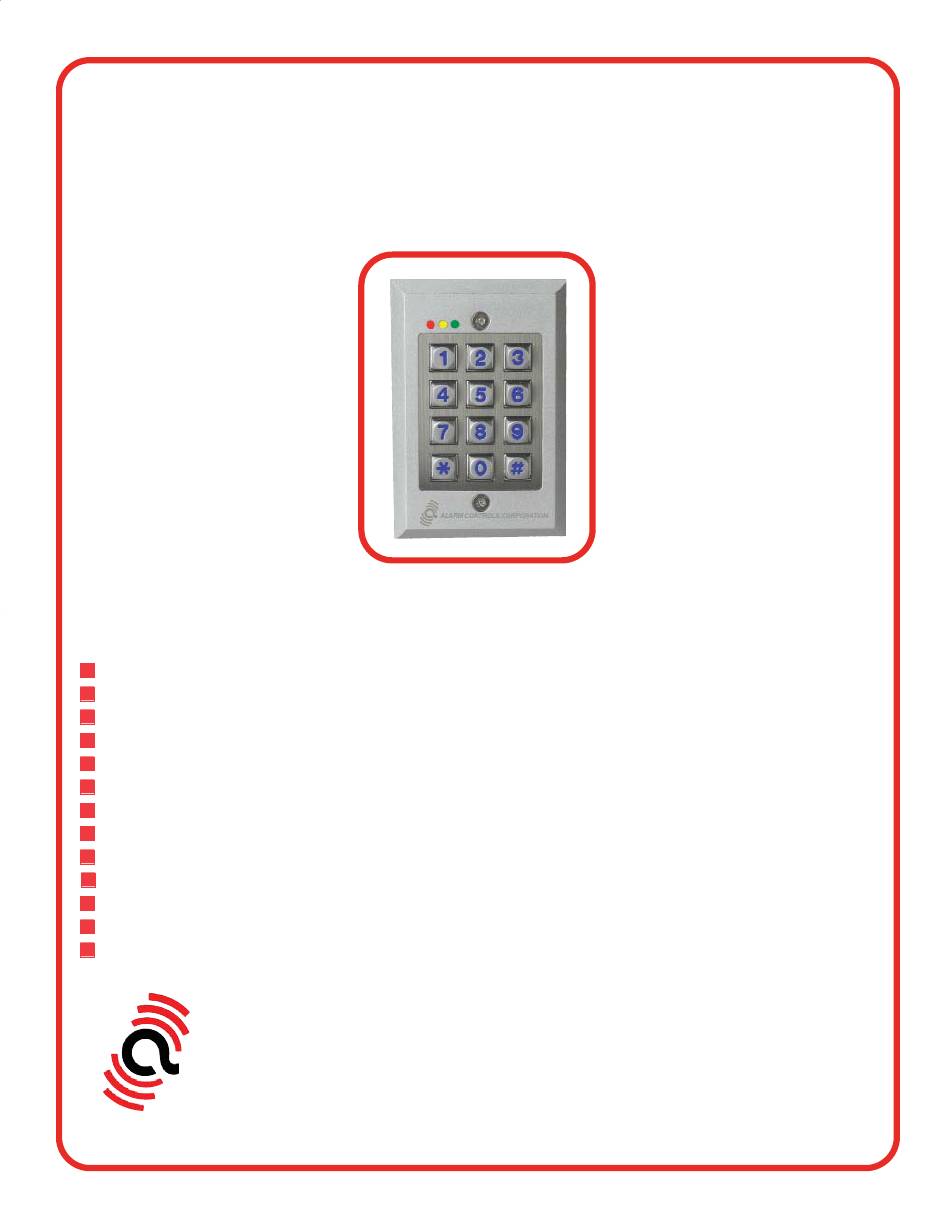

MODEL KP-200
VANDAL RESISTANT & WEATHERPROOF
FLUSH MOUNT DIGITAL KEYPAD
DESIGNED FOR ACCESS CONTROL APPLICATIONS
OPERATES ON 12 OR 24 VOLTS AC/DC, AUTO VOLTAGE SENSING
FULLY PROGRAMMABLE FROM THE KEYPAD
CONFORMS TO IP66 CODE, DUSTPROOF AND WATERPROOF
VANDAL PROOF DIE CAST HOUSING WITH STAINLESS STEEL FACEPLATE
FLUSH MOUNT, MOUNTS ON STANDARD SINGLE GANG ELECRTICAL BOX
100 USER CODES WITH CODE LENGTHS FROM 4 TO 8 DIGITS
BACKLIT KEYS FOR VISIBILITY IN DARK AREAS, BACKLIGHTING IS ADJUSTABLE
DIE CAST METAL KEYS WITH AUDIBLE AND VISUAL KEY PRESS
TWO PROGRAMMABLE OUTPUTS, ONE 5 AMP. RELAY, ONE TRANSISTOR OUTPUT
BUILT-IN TAMPER SWITCH, BUILT-IN BUZZER
REQUEST TO EXIT INPUT WITH ADJUSTABLE RELAY TIME
RED, YELLOW AND GREEN LEDS INDICATE KEYPAD STATUS
LIFETIME LIMITED WARRANTY
ALARM CONTROLS CORPORATION
DEER PARK, NEW YORK
11729
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alarm Controls Corporation KP-200
Summary of Contents for Alarm Controls Corporation KP-200
- Page 1 MODEL KP-200 VANDAL RESISTANT & WEATHERPROOF FLUSH MOUNT DIGITAL KEYPAD DESIGNED FOR ACCESS CONTROL APPLICATIONS OPERATES ON 12 OR 24 VOLTS AC/DC, AUTO VOLTAGE SENSING FULLY PROGRAMMABLE FROM THE KEYPAD CONFORMS TO IP66 CODE, DUSTPROOF AND WATERPROOF VANDAL PROOF DIE CAST HOUSING WITH STAINLESS STEEL FACEPLATE...
- Page 2 MODEL KP-200 DIGITAL KEYPAD ACCESS CONTROL APPLICATIONS SPECIFICATIONS OPERATING VOLTAGE: 12 OR 24 VOLTS AC/DC, AUTO VOLTAGE SENSING ACTIVE CURRENT DRAW : 100 MA. @ 12 VOLTS, 120 MA. @ 24 VOLTS IDLE CURRENT: 10 MA. MAX. @ 12 VOLTS, 22 MA. MAX. @ 24 VOLTS OUTPUT 1 CONTACT RATING: S.P.D.T., 5A.
- Page 3 SELF-CONTAINED DIGITAL VANDAL RESISTANT/WEATHERPROOF FLUSH MOUNT BACKLIT ACCESS CONTROL KEYPAD MODEL KP- 200 OPERATING INSTRUCTIONS ALARM CONTROLS CORPORATION 19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 WWW.ALARMCONTROLS.COM...
-
Page 4: Important Features
The KP-200 is a self-contained vandal resistant weatherproof digital keypad with field proven reliability that operates on 12 or 24 volts AC or DC. This dual output keypad is suitable for residential, industrial and commercial installations and is com- patible with all electric locking devices. Durable backlit metal keys and rugged metal housing protect the keypad from harsh environments and high traffic areas. - Page 5 KEYPAD TERMINALS FRONT OF KEYPAD KP-200 FULL QUASI LEDS BACKLIT JUMPER ON OFF TAMPER INTER LOCK O/P 1 INHIBIT DOOR SEN. ( ) GND EG IN DU OUT O/P 2 N.O. NOTE: LED INDICATORS REMOVE THE FOUR CORNER SCREWS TO...
- Page 6 KEY ACT (KEY ACTIVE OUTPUT) THIS IS AN NPN TRANSISTOR OPEN COLLECTOR OUTPUT THAT SWITCHES TO GROUND, (-) FOR 10 SECONDS WITH EACH KEY PRESS. THIS CAN BE USED TO TURN ON A BUZZER, TURN ON LEDS OR OPERATE A LOW CURRENT RELAY. THE RATING OF THIS OUTPUT IS LIMITED TO Ic MAX.
-
Page 7: Led Indicators
LED INDICATORS RED LED ON WHEN OUTPUT 2 IS ACTIVE YELLOW LED MONITORS POWER INPUT AND KEY PRESS, (SEE CHART BELOW) GREEN LED ON WHEN OUTPUT 1 IS ACTIVE YELLOW LED INDICATOR AND TONES THE YELLOW LED AND BUILT-IN BUZZER GIVE THE FOLLOWING SIGNALS AND TONES LED SIGNALS TONES STATUS... -
Page 8: Deleting A User Code
STEP 2 KEYPAD INITIATION MODE The Keypad Initiation Mode 1 allows 100 user codes in code lengths from 4 to 8 digits with THIS PROCEDURE MUST BE FOLLOWED ! more than 100 million code combinations. 8 9 0 1 To activate Keypad Initiation Mode enter then press the key. -
Page 9: Programming Options
Output 2 in Momentary Mode Press the keys then enter the relay “on” time. This time can be from 1 to 999 sec. then press the key. The Yellow Led will flash twice and you will hear two beeps. The Momentary Mode for Output 2 has been entered. -
Page 10: Auto Or Manual
CODE ENTRY MODES AUTO OR MANUAL When the Keypad is programmed for Auto Entry mode the key that follows the entered Code Number is not required. In this mode the User Code must be the same length as the Installer Code and the code length can be from four to eight digits. To program the Keypad for Auto Entry press the keys then press the key then... -
Page 11: Application Examples
APPLICATION EXAMPLES BASIC WIRING DIAGRAM OF A MAGNETIC LOCK AND ELECTRIC DOOR STRIKE MODEL KP-200 12 OR 24 VOLTS AC OR DC POWER SUPPPLY AC CAN ONLY BE USED WITH AC ELECTRIC STRIKES MAGNETIC LOCK ELECTRIC STRIKE WIRING ELECTRIC STRIKE... - Page 12 BASIC WIRING OF A MAGNETIC LOCK AND ELECTRIC DOOR STRIKE WITH DOOR LOCK INHIBIT MODEL KP-200 12 OR 24 VOLTS AC OR DC POWER SUPPPLY AC CAN ONLY BE USED WITH AC ELECTRIC STRIKES MAGNETIC LOCK ELECTRIC STRIKE WIRING ELECTRIC STRIKE...
- Page 13 BASIC WIRING OF AN INTER-LOCK SYSTEM USING TWO KEYPADS PAGE 10...
- Page 14 APPLICATIONS FOR THE AUXILIARY TERMINALS NORMALLY-CLOSED TAMPER SWITCH The Tamper Switch is Normally-Closed when the Keypad is installed in the back box and securely fastened with the tamper-proof screws. 24 HOUR Connect these terminals to a 24 hour zone of an alarm panel if required. ZONE DOOR SENSOR A normally-closed door contact will enable the...
- Page 15 DURESS OUTPUT CURRENT NOT TO EXCEED 100 MA. ( - ) The Duress Output will switch to ground, (-), when the Duress Code is entered. This output can be used to turn on a LED or piezo buzzer. This output can be connected to a 24 hour zone of an alarm system.
- Page 16 DEFINITIONS DRY CONTACTS Dry contacts do not have voltage connected to them. The Relay Output contacts in the KP-400 Keypad are dry contacts. N/C CONTACT The contact is closed in the static state and open in the active state. The contact is open when the circuit is active.
-
Page 17: Audible Indicators
ALARM CONTOLS CORPORATION PRODUCT LINE U.L. LISTED MAGNETIC LOCKS MAGNETIC LOCK MOUNTING BRACKETS MAGNETIC LOCK DRESS-UP COVERS MAGNETIC LOCK DRILL JIGS SELF-CONTAINED DIGITAL KEYPADS U.L LISTED REQUEST TO EXIT STATIONS EXPLOSION-PROOF REQUEST TO EXIT STATIONS MORTISE CYLINDER STATIONS VANDAL RESISTANT REQUEST TO EXIT STATIONS REQUEST TO EXIT STATIONS WITH BUILT-IN TIME DELAY RELAYS AND RELAY BASES TIME DELAY MODULES... - Page 18 12/09 REV. A...
