Instruction Manual
NOTE: Y7568 comes with one Child Unit, one Parent Unit, one Parent Unit antenna and two
AC adapters. Y7569 comes with one Child Unit, two Parent Units, two Parent Unit antennas
and three AC adapters. Except for setting up (and using) the second Parent Unit, instruc-
tions for both models are the same.
Before returning this product to the store for any reason,
Often, we can provide helpful tips and instructions to resolve
Check our website: www.thefirstyears.com for the most up-to-date
instruction manual as well as tips and troubleshooting advice.
Please retain this instruction sheet for future reference as it contains important information.
please contact our Customer Care at
1-800-704-8697 or www.thefirstyears.com
your problem quickly over the phone.
Y7568, Y7569
AUDIO MONITOR
Advertisement
Table of Contents
Related Manuals for The First Years Crisp & Clear Y7568
Summary of Contents for The First Years Crisp & Clear Y7568

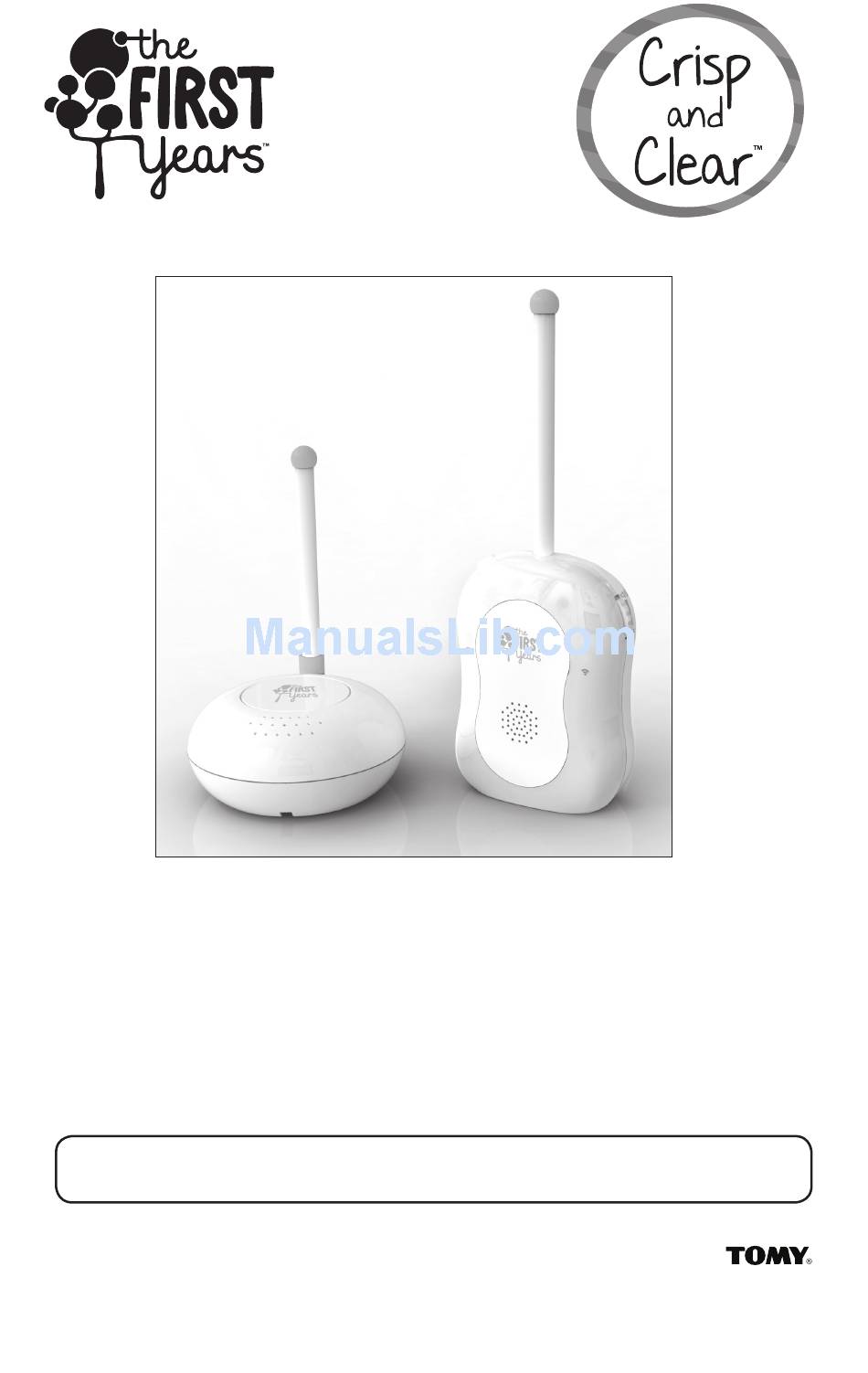

- Page 1 Instruction Manual AUDIO MONITOR NOTE: Y7568 comes with one Child Unit, one Parent Unit, one Parent Unit antenna and two AC adapters. Y7569 comes with one Child Unit, two Parent Units, two Parent Unit antennas and three AC adapters. Except for setting up (and using) the second Parent Unit, instruc- tions for both models are the same.
-
Page 2: Safety Instructions
Crisp & Clear ™ Audio Monitor SAFETY INSTRUCTIONS This symbol is intended to warn the user of potential safety hazards. This symbol is intended to alert the user to a potential risk of electric shock and other electrical safety issues. WARNING: • Strangulation Hazard-Children have STRANGLED in cords. - Page 3 English • Do not tamper with the plug under any circumstances. • Power Source – This product should be connected only to the power supply provided. • Cleaning —Before cleaning, be sure to unplug. Clean only as recommended in these instructions. • Object and Liquid Entry—Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through the openings.
-
Page 4: Parts Diagram
Crisp & Clear ™ Audio Monitor Parts Diagram Parent Unit High performance antenna Low battery indicator Sound level lights Two channel A/B switch High quality speaker Volume and power switch Belt clip Power input jack Child Unit High performance antenna Super sensitive microphone Two channel A/B switch Wall mount... -
Page 5: Quick Start Instructions
English Quick Start Instructions Please read the safety instructions on pages 2-3. Set up the Parent Units • Screw the antenna into the Parent Unit. • Battery compartment is located on the back of unit. Unscrew to release cover lock. • Install three AA batteries. • O r, plug one of the AC adapters provided into each Parent Unit. Set up the Child Unit • P lace the unit near your child (within 6 feet, but no closer than 3 feet). • Position the antenna straight up. • Plug in the AC adapter provided. • Slide the channel switch to A or B. • P ress the ON/OFF button to turn on the unit. Use the Monitor (Parent Unit) • S lide the channel switch to the same channel as the Child Unit (A or B). -
Page 6: Monitor Setup
Crisp & Clear ™ Audio Monitor Monitor Setup Parent Unit(s) To operate with batteries: 1. Screw the antenna into the Parent Unit. 2. Loosen screw to release the battery compartment cover. Then lift the cover off (for easier access, rotate belt clip away from battery cover.) 3. I nsert three AA batteries. Position them so the + and - contacts are aligned with the corresponding contacts on the battery compartment. -
Page 7: Monitor Use
English Monitor Use 1. Slide the channel A/B switch on the Child Unit to either A or B. Turn the unit on by pressing the ON/OFF button. 2. Turn the Parent Unit ON/OFF by rotating the volume switch. 3. Slide the channel selector switch on the Parent Units to the same channel as the Child Unit (A or B). -
Page 8: Troubleshooting
Crisp & Clear ™ Audio Monitor Troubleshooting Problem Possible Cause Solution No power Parent Units: Unit is not turned on Turn the unit on Batteries are dead Replace batteries or plug in adapter (See “Monitor Setup" on page 6) Child Unit: Unit is not turned on Press ON/OFF button Adapter not plugged in Plug in adapter... - Page 9 English Troubleshooting Problem Possible Cause Solution Noisy feedback Units too close together Be sure Parent Unit is at least (high-pitched “screech”) 3 feet from Child Unit Volume too high Lower volume setting on Parent Unit No sound or very weak Unit is getting little or no Parent Unit: Replace batteries or reception...
-
Page 10: Maintenance
Crisp & Clear ™ Audio Monitor Maintenance WARNING Keep batteries away from children. Parents are urged to exercise care in the storage, use and disposal of all batteries. To avoid battery leakage: • Do not use rechargeable batteries; • Batteries must be removed and inserted under adult supervision; • Non-rechargeable batteries are not to be recharged; • Batteries are to be inserted with the correct polarity; • Exhausted batteries are to be removed from the unit and disposed properly;... - Page 11 English Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 12: Warranty
Crisp & Clear Audio Monitor ™ Warranty Our Limited Warranty and Warranty Period When we use the terms “we,” “us” and “our,” we are referring to TOMY, and when we use the terms “you” and “your” we mean the original end-user customer. Our products are guaranteed to be free from defects in material and workmanship under normal and intended use for a period of 90 days from the date of your purchase.
