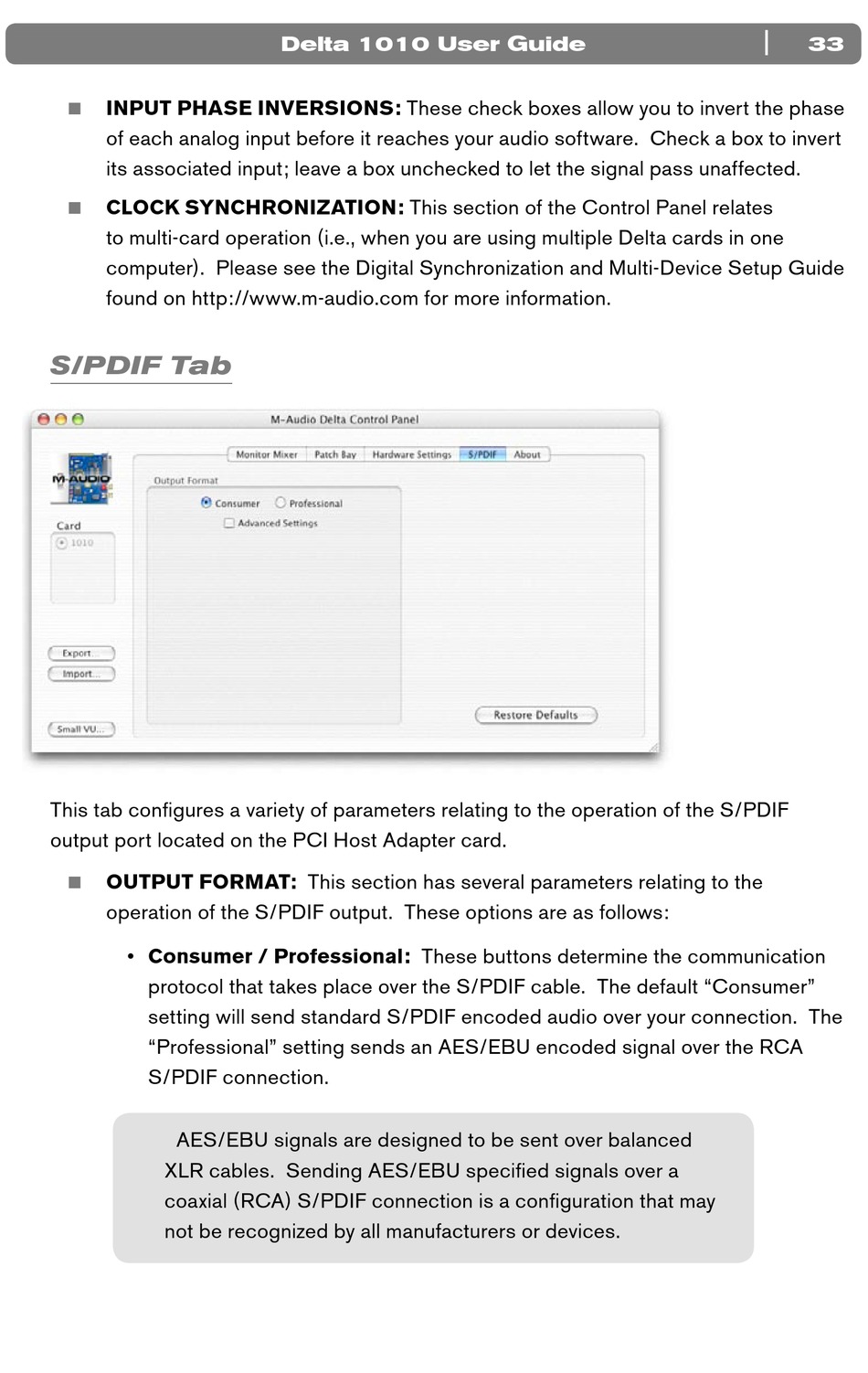

INPUT PHASE INVERSIONS: These check boxes allow you to invert the phase

of each analog input before it reaches your audio software. Check a box to invert

its associated input; leave a box unchecked to let the signal pass unaffected.

CLOCK SYNCHRONIZATION: This section of the Control Panel relates

to multi-card operation (i.e., when you are using multiple Delta cards in one

computer). Please see the Digital Synchronization and Multi-Device Setup Guide

found on http://www.m-audio.com for more information.

S/PDIF Tab

This tab conﬁgures a variety of parameters relating to the operation of the S/PDIF

output port located on the PCI Host Adapter card.

OUTPUT FORMAT: This section has several parameters relating to the

operation of the S/PDIF output. These options are as follows:

• Consumer / Professional: These buttons determine the communication

protocol that takes place over the S/PDIF cable. The default "Consumer"

setting will send standard S/PDIF encoded audio over your connection. The

"Professional" setting sends an AES/EBU encoded signal over the RCA

S/PDIF connection.

AES/EBU signals are designed to be sent over balanced

XLR cables. Sending AES/EBU speciﬁed signals over a

coaxial (RCA) S/PDIF connection is a conﬁguration that may

not be recognized by all manufacturers or devices.
