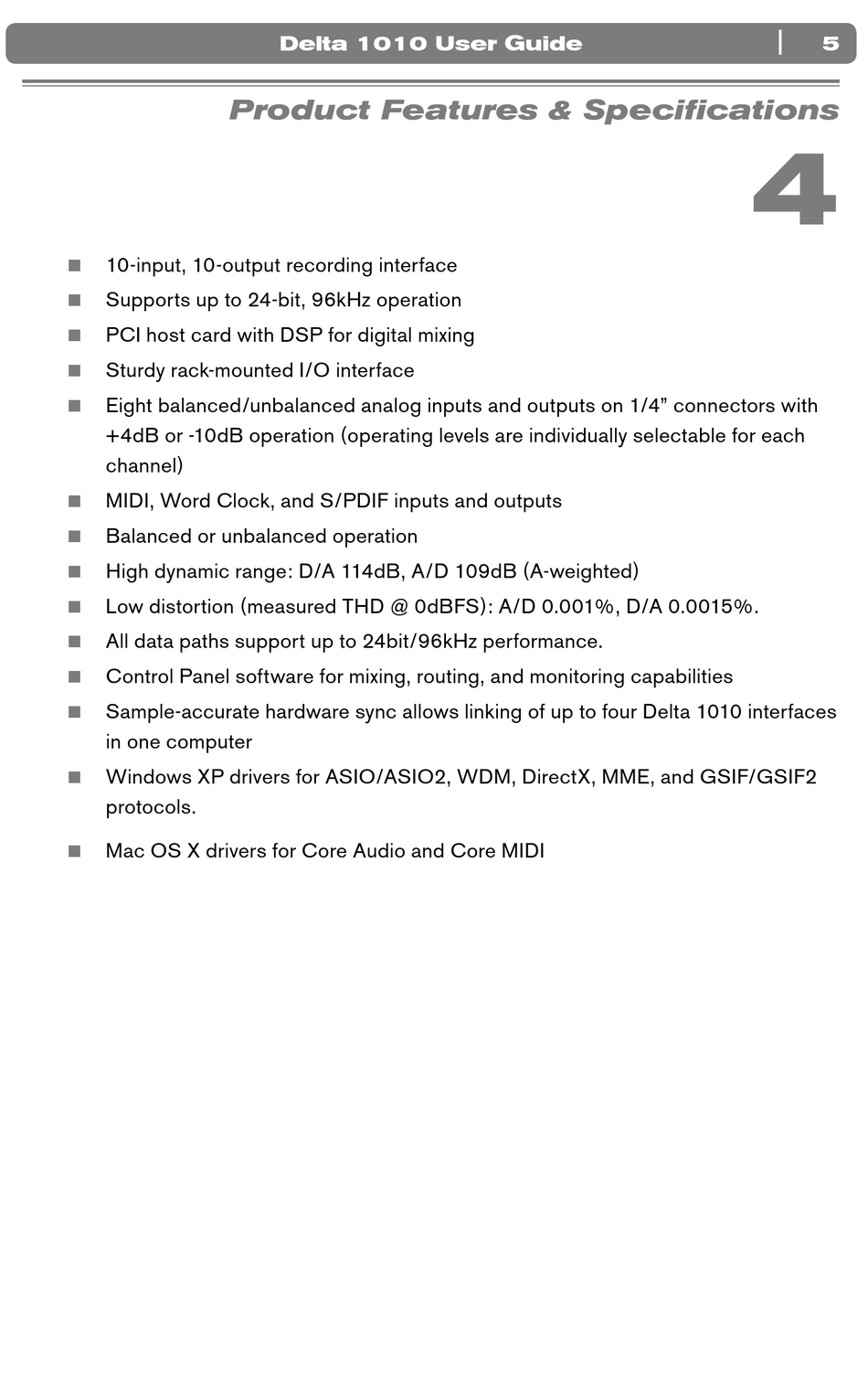

Product Features & Specifications - M-Audio 10 IN 10 OUT PCI DIGITAL RECORDING SYSTEM WITH S/PDIF DELTA 1010 User Manual

10-input, 10-output recording interface
<
Supports up to 24-bit, 96kHz operation
<
PCI host card with DSP for digital mixing
<
Sturdy rack-mounted I/O interface
<
Eight balanced/unbalanced analog inputs and outputs on 1/4" connectors with
<
+4dB or -10dB operation (operating levels are individually selectable for each
channel)
MIDI, Word Clock, and S/PDIF inputs and outputs
<
Balanced or unbalanced operation
<
High dynamic range: D/A 114dB, A/D 109dB (A-weighted)
<
Low distortion (measured THD @ 0dBFS): A/D 0.001%, D/A 0.0015%.
<
All data paths support up to 24bit/96kHz performance.
<
Control Panel software for mixing, routing, and monitoring capabilities
<
Sample-accurate hardware sync allows linking of up to four Delta 1010 interfaces
<
in one computer
Windows XP drivers for ASIO/ASIO2, WDM, DirectX, MME, and GSIF/GSIF2
<
protocols.
Mac OS X drivers for Core Audio and Core MIDI
<
Delta 1010 User Guide
Product Features & Specifications
|
5
4
