Heartway Medical Products P17C User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

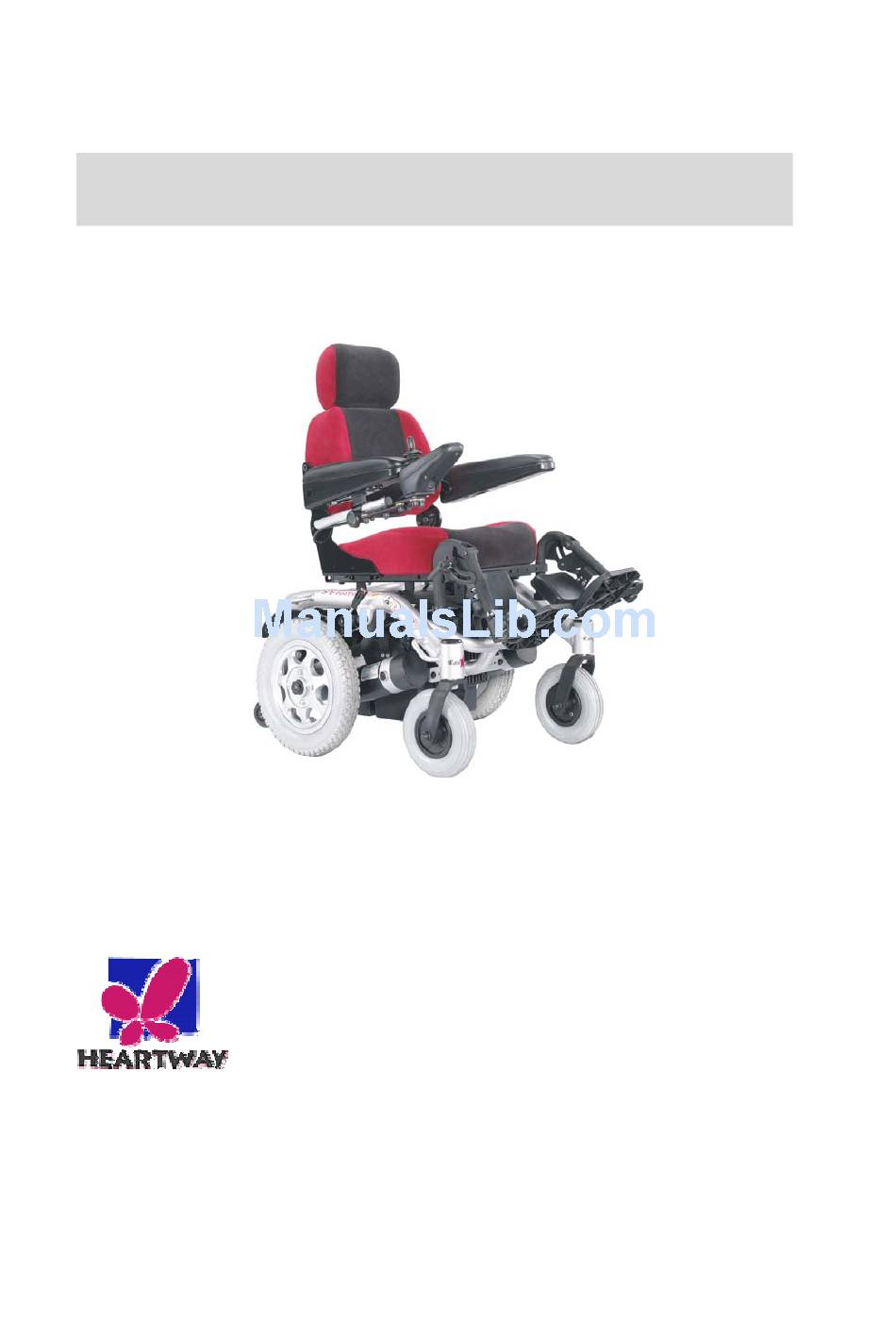

USERS
MANUAL
P17C
HEARTWAY MEDICAL PRODUCTS CO., LTD.
Part no:70030161
1

Advertisement

Table of Contents
loading

Related Manuals for Heartway Medical Products P17C

Summary of Contents for Heartway Medical Products P17C

  • Page 1 USERS MANUAL P17C HEARTWAY MEDICAL PRODUCTS CO., LTD. Part no:70030161...
  • Page 2 COMPONENTS Your power wheelchair is shipped partially dissembled to protect it during shipping. After unpacking, please check whether you have received the following main components as our standard specification (See Fig.1). 1. Main frame with motor 5.Armrest (left) 2. Seat 6.Armrest (Right) 3.

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION Operation of Chair 1. Always ensure that the power is switched off when getting in or out of the wheel- chair. This will eliminate the possibility of accidentally activating the joystick and causing injury to yourself or others. 2.Always check that the drive wheels are engaged (drive mode) before driving.

  • Page 4: Use While Under The Influence Of Medication Or Alcohol

    11. When reaching, bending or leaning while seated on your power chair, make sure that you maintain a stable center of gravity to keep the power chair from tipping. General 12. Always use a seat belt, and keep feet on the footplate at all the time. 13.
  • Page 5 which is interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios and cellular phones. The interference (from radio wave sources) can cause the powered wheelchair to release its brakes, move by itself or move in unintended directions. It can also permanently damage the powered wheelchair’s control system.

  • Page 6: Environmental Conditions

    ENVIRONMENTAL CONDITIONS Environmental conditions may affect the safety and performance of your power wheelchair. Water and extreme temperatures are the main elements that can cause damage and affect performance. A) Rain, Sleet and Snow If exposed to water, your power wheelchair is susceptible to damage to electronic or mechanical components.
  • Page 7 ASSEMBLY INSTRUCTION 1.Installing the Seat (#2) Slide the reclining seat set (#2) into the connection points (both sides) in the Main frame (#1)(See Fig 2), put down the reclining back set and connect the front connection point and make sure that tighten the tension knob in the front connection point.
  • Page 8 Insert the 4pcs M6 bolts (With 2 washers each) into the hole and tighten the bolts and nuts. (See Fig 7). Use the E-clip to fix the footrest angle adjustment tube.(See Fig 8) E-Clip (Fig 7) (Fig 8) Footrest angle adjustment tube 6.Installing controller and connect cables Assemble the controller (#4) on right armrest (#6) bracket with 2 screws.(See Fig 9) There is 1 plug (9 pins) in the other end on the controller.

  • Page 9: Adjustments For Seating Confort

    ADJUSTMENTS FOR SEATING CONFORT To maximize seating comfort, your power wheelchair lets you adjust: →Armrest width →Footrest angle →Controller position →Backrest angle →Headrest height A. Armrest Width Adjustment → Loosen the tension knob → slide the armrest frame to your desired width →...

  • Page 10: Controller Position Adjustment

    C. Controller Position Adjustment → Loosen the T-knob (under the armrest) → Slide the whole set controller to your desired length (See Fig 14) → tighten the T-knob T-Knob Lever (Fig 14) (Fig 15) D. Backrest Angle Adjustment Lift up the lever located the left side of the seat and adjust the backrest position to your desired angle (See Fig 15) Note: There are 5 different angles range when you slightly adjust the backrest to fit yours comfortable seating from the 105°...

  • Page 11: Operation

    OPERATION The power wheelchair is simple to operate. However , we recommend that you read carefully the following instructions to become familiarized with your new vehicle. A Word of Caution: Before you turn the power on, always be aware of the environment that surrounds you to select your desired speed.

  • Page 12: Controller Display

    3.Joystick The joystick controls the direction and speed of your vehicle, pointing the joystick away from the neutral position,(center), will move the vehicle in the direction where the joystick is pointing. The farther away(forward/backward) the joystick is from the neutral position, the faster the vehicle will go. The farther away to the right/ left the joystick is pointing, the sharp the turn of the vehicle will be.

  • Page 13: Free-Wheeling

    be charged immediately. C. Free-Wheeling: Because the motors are designed to engage the electromagnetic brakes when the vehicle is not in use or when the power is OFF, they also have a manual feature that allows them to “free-wheel”. Free-wheeling is accomplished by turning the free-wheeling levers to the free-wheeling position.(See Fig 18) (Fig 18) Warning !

  • Page 14: Main Circuit Breaker

    F. Main Circuit Breaker: The main circuit breakers reset button located near the seat.(Fig 19 ) Breaker (Fig 19) The main circuit breaker monitors the electric current drawn from the battery. It is a safety feature built in your power wheelchair for your extra safety. When the batteries and motors are heavily strained (e.g., from excessive loads),the main circuit breaker will trip to prevent damage to the motor and the electronics.

  • Page 15: Batteries And Charger

    BATTERIES & CHARGER BATTERY We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power wheelchair. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries and are similar in performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick recharge.
  • Page 16 →Disconnect the charger power cord from the wall outlet when the batteries are fully charged. (See Fig 20) Important! Do not use for voltage input except the specified. Make sure your present voltage input (110V or 220V) and adjust manually. (See Fig 21) plug-in controller plug-in wall outlet (Fig 21) (Fig 20)

  • Page 17: Maintenance And Repair

    MAINTENANCE & REPAIR Your power wheelchair is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your HP7C for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. DAILY CHECKS 1.

  • Page 18: Periodical Checks

    replaced or motor damage will result. Warning! Failure to maintain the brushes could void the power wheelchair warranty. o inspect or replace the motor brushes: 1.Unscrew the motor brush caps. (See Fig 22) 2.Remove the brushes. 3.Inspect the brushes for wear. (See Fig 23) 4.Replace the brushes if necessary.

  • Page 19: Diagnosis And Solution

    If you get one of these error codes, contact your local dealer. DIAGNOSIS AND SOLUTION FLASHING LIGHTS The battery needs charging or there is a bad connection to the battery. Check the connections to the battery. If the connect- ions are good, try charging the battery. The left motor has a bad connection.
