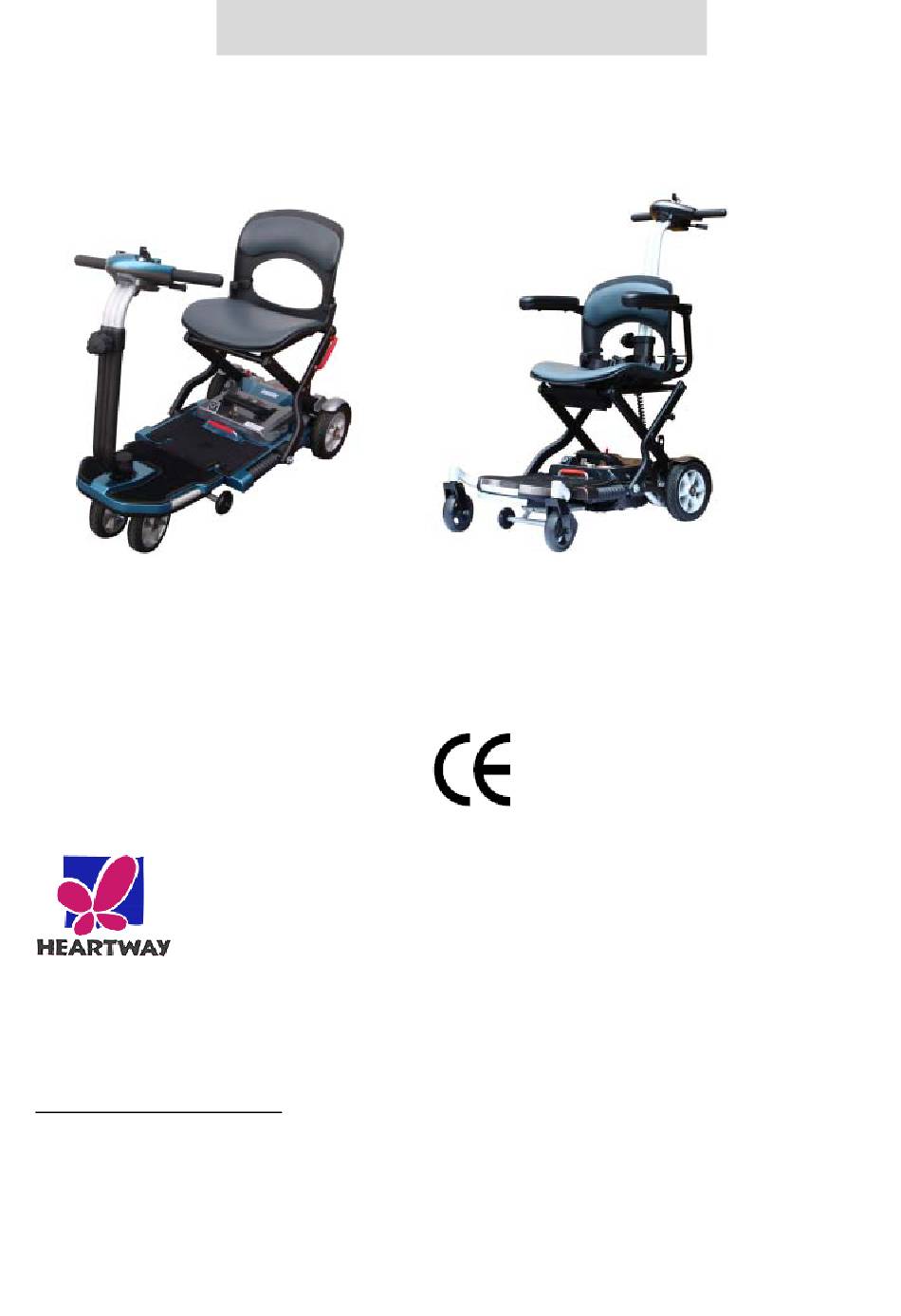

- Page 1 S19-S19T User Manual S19T scooter Electrically powered Class A (EN 12184) HEARTWAY MEDICAL PRODUCTS CO., LTD. NO. 6, ROAD 25, TAICHUNG INDUSTRIAL PARK, TAICHUNG. TAIWAN R.O.C.408 Part Number: 70030279 PUBLISHED: November 16 , 2012...
-
Page 2: Safety Instruction
SAFETY INSTRUCTION General Always use a seat belt, and keep your feet on the scooter Never operate the scooter while you are under the all the time. influence of alcohol. Make sure that there are no obstacles behind you while Never use electronic radio transmitters such as reserving your scooter. - Page 3 Do not attempt to climb curbs greater than limitation Do not leave your hands and legs off the scooter when show on Technical Specification driving. Do not rider your scooter during snow in order to avoid Do not allow unsupervised children to play near this accident on slippery road.
- Page 4 living activities. Consult with your physician if you are taking any medication that may affect your ability to operate your scooter safely. Do not attempt to lift or move a power scooter by any of its removable parts including the armrests, seats or shrouds.
- Page 5 Modifications Heartway Medical Product has designed and engineered power scooters to provide maximum utility. However, under no circumstances should you modify, add, remove, or disable any part or function of your power scooter. Personal injury and damage to the power chair may result. 1.
-
Page 6: Electromagnetic Interference (Emi)
The interference could result in abnormal, unintentional movement and/or erratic control of the vehicle. The United States Food and drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual for all power scooter like the S19-S19T . Power scooters may as susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios, cellular phones and alarm systems of shops. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL WEIGHT CAPACITY 115kgs(250 lbs) SEAT: TYPE/SIZE 16" Fish-on DRIVE WHEEL 200mmx50mm(8"x2") FRONT CASTER (WHEEL) 180mmx40mm(7"x1.6") REAR CASTER (ANTI-TIPPER) Option MAX SPEED 4MPH (6.5KP/H) Li-Battery: 24V 11.5Ah Li-Polymer (14.5 option) BATTERY SPECIFICATIONS Lead-Acid: 12V 12AH X 2 BATTERY RANGE Lithium 20km / Lead-Acid 15 km CHARGER TYPE 2.5Amp,110/240 Volt,Li-ION Charger (4Amp option) - Page 8 S19T MODEL S19T WEIGHT CAPACITY 115kgs(250 lbs) SEAT: TYPE/SIZE 16" Fish-on DRIVE WHEEL 200mmx50mm(8"x2") FRONT CASTER (WHEEL) 5*1-1/2" REAR CASTER (ANTI-TIPPER) Option MAX SPEED 3.8MPH (6KP/H) can upgrade to 5MPH (8KP/H) BATTERY SPECIFICATIONS 24V 11.5Ah Li-Polymer (14.5 option) BATTERY RANGE...
- Page 9 ADJUSTMENT It is very easy to assemble your S19 scooter. Please follow the procedure below. S19 power scooter has aluminum alloy body and can be easily folded to fit in the car for transportation. It also has easy to use controls and adjustable tiller positioning. ...
-
Page 10: Operation Of Control Panel
OPERATION OF CONTROL PANEL The power scooter is simple to operate. However, we recommend that you read carefully the following instructions to become familiarized with your new vehicle. A Word of Caution: Before you turn the power on, always be aware of the environment that surrounds you to select your desired speed. - Page 11 Driving: A) Controller ON/OFF Switch Insert the key to power on the scooter (Remove the key to power off). Swing the finger lever control forward or backward to control the driving direction of the scooter (The finger lever control is located at both sides of the controller and the returning of the finger lever control to its neutral position,(center), will reduce the speed and stop the vehicle by automatically applying the electro-magnetic brakes.
- Page 12 Never free-wheel the motors while operating your vehicle. Always remember to engage the motors before turning the power ON. Do not attempt to disengage the drive motors while seated on your S19 or S19T. Personal injury may result. Ask your attendant for assistance.
-
Page 13: Battery & Charging Instruction
BATTERY & CHARGING INSTRUCTION Lead-Acid Battery We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power scooter. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries and are similar in performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick recharge. Lead-acid batteries should be charged as often as possible. -
Page 14: Charging Instructions
any different type of charger can be hazardous and need the approval of the manufacturer. CHARGING INSTRUCTIONS To recharge the batteries, follow the steps below: Place your power scooter close to a standard electrical wall outlet. Remove your key to turn the power OFF ... -
Page 15: Maintenance And Repair
MAINTENANCE & REPAIR Your power scooter is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your S19/S19T for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. DAILY CHECKS 1. - Page 16 TROUBLESHOOTING & FAULT REPAIR P&G S-Drive 45 Amp controller : Your scooter is fitted with S-Drive controller, which continuously monitors the operating conditions of your scooter. If it detects a problem it will indicate with error message by flashing light on the power ON/ OFF light.
-
Page 17: Circuit Diagram
CIRCUIT DIAGRAM... - Page 18 BOM LIST DRAWING...
-
Page 20: Warranty Declaration
Note: If you encounter a damaged or cracked battery; please enclose it in a plastic bag and call the local authorized dealers immediately for instructions on disposal and recycling. HEARTWAY MEDICAL PRODUCTS CO., LTD. NO. 6, ROAD 25, TAICHUNG INDUSTRIAL PARK,...
