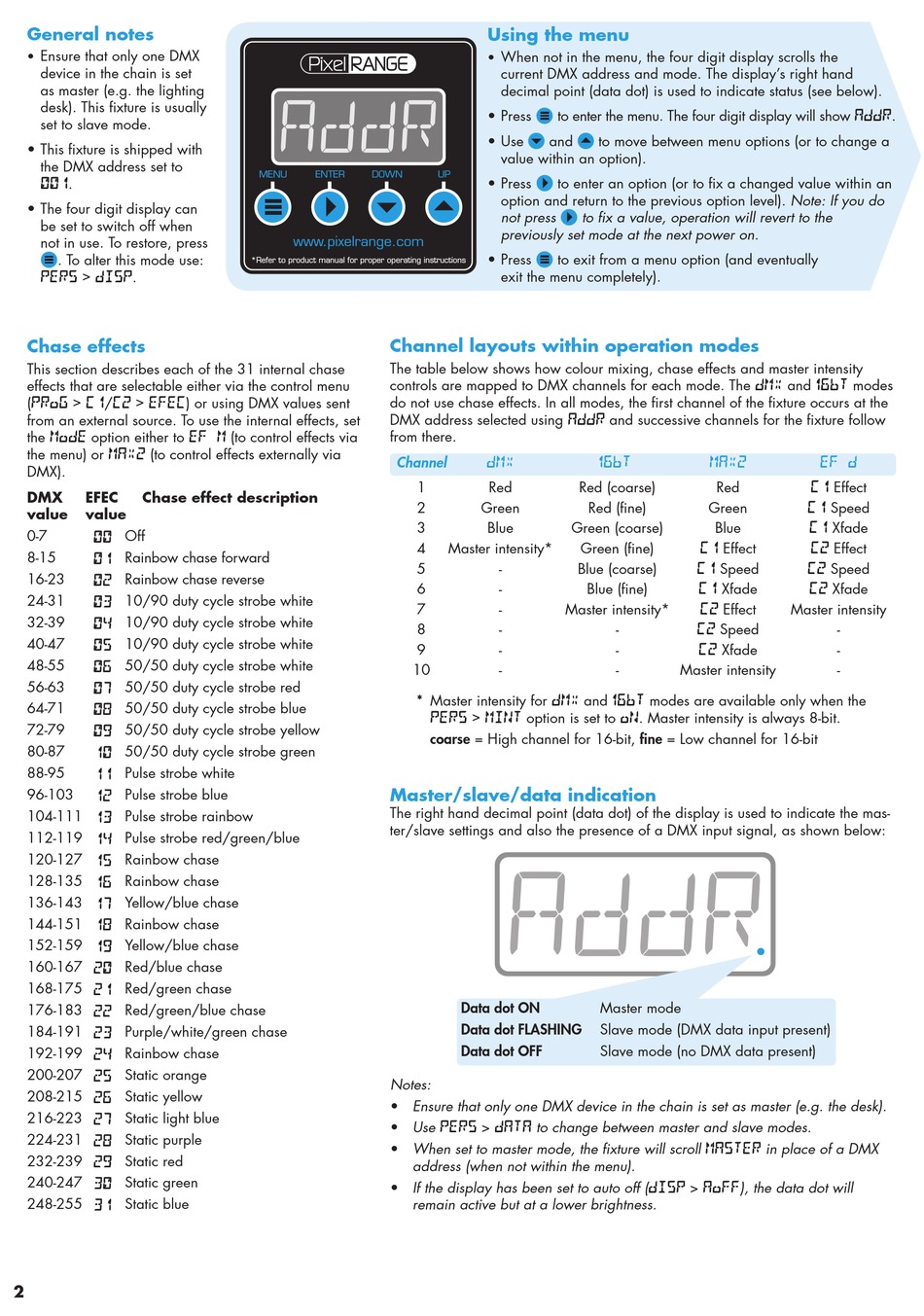

General notes

Ensure that only one DMX
•
device in the chain is set
as master (e.g. the lighting
desk). This fixture is usually
set to slave mode.
• This fixture is shipped with
the DMX address set to
001.
• The four digit display can
be set to switch off when
not in use. To restore, press
. To alter this mode use:
PERS > DISP.
Chase effects
This section describes each of the 31 internal chase
effects that are selectable either via the control menu
(PROG > C1/C2 > EFEC) or using DMX values sent
from an external source. To use the internal effects, set
the MODE option either to EF M (to control effects via
the menu) or MAX2 (to control effects externally via
DMX).
DMX EFEC Chase effect description
value value
0-7 00 Off
8-15 01 Rainbow chase forward
16-23 02 Rainbow chase reverse
24-31 03 10/90 duty cycle strobe white
32-39 04 10/90 duty cycle strobe white
40-47 05 10/90 duty cycle strobe white
48-55 06 50/50 duty cycle strobe white
56-63 07 50/50 duty cycle strobe red
64-71 08 50/50 duty cycle strobe blue
72-79 09 50/50 duty cycle strobe yellow
80-87 10 50/50 duty cycle strobe green
88-95 11 Pulse strobe white
96-103 12 Pulse strobe blue
104-111 13 Pulse strobe rainbow
112-119 14 Pulse strobe red/green/blue
120-127 15 Rainbow chase
128-135 16 Rainbow chase
136-143 17 Yellow/blue chase
144-151 18 Rainbow chase
152-159 19 Yellow/blue chase
160-167 20 Red/blue chase
168-175 21 Red/green chase
176-183 22 Red/green/blue chase
184-191 23 Purple/white/green chase
192-199 24 Rainbow chase
200-207 25 Static orange
208-215 26 Static yellow
216-223 27 Static light blue
224-231 28 Static purple
232-239 29 Static red
240-247 30 Static green
248-255 31 Static blue
2

MENU ENTER DOWN
www.pixelrange.com
*Refer to product manual for proper operating instructions
Channel layouts within operation modes
The table below shows how colour mixing, chase effects and master intensity
controls are mapped to DMX channels for each mode. The dmx and16bt modes
do not use chase effects. In all modes, the first channel of the fixture occurs at the
DMX address selected using addr and successive channels for the fixture follow
from there.
Channel
1
2
3
4
5
6
7
8
9
10
* Master intensity for dmx and16bt modes are available only when the
coarse = High channel for 16-bit, fine = Low channel for 16-bit
Master/slave/data indication
The right hand decimal point (data dot) of the display is used to indicate the mas-
ter/slave settings and also the presence of a DMX input signal, as shown below:
Notes:
• Ensure that only one DMX device in the chain is set as master (e.g. the desk).
• Use PERS > data to change between master and slave modes.
• When set to master mode, the fixture will scroll MASTER in place of a DMX
address (when not within the menu).
• If the display has been set to auto off (disp > aoff), the data dot will
remain active but at a lower brightness.

Using the menu

When not in the menu, the four digit display scrolls the
•
current DMX address and mode. The display's right hand
decimal point (data dot) is used to indicate status (see below).
• Press to enter the menu. The four digit display will show ADDR.
• Use and to move between menu options (or to change a
value within an option).
UP
• Press to enter an option (or to fix a changed value within an
option and return to the previous option level). Note: If you do
not press to fix a value, operation will revert to the
previously set mode at the next power on.
• Press to exit from a menu option (and eventually
exit the menu completely).
dmX 16bt)
Red Red (coarse)
Green Red (fine)
Blue Green (coarse)
Master intensity* Green (fine)
- Blue (coarse)
- Blue (fine)
- Master intensity*
-
-
-
pers > mint option is set to on. Master intensity is always 8-bit.

Data dot ON Master mode
Data dot FLASHING Slave mode (DMX data input present)
Data dot OFF Slave mode (no DMX data present)
MAX2
Red
Green
Blue
c1 Effect
c1 Speed
c1 Xfade
c2 Effect
-
c2 Speed
-
c2 Xfade
- Master intensity
EF d
c1 Effect
c1 Speed
c1 Xfade
c2 Effect
c2 Speed
c2 Xfade
Master intensity
-
-
-
