JVC SERVICE & ENGINEERING COMPANY OF AMERICA
DIVISION OF JVC AMERICAS CORP.
Head office
:
1700 Valley Road Wayne, New Jersey 07470-9976
East Coast
:
10 New Maple Avenue Pine Brook, New Jersey 07058-9641
:
Midwest
705 Enterprise Street Aurora, Illinois 60504-8149
:
5665 Corporate Avenue Cypress, California 90630-0024
West Coast
:
1500 Lakes Parkway Lawrenceville, Georgia 30043-5857
Atlanta
:
2969 Mapunapuna Place Honolulu, Hawaii 96819-2040
Hawaii
JVC CANADA INC.
Head office
:
21 Finchdene Square Scarborough, Ontario M1X 1A7
:
Montreal
16800 Rte Trans-Canadienne, Kirkland, Quebec H9H 5G7
:
Vancouver
13040 Worster Court Richmond, B.C. V6V 2B3
(973)315-5000
(973)396-1000
(630)851-7855
(714)229-8011
(770)339-2582
(808)833-5828
(416)293-1311
(514)871-1311
(604)270-1311
S40895-03
Printed in Japan

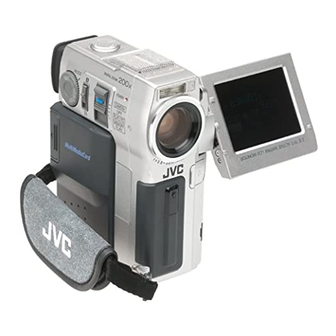

DIGITAL VIDEO CAMERA
GR-DVM90U
SPECIFICATIONS
Camcorder
For General
Power supply
: DC 6.3 V
(Using AC Power Adapter/Charger)
DC 7.2 V
(Using battery pack)
Power consumption
LCD monitor off, viewfinder on
: Approx. 4.6 W
LCD monitor on, viewfinder off
: Approx. 5.5 W
Dimensions (W x H x D)
: 51 mm x 125 mm x 97 mm (2-1/16" x 4-15/16" x 3-7/8")
(with the LCD monitor closed and the viewfinder pushed
back in)
Weight
: Approx. 510 g (1.2 lbs)
(without cassette, MultiMediaCard and battery)
Approx. 585 g (1.3 lbs)
(incl. cassette, MultiMediaCard and battery)
Operating temperature
: 0°C to 40°C (32°F to 104°F)
Operating humidity
: 35% to 80%
Storage temperature
: –20°C to 50°C (–4°F to 122°F)
Pickup
: 1/4" CCD (Progressive Scan)
Lens
: F 1.8, f = 3.8 mm to 38 mm, 10:1 power zoom lens
Filter diameter
: ø27 mm
LCD monitor
: 2.5" diagonally measured, LCD panel/TFT active matrix
system
Viewfinder
: Electronic viewfinder with 0.55" color LCD
Speaker
: Monaural
For Digital Video Camera
Format
: DV format (SD mode)
Signal format
: NTSC standard
Recording/Playback format
: Video: Digital component recording
: Audio: PCM digital recording, 32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette
: Mini DV cassette
Tape speed
: SP: 18.8 mm/s
LP: 12.5 mm/s
Maximum recording time
: SP: 80 min.
(using 80 min. cassette)
LP: 120 min.
For Digital Still Camera
Storage media
: MultiMediaCard
Compression system
: JPEG (compatible)
File size
: 2 modes (XGA: 1024 x 768 pixels/VGA: 640 x 480 pixels)
Picture quality
: 2 modes (FINE/STANDARD)
Approximate number of storable images
(with the provided MultiMediaCard [8 MB], with Sound Effects pre-stored)
FINE
: 46 (VGA), 21 (XGA)
STANDARD
: 133 (VGA), 64 (XGA)
This service manual is printed on 100% recycled paper.
©
COPYRIGHT
2000 VICTOR COMPANY OF JAPAN, LTD.
(with an optional MultiMediaCard [4 MB])
FINE
: 26 (VGA), 12 (XGA)
STANDARD
: 76 (VGA), 36 (XGA)
(with an optional MultiMediaCard [8 MB])
FINE
: 54 (VGA), 24 (XGA)
STANDARD
: 155 (VGA), 75 (XGA)
For Connectors
, 75 Ω, analog
Video output
: 1 V
(
p-p
)
Audio output
: 300 mV (rms), 1 kΩ, analog, stereo
DV Input/output
: 4-pin, IEEE 1394 compliant
Headphone output
: ø3.5 mm, stereo
AC Power Adapter/Charger AA-V51U
Power requirement
U.S.A. and Canada
: AC 120 V`, 60 Hz
Other countries
: AC 110 V to 240 V`, 50 Hz/60 Hz
Power consumption
: 23 W
Output
Charge
: DC 7.2 V
, 0.77 A
VTR
: DC 6.3 V
, 1.8 A
Dimensions (W x H x D)
: 68 mm x 45 mm x 110 mm (2-11/16" x 1-13/16" x 4-3/8")
Weight
: Approx. 254.5 g (0.57 lbs)
Docking Station
For General
Dimensions (W x H x D)
: 55 mm x 36 mm x 107 mm (2-3/16" x 1-7/16" x 4-1/4")
Weight
: Approx. 89.9 g (0.2 lbs)
For Connectors
: Y: 1 V (p-p), 75 Ω, analog output
S-Video
C: 0.29 V (p-p), 75 Ω, analog output
: 1 V (p-p), 75 Ω, analog output
Video
Audio
: 300 mV (rms), 1 kΩ, analog output
JLIP/EDIT
: ø3.5 mm, 4-pole, mini-head jack (compatible with RC-5325
plug)
PC
: ø2.5 mm, 3-pole
: 506 µV (rms), high impedance unbalanced with ø3.5 mm
External microphone input
(stereo)
PRINTER
: For an optional video printer equipped with a PRINT DATA
connector
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications
subject to change without notice.
No. 86565
June 2000
