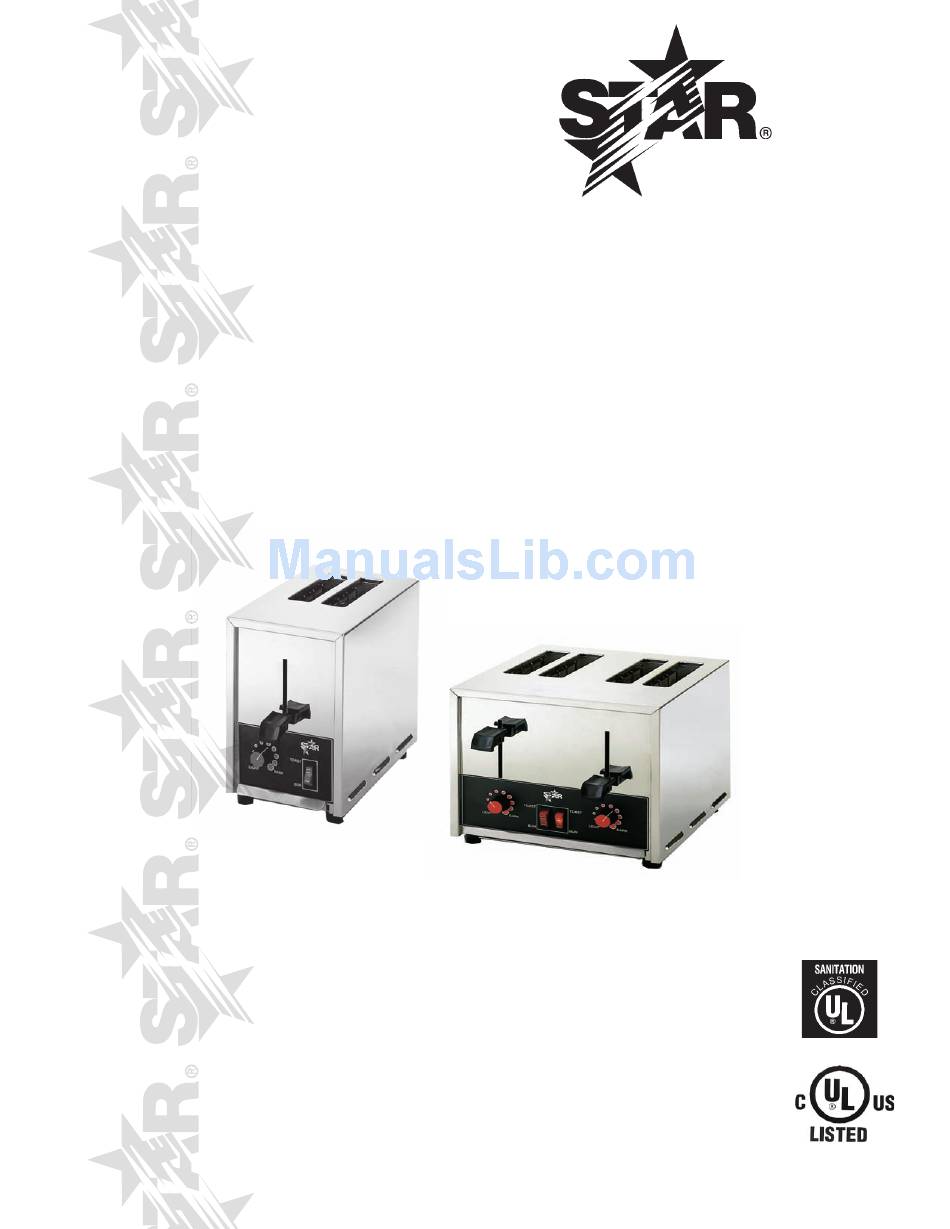

- Page 1 TOASTER MODEL STO2 & STO4 Installation and Operation Instructions 2M-Z2134 Rev. F 9/09/08 STO2 STO4...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. - Page 3 SPECIFICATIONS: STO2-120V Type: Two Slot Pop-Up Toaster, 1 Control Voltage: 0V AC, 60 HZ, Wattage: 900W, Amps: 7.5A Plug Type: Nema 5-5P Approximate weight: installed - 9 Lb (4. kg), shipping - Lb, (5 kg) Dimensions: 6" - Width, 0" - Depth, 9" - Height (5. cm - Width, 5.4 cm - Depth, .9 cm - Height)
-
Page 4: General Installation Data
GENERAL INSTALLATION DATA CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. INSTALLATION These models are equipped for the voltage and wattage indicated on the nameplate. - Page 5 FRONT CARRIAGE HANDLE TOAST COLOR ADJUSTMENT KNOB TOAST TOAST LIGHT DARK LIGHT DARK CRUMB TRAY TOAST/BUN SWITCH FIG. 1 CHECK LINE CAPACITY 4 SLICE TOASTER On the 4 slice toaster, adjust each section independently with the other section turned off. After both sections are properly adjusted, and with out changing the adjustments, make toast in both sections at the same time.
- Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below)
- Page 9 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL: ST04 & ST02 TOASTER SK1622 REV. D 7/20/2006...
-
Page 10: Parts List
SCREW #8X/8 B THP STL NP A9-Z88 (ST04) BARRIER BRCKT A9-Z08 (ST04) BOTTOM A9-Z08 (ST0) BOTTOM A-Z07 (ST0/ST04) GUIDE ROD ¼” DIA. A9-TO407 (ST0/ST04) CARRIAGE ASSY. K-Z09 (STO) BUSHING GUIDE K-Z09 (STO4) BUSHING GUIDE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 11 BACK PLATE-ST04 A9-Z094 (ST0) BACK PLATE-ST0 K-Y968 STRAIN RELIEF-CORDSET A9-TO40 CORDSET 4/ NEMA 5-5P 0V (UL MODEL) A9-TO404 CORDSET 4/ NEMA 6-5P 08V & 40V A9-TO409 CORDSET 4/ NEMA 5-0P 0V (CUL MODEL) IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
