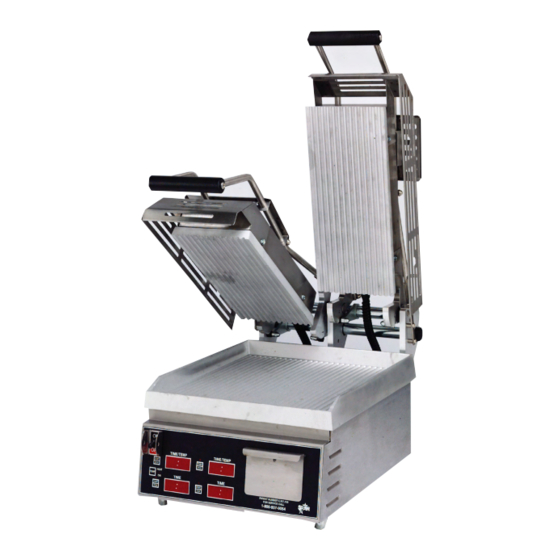

SPLIT LID TABLE TOP
TWO SIDED TOASTER
ANSI/NSF 4
COOKING AND/OR HOT FOOD
STORAGE EQUIPMENT
9N47
Star
Manufacturing
International Inc.
10 Sunnen Drive
St. Louis, MO 63143
Phone: (314) 781-2777
Fax: (314) 781-2714
MODEL
CG14SPTE120V
CG14SPTE120C
1
Installation
and
Operating
Instructions
2M-Z5890 Rev. C 5/4/07
120V = UL/US
120C = UL/US & CANADA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star CG14SPTE120V
Summary of Contents for Star CG14SPTE120V
- Page 1 St. Louis, MO 63143 Instructions Phone: (314) 781-2777 Fax: (314) 781-2714 2M-Z5890 Rev. C 5/4/07 SPLIT LID TABLE TOP TWO SIDED TOASTER MODEL CG14SPTE120V CG14SPTE120C ANSI/NSF 4 COOKING AND/OR HOT FOOD 120V = UL/US STORAGE EQUIPMENT 120C = UL/US & CANADA 9N47...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifi cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: General Installation Data
GENERAL INSTALLATION DATA CAUTION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. The unit time and temperature are preset by the factory to the customer requirements. - Page 4 TEMPERATURE/TIMER CONTROLLER OPERATION SPECIFICATIONS Start-up: 1. Initially, for approximately 3 seconds the preset grill temperature will be displayed in the top left display. 2. After 3 seconds, the "Heat On" indicator will remain lit and all four time displays will fl ash until the preset temperature is reached.
-
Page 5: Daily Cleaning Procedures
Contact your local authorized service agent for service or required maintenance. Refer to the authorized service center listing provided with the unit. STAR Service Help Desk: 1-800-807-9054 Please have your serial number and model number for faster service. The serial number and... - Page 6 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 7 DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT. WIRE DIAGRAM, 120V, 2300 WATT (2J-Z5887 CONTROLLER ONLY) SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL CG14SPTE SK1911 REV. - 9/10/02...
- Page 8 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL CG14SPTE SK1910 REV. A 1/28/04...
-
Page 9: Parts List
PARTS LIST May 4, 2007, Rev. C CG14SPTE120V/C SPLIT LID TABLE TOP CLAM SHELL TOASTER MODEL Number Part Number Number Description Unit D9-GR0032 TORQUE BOX ASSEMBLY D9-GR0150 GREASE CABINET ASSEMBLY D9-GR0152 BODY ASSEMBLY D9-GR0177 BURN GUARD ASSEMBLY - LEFT D9-GR0176... - Page 12 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
Need help?
Do you have a question about the CG14SPTE120V and is the answer not in the manual?
Questions and answers

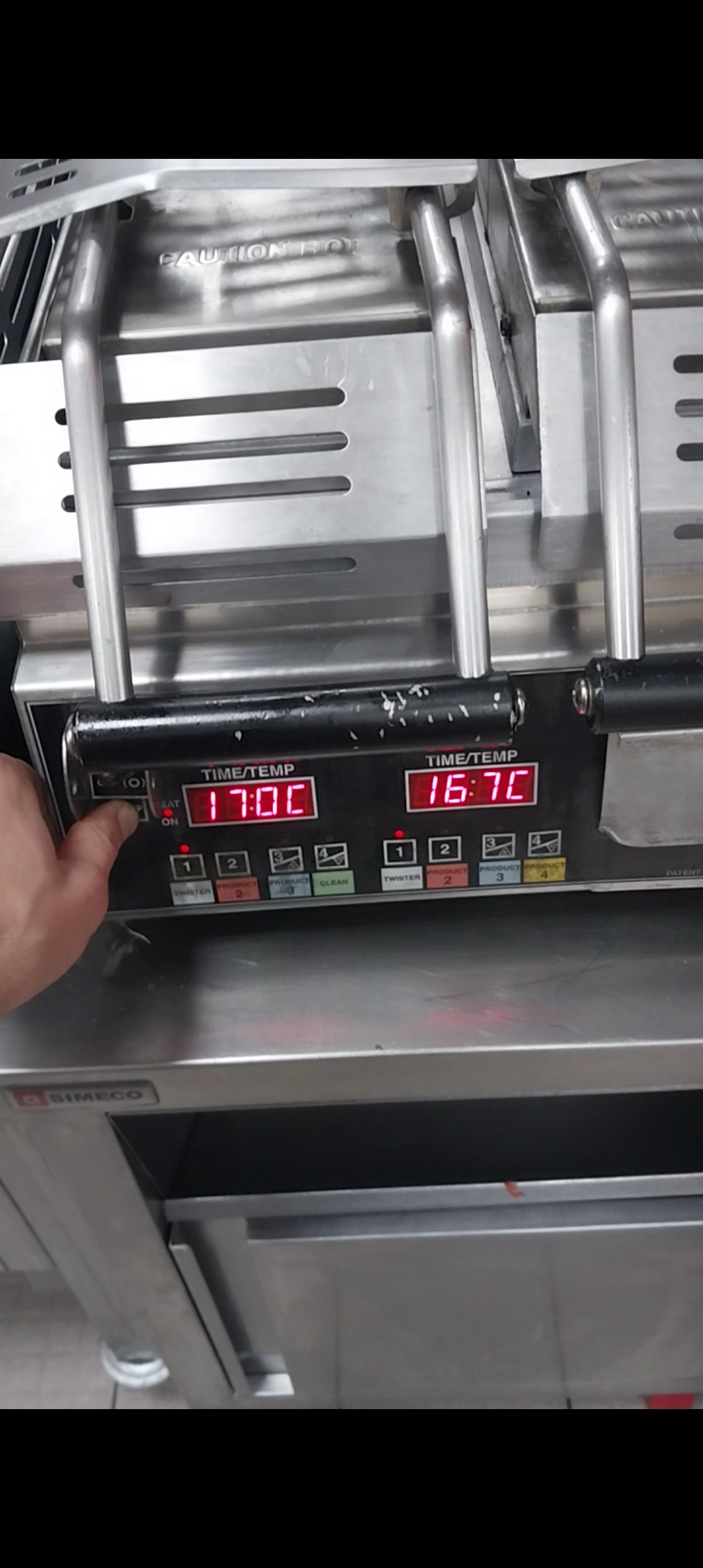

Как изменить градус F на C° ?
