Summary of Contents for Star Holman QT14D

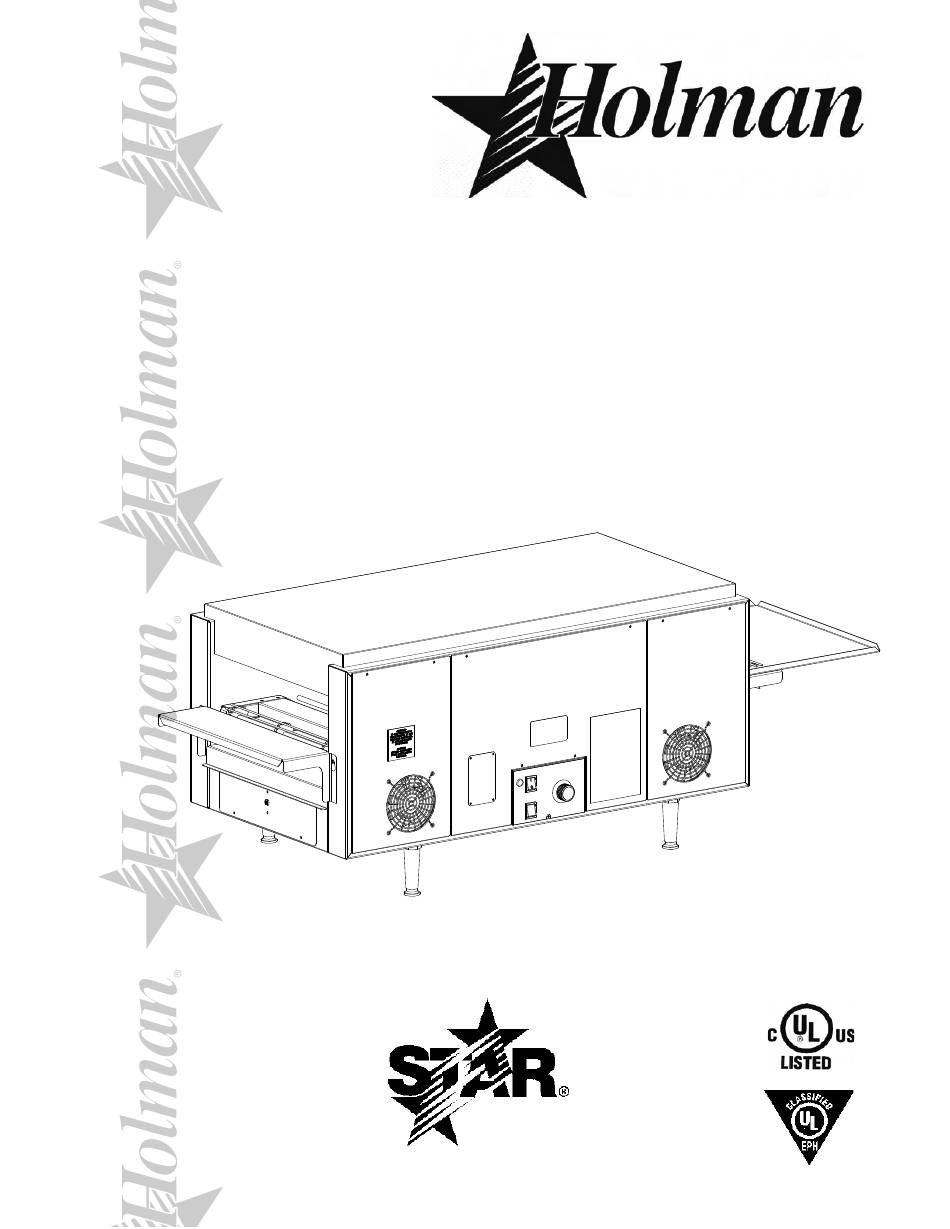

- Page 1 ® CONVEYOR SANDWICH TOASTER MODEL QT14D Installation and Operation Instructions 2M-Z16577 Rev. D 10/13/14 IL2590 QT14D...
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
- Page 3 PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized service agent directory Call the Technical Service & Parts Department at 314-678-6303. TABLE OF CONTENTS PAGE Contact Information Specifications General Information Data Inspection & Assembly Assembly and Installation Electrical Connection Oven Components Stacking Ovens Daily Operation...
- Page 4 GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &...
- Page 5 OFF position and allow unit to cool. The fans will continue to circulate cool air throughout the unit until the internal temperatures have been decreased. If a problem is discovered during start up procedures, immediately turn the Master ON/OFF switch to the OFF position and call the Star Service Help Desk at (314) 678-6303 HI-LIMIT RESET SWITCH...
- Page 6 STACKING TOASTERS When stacking two Holman QT14/QT14D Conveyor Sandwich Toasters a QT14 Stacking Legs Kit (part no. PS-Z8977) MUST be used to prevent overheating of the control box of the top toaster. 1. Unplug BOTH UNIT power cords from the wall receptacle, and allow to cool. 2.
- Page 7 DAILY OPERATION 1. Turn Main On/Off switch to the ON position and variable speed control to the desired setting. Allow 30-40 minutes for complete machine warm up. 2. Adjust speed as required during operation to achieve a good bake. 3. When done for the day, turn the On/Off switch to the OFF position. The conveyor will stop and the elements will go off.
- Page 8 CLEANING Preventive maintenance for your toaster consists of the following recommended cleaning procedures. To keep your unit in its top operating condition, these steps should be performed on a daily, weekly or as indicated. Turn power off and allow cooling fans to run until the control box is cooled off. A thermostat in the control box controls the fans.
- Page 9 CLEANING continued WEEKLY 1. Turn main power switch to the OFF position, allow cooling fans to run until the control box is cooled off. Disconnect unit from power source and allow to cool. 2. Perform daily cleaning procedures. 3. Using a damp cloth, wipe clean the fan guard located on the control box cover under the unit.
- Page 10 8. For exterior portions of unit that are heavily soiled, an abrasive pad may be used for cleaning. Be sure to pass the pad in the direction of the grain in the metal to maintain the surface's finish. Lightly soiled surfaces may be cleaned with a damp cloth and mild cleaner. 9. Reconnect unit to power supply and test for proper operation. IF ASSISTANCE IS REQUIRED, CALL THE STAR SERVICE HELP DESK AT 314-678-6303. IL1342...
- Page 11 MAINTENANCE & REPAIRS A. REPLACING ELEMENT NOTE: Replace one element at a time. 1) DISCONNECT POWER SOURCE. Element 2) Remove both the left and right side panels, by removing the truss head screws. Pull the top of each panel out slightly and lift up. 3) Remove the wire terminal from the each end of the element you are replacing.
- Page 12 MAINTENANCE PROCEDURES continued 7) Install sprocket on motor shaft & chain after aligning them. See Sprocket Alignment Illustration. NOTE: The two sprockets must line up FLUSH with each other, so the chain does not twist during operation. Also the hub is installed closest to the motor.
- Page 13 Refer to REPLACING FAN MOTOR in the previous section. 4) If both fans are not working, chances are the fan switch needs replacing. 5) Call the Star Service Help Desk at 314-678-6303, as the fan switch and or fan motor MAY need replacing.
- Page 14 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 15 TGGT 14GA 19 20 FAN SWITCH TGGT 14GA FUSE 2 W-14GA MAIN POWER B-14GA B-14 GA B-14GA FUSE 1 W-14GA PILOT LIGHT W-14GA W-14 GA W-14GA W-14GA B-14GA B-14GA B-12GA W-12GA 40 AMP B-6GA W-6GA W-14GA W-14GA B-14GA B-14GA POWER SAVER B-14GA RESET SWITCH...
- Page 16 Nameplate Model: QT14D Conveyor Toaster Cabinet Components SK2629 Rev. - 11/21/2012...
- Page 17 PARTS LIST October 13, 2014, Rev. D QT14D Cabinet Components Fig No. Part Number Description Application 2C-200007 SCREW 6-32X1 1/2 PHP SS GE-100991 TOP COVER, QT14 GE-101593 UNLOAD TRAY ASSEMBLY 2E-Z10526 SWITCH - SPDT 2M-Z11571 LABEL, BELT DIRECTION GE-Z16506 PANEL PLATE, w/ROCKER SW GE-Z9903 CRUMB TRAY, ONE PIECE GE-Z16911...
- Page 18 Model: QT14D Conveyor Toaster Interior Components SK2630 Rev. A 3/07/2013...
- Page 19 PARTS LIST October 13, 2014, Rev. D QT14D Interior Components Fig No. Part Number Description Application 2P-150000 QT14 DRIVE CHAIN #25 2P-115362 SPROCKET, 25B11 X 3/8 2P-115366 SPROCKET 25B20 X 1/2 GB-112262 BEARING ASSY, 3/8 PTFE GE-101254 QT14 DRIVE SHAFT ASSEMBLY 2U-Z8629 GEAR MOTOR W/CAPACITOR 2A-101257...
- Page 20 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
