MOUNTING
Suspended ceiling mount

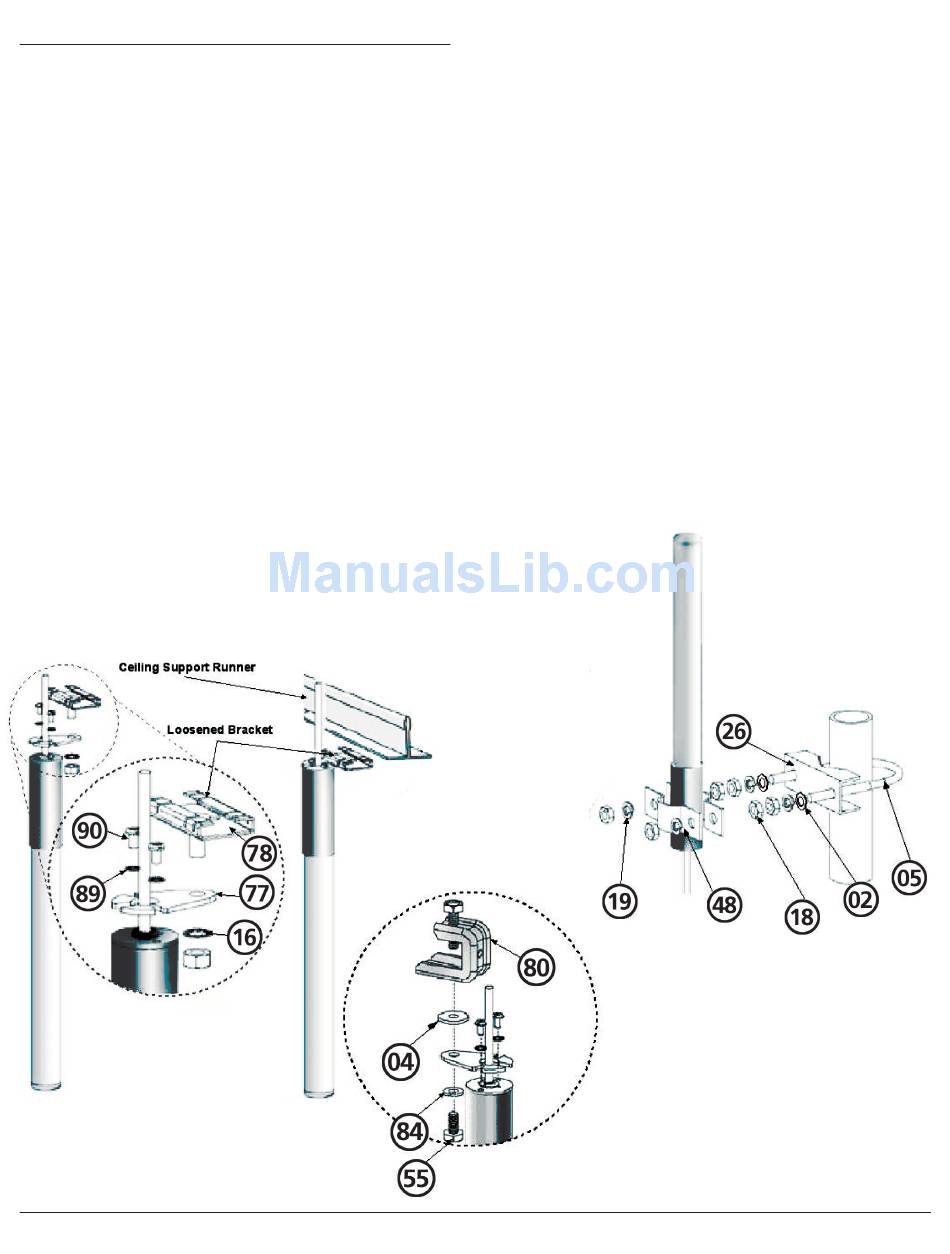

1. Attach the antenna to the antenna bracket (77) using two #6 phillips
head screws (90) and two #6 lock washers (89). Use the #6 hardware
to secure the antenna bracket to the antenna base. See Figure 2.
2. Remove the 1/4" - 20 hex nut and flat washer from the runner
bracket (78) carriage bolt in preparation for mounting. Discard the flat
washer–this will not be used.
3. Insert the antenna bracket (77) onto the threaded end of the runner
bracket bolt (78) as shown in Figure 2. Install the 1/4" lock washer
(16) and nut loosely–the halves of the runner bracket must slide freely
for final installation.
4. Clamp the ceiling bracket onto the support runner and tighten the 1/4"
mounting nut using a 7/16" wrench or adjustable wrench. Secure
the coaxial cable along the support runner using tape or cable ties.
5. If installing one antenna, attach the connector to the AP Primary
antenna connection. If installing a diversity system, attach the
leads from the two antennas to the AP main and auxiliary antenna
connectors.
I-beam mount
1. Install bracket plate (77) as shown in Figure 2.
2. Referring to Figure 2A, install I-beam clamp (80) to the bracket plate
using flat washer (04), lock washer (84), and short 1/4"-20 bolt (55).
Tighten the clamp bolt to secure the antenna in place on the I-beam.
Figure 2
HP ProCurve Networking
Pole mount
1. At the top of the pipe, using a 1/2" wrench or adjustable wrench,
secure the U-bolt (05) to the mast clamp (26) using two 5/16" nuts
(18), lock washers (19), and flat washers (02). See Figure 3.
2. Install two 5/16" nuts (18) by turning them down against the nuts
securing the U-bolt of the mast.
3. Sandwich the antenna between the two antenna clamps (48) at its
base and slide this assembly onto the U-bolt. Secure in place using
two 5/16" lock washers (19), and the two remaining 5/16" nuts (18).
4. Secure the coaxial cable along the mast or pole using tape or
cable ties.
5. If installing one antenna, attach the connector to the AP Primary
antenna connection. If installing a diversity system, attach the leads
from the two antennas to the AP unit's Primary and Secondary jacks.
Figure 3
Figure 2A
2
HP ProCurve 4.4dBi Indoor/Outdoor Omnidirectional Antenna (J8441A) Guide
