GROUNDING
System grounding and lightning protection are essential, especially for
exterior-mounted antennas exposed to the elements. Never install an
antenna where it may fall and contact electrical lines (refer to the
National Electrical Code).
SPECIFICATIONS
Model
Frequency, MHz
Gain with specified cable (dBi):
VSWR max.
E-Plane (3 dB beamwidth):
H-Plane (3 dB beamwidth):
Polarization:
Impedance (Ohms)
Weight lb. (kg)
Dimensions, in.
(cm):
Mounting Style
2
2
Wind Surface Area ft
(m
)
Wind Survival mph (km/hr)
Enclosure
RF Connector:
Cable
Storage Temperature (min/max)
Operating Temperature (min/max)
HP WARRANTY INFORMATION
See the Customer Support/Warranty booklet included with this product. A copy
of the specific warranty terms applicable to your ProCurve products and replace-
ment parts can be obtained from your HP Sales and Service Office or authorized
dealer.
SUPPORT
Hewlett-Packard offers support 24 hours day, seven days a week through the
use of a number of automated electronic services. See the Customer Support
Warranty booklet that came with your product for information on how to use
these services to get technical support. You can also get up-to-date support
information from the ProCurve Web site: www.procurve.com
Additionally, your HP-authorized network reseller can provide you with assis-
tance, both with services that they offer and with services offered by ProCurve.
©Copyright 2006, Hewlett-Packard Company, LP
The information contained herein is subject to
change without notice.
Part Number: 5991-3840
*5991-3840*
J9000A
5150 - 5875
13.3
2.0:1
27°
29°
Linear, (Vertical)
50
0.7 (0.3)
4.16 x 4.16 x 1.375
(10.6 x 10.6 x 3.5)
Flush wall mount
0.12 (0.011)
120 (193)
PVC/Acrylic
Reverse SMA (male)
33-inch CMP Plenum
-40° / +65°C
-30° / +55°C)

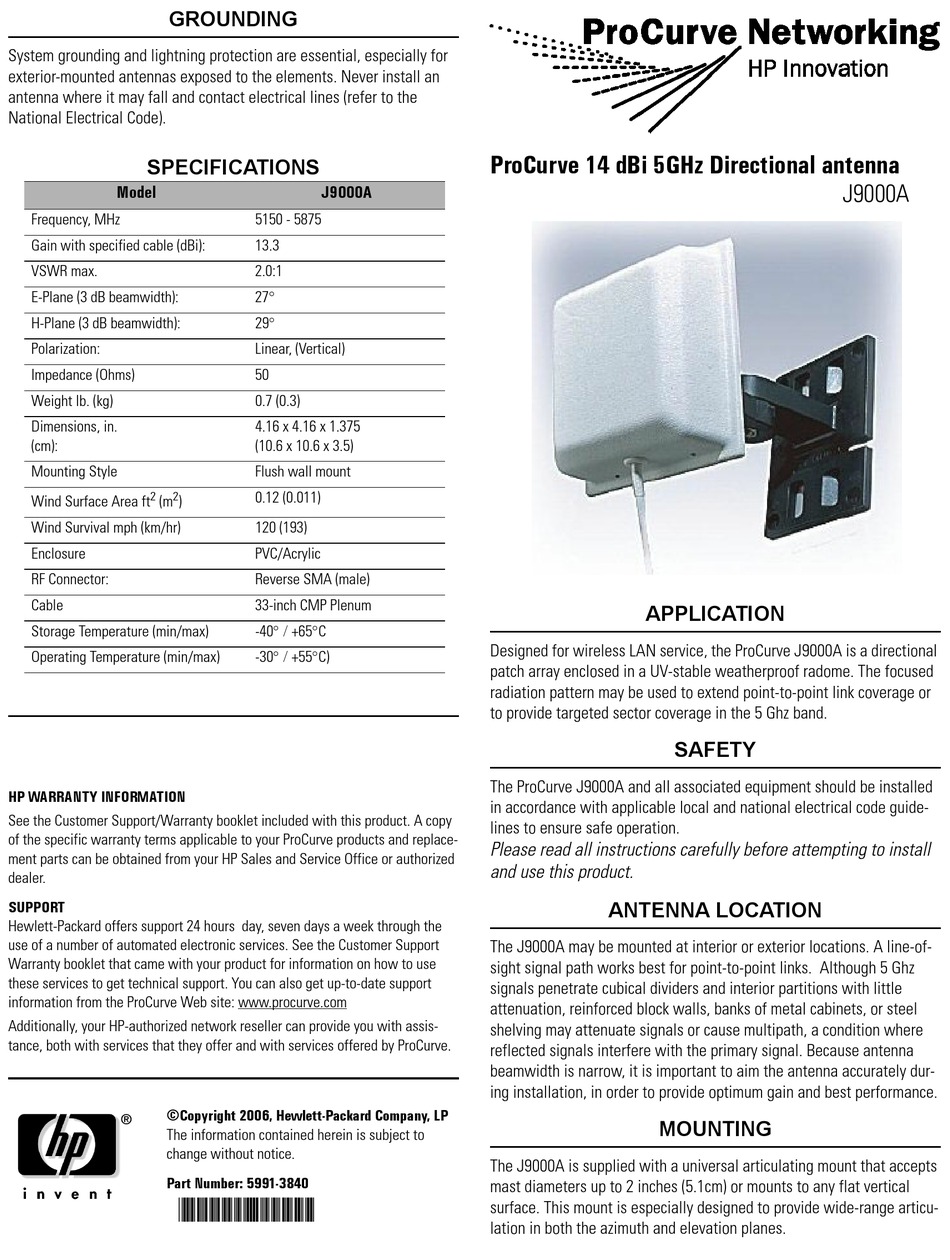

ProCurve 14 dBi 5GHz Directional antenna
APPLICATION
Designed for wireless LAN service, the ProCurve J9000A is a directional
patch array enclosed in a UV-stable weatherproof radome. The focused
radiation pattern may be used to extend point-to-point link coverage or
to provide targeted sector coverage in the 5 Ghz band.
The ProCurve J9000A and all associated equipment should be installed
in accordance with applicable local and national electrical code guide-
lines to ensure safe operation.
Please read all instructions carefully before attempting to install
and use this product.
ANTENNA LOCATION
The J9000A may be mounted at interior or exterior locations. A line-of-
sight signal path works best for point-to-point links. Although 5 Ghz
signals penetrate cubical dividers and interior partitions with little
attenuation, reinforced block walls, banks of metal cabinets, or steel
shelving may attenuate signals or cause multipath, a condition where
reflected signals interfere with the primary signal. Because antenna
beamwidth is narrow, it is important to aim the antenna accurately dur-
ing installation, in order to provide optimum gain and best performance.
MOUNTING
The J9000A is supplied with a universal articulating mount that accepts
mast diameters up to 2 inches (5.1cm) or mounts to any flat vertical
surface. This mount is especially designed to provide wide-range articu-
lation in both the azimuth and elevation planes.
J9000A
SAFETY
