HP ProCurve J8997A Manual

SPECIFICATIONS
Model
Frequency, MHz
Gain with specified cable (dBi):
VSWR max.
E-Plane (3 dB beamwidth):
H-Plane (3 dB beamwidth):
Polarization:
Impedance (Ohms)
Weight lb. (kg)
Dimensions, in.
(cm):
Mounting Style
2 2
Wind Surface Area ft (m )
Wind Survival mph (km/hr)
Enclosure
RF Connector:
Cable
Storage Temperature (min/max)
Operating Temperature (min/max)
HP WARRANTY INFORMATION
See the Customer Support/Warranty booklet included with this product. A copy of the
specific warranty terms applicable to your ProCurve products and replacement parts
can be obtained from your HP Sales and Service Office or authorized dealer.
SUPPORT
Hewlett-Packard offers support 24 hours day, seven days a weekd through the use of
a number of automated electronic services. See the Customer Support Warranty
booklet that came with your product for information on how to use these services to
get technical support. You can also get up-to-date support information from the
ProCurve Web site: www.procurve.com
Additionally, your HP-authorized network reseller can provide you with assistance,
both with services that they offer and with services offered by ProCurve.
©Copyright 2006, Hewlett-Packard Company, LP
The information contained herein is subject to
change without notice.
Part Number: 5991-3836
*5991-3836*
J8997A
2400-2500 & 4900-5990
3 / 4
2.0:1
60°/ 58°
Omnidirectional
Linear, (Vertical) (2x)
50
0.5 (0.23)
6.2" x 3.6" x 0.89"
(15.6 x 9.3 x 2.26)
Ceiling Grid
Not Applicable
Not Applicable
PVC/Acrylic
Reverse SMA (male)
33-inch CMP Plenum
-40° / +65°C
-30° / +55°C)

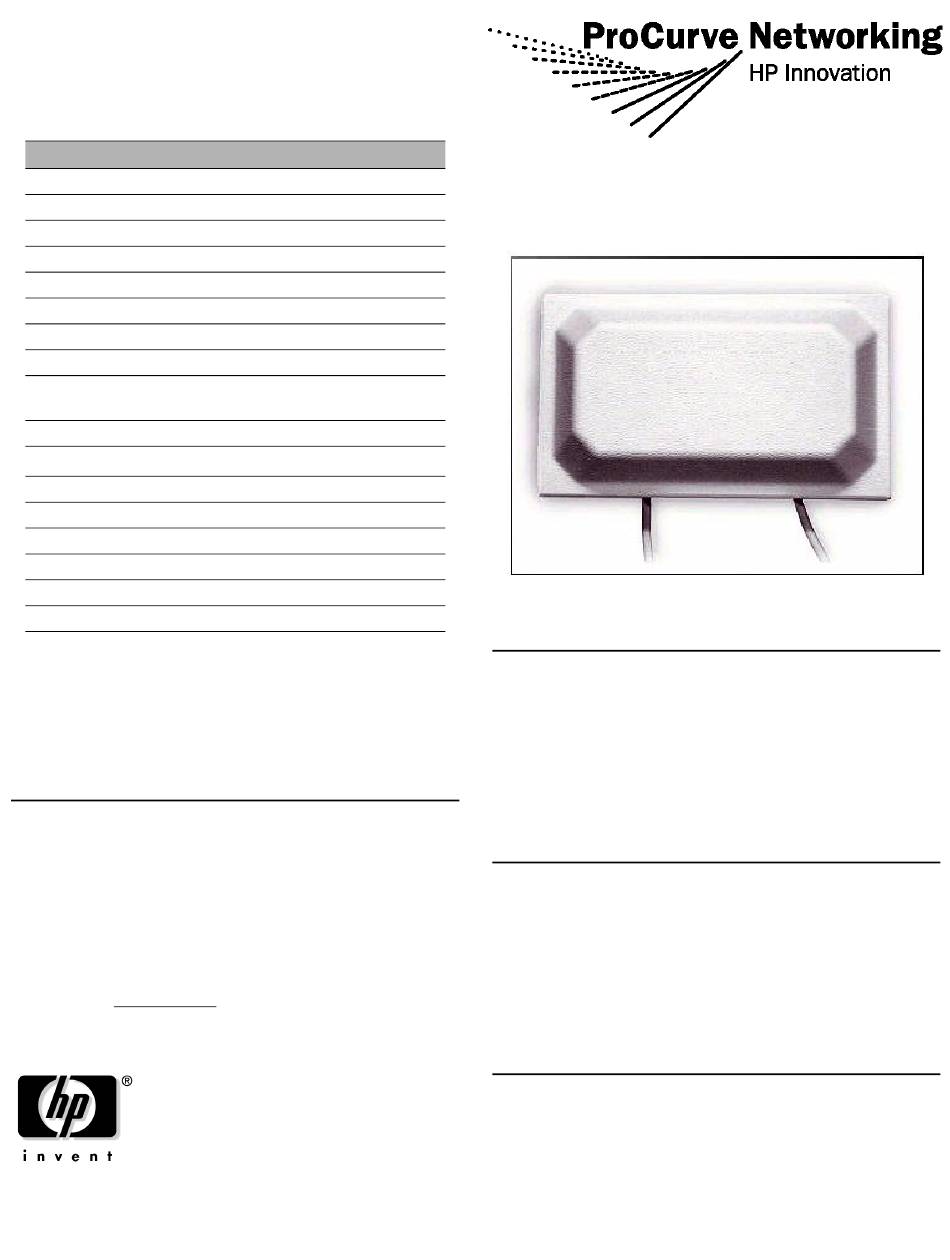

ProCurve 3 dBi Dual Band Diversity antenna
The ProCurve J8997A and all associated equipment should
be installed in accordance with applicable local and
national electrical code guidelines to ensure safe opera-
tion.
Please read all instructions carefully before attempting to install
and use this product.
APPLICATION
The J8997A is a ceiling-mounted spatial omnidirectional
array especially designed for use with spatial-diversity
access point systems. Two independent vertically polarized
radiators provide null-free onmidirectional coverage for
meeting rooms, offices, departmental areas, or other
enclosed spaces.
LOCATION
For best results, mount the J8997A at ceiling level near the
center of the coverage area. A line-of-sight path between
the antenna and active floor locations works best. Avoid
mounting next to a column or vertical support that could
create a shadow zone and reduce coverage to one portion
of the room.
J8997A
SAFETY
