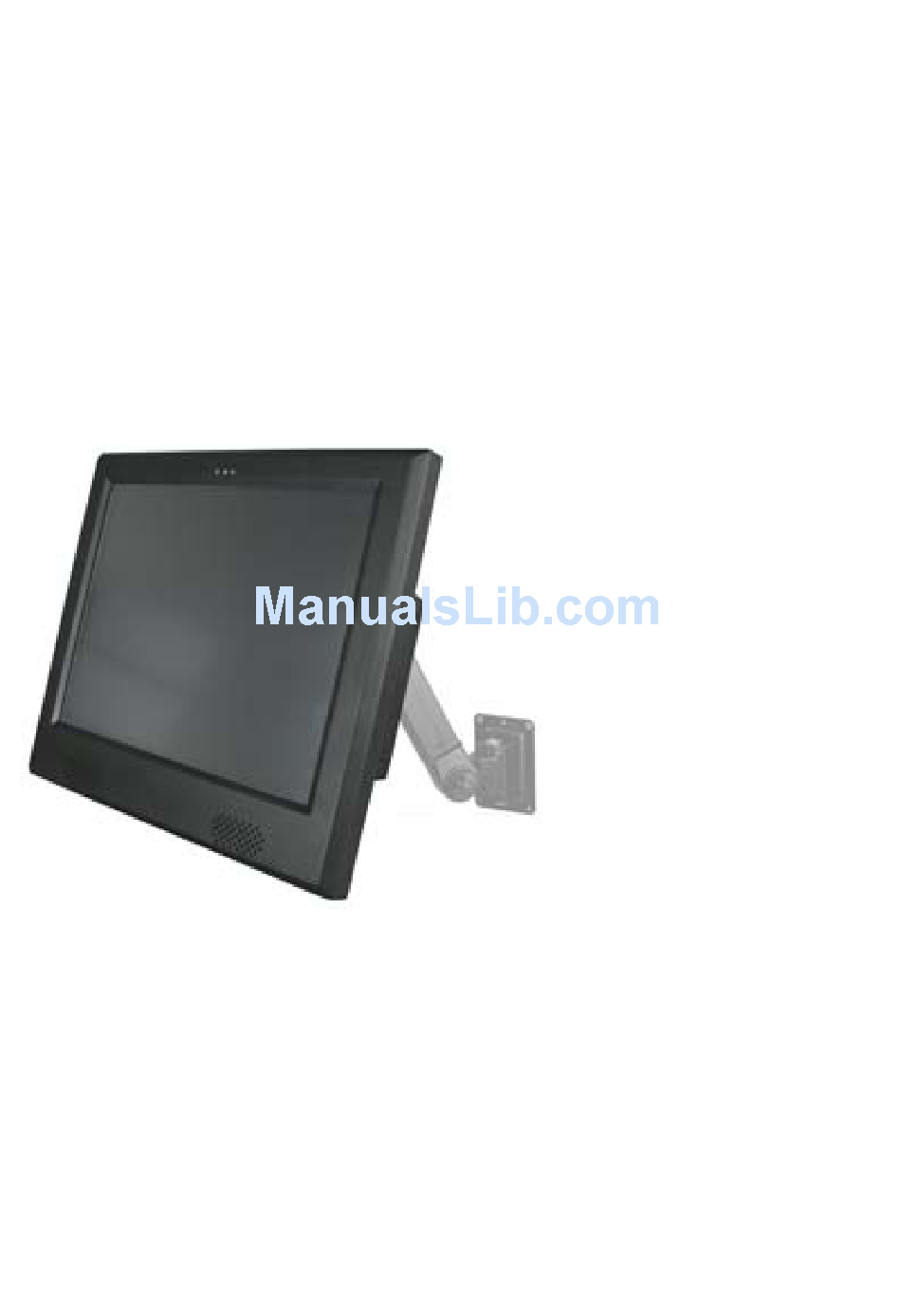

- Page 1 User’s Manual EZPPC70-7B-C1G EZPPC70-9B-C1G EZPPC70-7B-C15G EZPPC70-9B-C15G...
-
Page 2: Copyrights
Copyrights communications. However, there is no guarantee that interference will not occur in a particular ©2009 All rights reserved. The information in this installation. If this equipment does cause harmful document is subject to change without prior notice in interference to radio or television reception, which order to improve reliability, design and function and does can be determined by turning the equipment off and not represent a commitment on the part of the... -
Page 3: Weee Notice
WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. -
Page 4: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ...................i Regulatory Information................i FCC Notices......................i CE Notice ......................i WEEE Notice......................ii Contents....................iii Introduction ....................1 Unpacking the Box...................3 Hardware Setup..................4 3.1. Quick Tour....................4 Front View...................... 4 Back Panel I/O ....................5 3.2. Connect Battery Pack (Optional) ..............5 3.3. - Page 5 6.4. Display ......................30 6.5. Edge Compensation .................. 33 I/O Definition...................36 7.1. Power Connector ..................36 7.2. Serial Port ....................36 7.3. PS2/COM ..................... 37 7.4. Cash Drawer ....................37 Specification...................39 8.1. EZPPC70-7B-C1G, EZPPC70-7B-C15G ............. 39 8.2. EZPPC70-9B-C1G, EZPPC70-9B-C15G ............. 40 Contents...
-
Page 6: Introduction
Introduction Comes with a large TFT 5-Wire Resistive type LCD touchscreen panel (15”, 17” and 19” available ), EZPPC 70 (EZPOS 70) features Intel Celeron M 1.5 Ghz CPU and 1GB (maximum) SO-DIMM DDR RAM, delivering high performance to meet most of requirements from current and future applications. - Page 7 3 RS-232 ports equipped, EZPPC 70 (EZPOS 70) can be expanded and connected with all external devices required - Wireless LAN, VFD, MSR and iButton…etc, to help user to conquer challenges from variable business markets. For future upgrades and fast assembly/disassembly, EZPPC 70 (EZPOS 70) adopts tool-free and idiot-proof modular design, everyone can assembly/disassembly EZPPC 70 (EZPOS 70) without special tool and install/replace all main modularized components intuitionally.
-
Page 8: Unpacking The Box
Unpacking the Box Verify that the box contains the following items. Device X 1 Power Adaptor X 1 Power Cord X 1 Driver and utility CD X 1 Wall mount Kit x 1 Chapter 2... -
Page 9: Hardware Setup
Hardware Setup 3.1. Quick Tour Front View LED Indicator The Power indicator will glow green when power is on. The HDD indicator will blink green when the HDD is accessed. The LAN indicator will blink green when transferring data though the LAN. Chapter 3... -
Page 10: Back Panel I/O
Back Panel I/O Note: For details of I/O ports on the back panel, please refer to Chapter 7 – I/O Definition. 3.2. Connect Battery Pack (Optional) Before power-on the device, please connect the battery to the mainboard: 1. Un-tighten two screws on the back panel anticlockwise. 2. - Page 11 3. For the location of the battery pack and the 10-1 pin male power connector, please refer the picture shown below. 3. Plug the power cable to the 9-pin power connector in the correct orient. 4. Close the back panel and tighten two screws on the back panel. Chapter 3...
-
Page 12: Peripherals Installation
3.3. Peripherals Installation Power Adapter Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel of the device. USB Mouse, USB Keyboard and USB ODD Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the back panel of the device. -
Page 13: Cash Drawer
Cash Drawer Connect one end of RJ-11 cable to the Cash Drawer port on the back panel of the device, another end to your cash drawer. 1. Connect the female connector of the external device to the PS2/COM port on the back panel of the device in the correct orient. -
Page 14: Wall Mount Kit Installation
3. Tighten two screws of the MSR assembly as shown below. 4. Finished. 3.4. Wall mount Kit installation 1. Separate the wall mount kit. 2. Align the screw holes of the wall mount kit to the holes of the device and tighten the four screws. -
Page 15: Turn On The Device
3.5. Turn on the Device 1. Make sure all peripherals are connected properly. 2. Press and hold the power switch until the power indicator on the front panel glow green. Chapter 3... -
Page 16: Driver And Utility Installation
Driver and Utility Installation 4.1. Before the installation All installation procedures described below are based on Microsoft Windows XP. 1. Connect an external USB CDROM drive to the USB port and insert the driver CD and turn on the device. The program autoruns and displays the DRIVER BANK screen. - Page 17 2. Click Next. 3.1. Click Next. 3.2. Read the License Agreement carefully and click Yes. 4. Click Next. Chapter 4...
-
Page 18: Vga Driver Installation
5.1. Select restart your computer right now or later. 5.2. Click Finish. 4.3. VGA Driver Installation 1. Click Graphic Driver. 2. Click VGA Driver for WIN2K/XP. Chapter 4... - Page 19 3. Click Next. 3.1. After files extracted, click Next on the welcome screen. 4. Read the License Agreement carefully and click Yes, and then the installation starts. 5.1. Select restart your computer right now or later. 5.2. Click Finish. Chapter 4...
-
Page 20: Lan Driver Installation
4.4. LAN Driver Installation 1. Click RTL81x0 LAN Driver. On the welcome screen, click Next. Click Install to begin the installation. 3. Click Finish. Chapter 4... -
Page 21: Audio Driver Installation
4.5. Audio Driver Installation 1. Click AC’97 Audio Driver. 2. Configures new software installation. 3. Click Configure Anyway. Chapter 4... -
Page 22: Wireless Lan Driver Installation
4. AC’97 drivers begins to install. 5.1. Select restart your computer right now or later. 5.2. Click Finish. 4.6. Wireless LAN Driver Installation 1. Click AC’97 Audio Driver. Chapter 4... - Page 23 2. On the welcome screen, click Next, and then the installation begins. 3.1. Select restart your computer right now or later. 3.2. Click Finish. Chapter 4...
-
Page 24: Power Management
Power Management The backup battery equipped on EZPPC 70 (EZPOS 70) series is as “smart” as the battery for Notebook or handheld device; you can adjust any power management option that your unique hardware configuration supports. 5.1. Enter Power Option Properties Sheet There are two alternatives to enter Power Options Properties property sheet. -
Page 25: How To Set Power Options
2. Click Screen Saver tab, and then click Power button. Option 2: 1. Click Start, click Settings, click Control Panel, and then double-click Power Options. 5.2. How to Set Power Options Power Schemes Chapter 5... -
Page 26: Alarms
You can configure power settings under Power Schemes tab. Under Power schemes area, click the drop-down list to choose a power scheme to apply settings that fit the way you use EZPPC 70. Under Settings for Home/Office Desk Power scheme area, set all parameters by clicking drop-down lists to put EZPPC 70 (EZPOS 70) on standby mode and turn off your monitor and hard disks automatically to save power upon your actual needs. - Page 27 Specify how much power level to activate these two alarms by dragging the green-white slider. Alarm Action Click Alarm Action to enter alarm actions setting sheet. On alarm actions setting sheet, select the type of alarm notification, which action EZPPC 70 (EZPOS 70) will take and which program will launch when the alarm occurs.
-
Page 28: Power Meter
Power Meter You can check power status under Power Meter tab. Check or uncheck the box to switch icon view and bar chart view. Under the icon mode, click the battery icon to show the detailed information about the battery. Chapter 5... -
Page 29: Advanced
Advanced You can specify power-saving settings by checking boxes in Options area and clicking drop-lists in Power button under Advanced tab. Hibernate Enable the hibernate function by checking Enable hibernation box. Chapter 5... -
Page 30: Touchkit Utility Quick Guide
TouchKit Utility Quick Guide 6.1. Launch TouchKit Utility There are two alternatives to launch TouchKit. Option 1: Under Microsoft Windows XP, click “start” menu and select “Programs”, under ”TouchKit” menu, click “Configure Utility”. Option 2: Click icon on the task bar to launch TouchKit utility. Chapter 6... -
Page 31: General
6.2. General The General tab in Touchkit utility shows all of TouchKit touchscreen controllers installed as below, including RS232, USB and PS2 interfaces. The function button is used for serial RS232 controllers only. Press this button to search the TouchKit serial controllers connected with the COM ports of EZPPC 70. -
Page 32: Settings
Remove This function button is used for serial RS232 controllers only. This button will be grayed and disabled automatically when the selected controller in the controller list window is not RS232 type. Press to remove and uninstall the selected serial RS232 controller from EZPPC 70. - Page 33 Beep Beep On Touch Check this check box to enable driver to generate a beep sound when touch touchscreen state is switched from untouched to touched state. Beep On Release Check this check box to enable driver to generate a beep sound when touchecreen state is switched from touched state to untouched state.
- Page 34 connected to EZPPC 70. Two continuous clicks with this specified area in the specified double click time will be recognized as a double click event. Mouse Emulation Mode Change the emulation mode by pressing on this button. Normal Mode Normal mode behaves mouse button down and mouse move. You can select this mode to select object, and dragging the object.
-
Page 35: Display
Option You can set configuration for some advanced functions with this option button. Press this button, a pop up property sheet window will be popped up and shown as below. 6.4. Display TouchKit driver utility supports multiple monitor and display system. To work with multiple monitor system, you need to do proper configuration to map the touchscreen working area to the correct system display area. - Page 36 Please follow below instructions to do the configuration: Enable multiple monitor Check this check box to enable multiple monitor support and uncheck it to disable multiple monitor support. When this function is disabled, the touchscreen will be mapped to the primary monitor automatically. When this function is enabled, user can double click on the monitor area in the monitor geometry window to assign the monitor area where the touchscreen will be mapped.
- Page 37 Left screen The touchscreen will be mapped to the left half screen of the specified monitor. Upper screen The touchscreen will be mapped to the upper half screen of the specified monitor. Lower screen The touchscreen will be mapped to the lower half screen of the specified monitor.
-
Page 38: Edge Compensation
6.5. Edge Compensation Edge Compensation property page contains functions of Edge Compensation for Top, Bottom, Left, Right, X Axis and Y Axis. In some cases, if it is difficult to touch items at the edges of the touch panel, you can set adjustment to reach the edges of the screen image. - Page 39 Right If you set the Edge to "Smaller", TouchKit will reduce the vertical position of the right edge. If you set the Edge to "Larger", TouchKit will extend the vertical position of the right edge. In some cases, cursor will be behind the finger when you touch the panel.
- Page 40 moved 10 pixel of X and Y Axis to left and bottom. Click Default button to resume to the default value. 5.2. How to Use Event Selector 1. On the desktop of Windows, click icon. icon change to 3. Now the tapping is simulating right mouse button clicking. 4.
-
Page 41: I/O Definition
I/O Definition Please refer the detailed technical information about all I/O ports as followings. 7.1. Power Connector Description Description +19V GROUND +19V GROUND 7.2. Serial Port COM Port 1/2/3/4 Description Description RI / 5V /12V Chapter 7... -
Page 42: Ps2/Com
7.3. PS2/COM PS2/COM Description Description PIN Description PC_CLK )KEYBOARD) KB_DAT KB_CLK RI / 5V /12V PC_DAT KB_EN (KEYBOARD) 7.4. Cash Drawer Connector Description Description D_OUT D_IN Chapter 7... - Page 43 Cash Drawer Control Status Address Value Open 280H Bit 4 = 0 Close 280H Bit 4 = 1 Read Status 281H Bit 0 = 0/1 Chapter 7...
-
Page 44: Specification
Specification 8.1. EZPPC70-7B-C1G, EZPPC70-7B-C15G Chapter 8... -
Page 45: Ezppc70-9B-C1G, Ezppc70-9B-C15G
8.2. EZPPC70-9B-C1G, EZPPC70-9B-C15G Chapter 8... - Page 46 Main Board ® Intel Ultra Low Voltage Celeron M 1GHz w/o L2 cache ® Intel Ultra Low Voltage Celeron M 1.5GHz w 1MB L2 cache ® Chipset Intel 852GM + ICH4 SO-DIMM DDR 200/266, 128MB up to 1GB System Memory Thermal Solution Fan-less Microsoft Windows XP, WEPOS, Windows CE.Net 5.0,...
