Kennmex K790 series User Manual

Hide thumbs Also See for K790 series:
Table of Contents

Advertisement

Quick Links

Download this manual

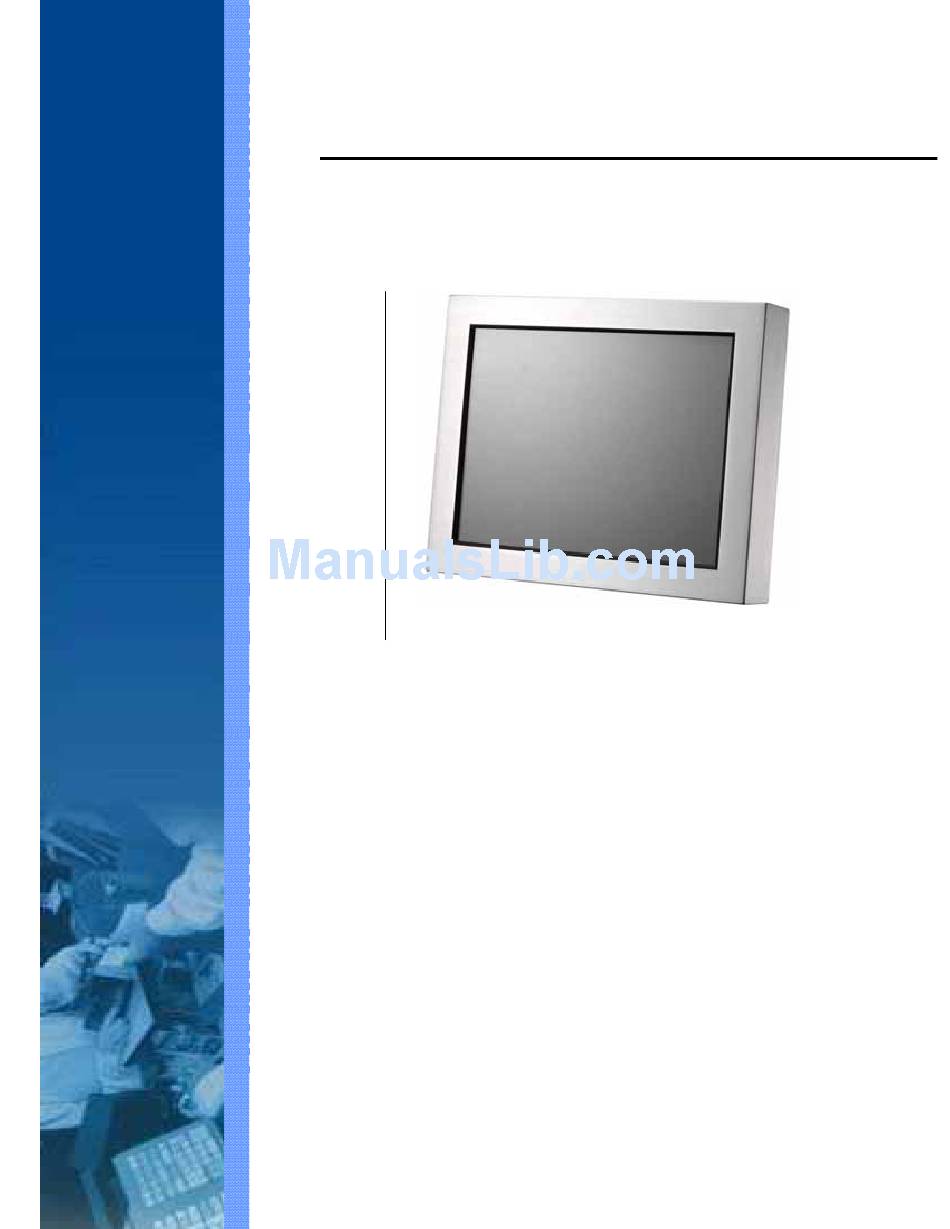

User Manual
Revision v1.3 January 2009
Panel PC Series
Hardware System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K790 series and is the answer not in the manual?

Questions and answers

Related Manuals for Kennmex K790 series

Summary of Contents for Kennmex K790 series

  • Page 1 User Manual Revision v1.3 January 2009 Panel PC Series Hardware System...
  • Page 2 Copyright 2009 Feb. All Rights Reserved Manual Version 1.3 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 Safety IMPORTANT SAFETY INSTRUCTIONS To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.
  • Page 4 CAUTION ON LITHIUM BATTERIES There is a danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. LEGISLATION AND WEEE SYMBOL 2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment, collection, recycling and disposal of electric and electronic devices and their components.
  • Page 5 Revision History Revision Description Revision Date Number Initial release May 2007 Cover page. photo update I/O view photo update chapter4. reorganized and photo updated chapter5. CPU support, Brightness, Touch Oct. 2007 Screen Type, Environment, Dimension, Mounting info updated 2nd VGA added Chapter8.

  • Page 6: Table Of Contents

    Table of Contents Item Checklist ......................6 System View........................7 2.1 Front View........................7 2.2 Rear View ........................7 2.3 I/O View .......................... 8 Drivers Installation .....................9 3.1 B78 V2.2 Driver List ......................9 3.2 B78 Chipset Driver Installation ..................10 3.3 B78 USB 2.0 Driver Installation ..................11 3.4 B78 VGA Driver Installation...................

  • Page 7: Item Checklist

    1. Item Checklist Take the system unit out of the carton. Remove the unit from the carton by holding it by the foam inserts. The following contents should be found in the carton: a. Driver CD b. COM port Cable (2) c.

  • Page 8: System View

    2. System View 2.1 Front View Touch Screen 2.2 Rear View VESA Mount Screw Holes I/O Ports HDD Cover - 7 -...

  • Page 9: I/O View

    2.3 I/O View Cash Drawer Line Out COM1,2,3,4 Parallel DC IN MIC-in Power - 8 -...

  • Page 10: Drivers Installation

    3. Drivers Installation 3.1 B78 V2.2 Driver List Folder/File File Description <CD>:\ K790_B78.htm Driver List <CD>:\COMMON\INTEL\Chipset\i8xx Chipset Driver <CD>:\COMMON\INTEL\USB20 USB 2.0 Driver <CD>:\COMMON\INTEL\VGA\i85x VGA Driver <CD>:\COMMON\Ac97_codec\Realtek\ALC202A Audio Driver <CD>:\COMMON\ POS_Touch POSTouch Driver <CD>:\COMMON\ELO_Touch ELO Touch Driver <CD>:\COMMON\Lan_driver\Realtek_PCI 10/100/1000Mb LAN Driver -The following procedures are for Windows 2000/XP, other platforms are similar.

  • Page 11: B78 Chipset Driver Installation

    3.2 B78 Chipset Driver Installation a. Double-click b. Click the “Next” button on the “infinst_enu_6.0.1.1002.exe” on the Welcome window. My computer window. c. Click the “Yes” button on the License d. Click the ”Next” button on the Agreement window. Readme Information window. e.

  • Page 12: B78 Usb 2.0 Driver Installation

    3.3 B78 USB 2.0 Driver Installation OS Requirements USB 2.0 requirements USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows XP, Windows XP which is available through Windows Update. USB 2.0 drivers are available through Windows Update or Service Windows 2000 Pack 4.
  • Page 13 a. Right click My Computer on the b. Select “Hardware” ”Device desktop and select “properties” Manager” on system properties c. Select ”Other Devices” “Universal Serial Bus (USB) Controller” ”Properties” on Device Manager d. Select “Device” “Update Driver e. Click the ”Next” button on the welcome window.
  • Page 14 f. Select “Search for a suitable…”and g. Select “Specify a location” and click click the “Next” button on the Install the “Next” button on the Locate Driver Hardware Device Drivers window Files window. h. Press “Browse” to select the driver i.

  • Page 15: B78 Vga Driver Installation

    3.4 B78 VGA Driver Installation a. Double-click on “Win2K_XP” on the b. Double-click on “v14.19.50” My Computer window. c. Double-click on d. Click the “Next” button on the Intel(R) “win2K_xp141950.exe” Chipset Graphics Driver Software- Install Shield(R) Wizard window. e. Click the “Next” button on the Intel(R) f.
  • Page 16 g. Select “Yes, I want to restart my computer now” and click the “Finish” button on the Intel(R) Graphics Media Accelerator Driver window. - 15 -...

  • Page 17: B78 Audio Driver Installation

    3.5 B78 Audio Driver Installation a. Double-click “A3.71” on the My b. Double-click “wdm_a371.exe” on the Computer window. My Computer window. c. Click “Next” button on the Realtek d. Click “Yes” button on the Digital AC’97 Audio Setup window. Signature Not Found window. e.

  • Page 18: B78 10/100/1000Mb Lan Driver Installation

    3.6 B78 10/100/1000Mb LAN Driver Installation a. In the Realtek RTL8110 section, click b. Double-click v681 on Win9X, ME, 2K, XP c. Double-click Setup.exe d. Click the Finish button on the Maintenance Complete window. e. Click the OK button and restart your system.

  • Page 19: B78/B98 Postouch Driver Installation

    3.7 B78/B98 POSTouch Driver Installation a. In the POSTouch section, click b. Double-click on v3.3.1.30. Windows. c. Double-click Setup.exe. d. Click Next. e. Select I agree… and click Next. f. Select the installation folder for the touch utility driver and click Next. - 18 -...
  • Page 20 g. Select the shortcut folder for the touch h. Click Next. utility driver and click Next. i. Click Next. j. The computer is installing the touch driver k. Click Continue Anyway. l. The serial ports are scanned for a touch device. The Touch panel is on COM5.
  • Page 21 m. Click Finish. n. Click OK to restart the computer and finish the touch utility installation. o. The computer has restarted. Click on p. Select the Device tab. the Start button, select Programs, then select Touchutility. q. Click on the 3 points or the 9 points r.
  • Page 22 s. Touch the screen to save the calibration - 21 -...

  • Page 23: B78/B98 Elo Touch Driver Installation

    3.8 B78/B98 ELO Touch Driver Installation a. In the ELO section, click on Windows b. Click OK. c. Click Unzip to extract the driver to the d. Finished unzipping. Click OK. specified folder. f. Check the box Install Serial e. Click Next. Touchscreen Drivers and click Next.
  • Page 24 g. Click Yes to accept the End User h. Examining serial ports on the License Agreement computer i. Check the box Auto-detect Elo j. The computer is searching for a devices and click Next. connected to Elo Touchscreen k. Touchscreen found on COM5. Click l.
  • Page 25 m. Driver is installing n. The driver installation and setup are now complete. Click Finish to start the touchscreen calibration. o. Follow the instructions on the screen p. Verify that the touchscreen is working to calibrate the Touchscreen. correctly by moving your finger on the screen.

  • Page 26: B98 V1.0 Driver List

    3.9 B98 V1.0 Driver List Folder/File File Description <CD>:\K790_B98.htm Driver List <CD>:\COMMON\INTEL\Chipset\i9xx Chipset Driver <CD>:\COMMON\INTEL\VGA\i94x VGA Driver <CD>:\COMMON\Audio\Realtek_HD_Codec Audio Driver <CD>:\COMMON\ POS_Touch POSTouch Driver <CD>:\COMMON\ELO_Touch ELO Touch Driver <CD>:\COMMON\Lan_driver\Realtek_PCIe 10/100/1000Mb LAN Driver -The following procedures are for Windows 2000/XP, other platforms are similar. - 25 -...

  • Page 27: B98 Chipset Driver Installation

    3.10 B98 Chipset Driver Installation a. In the Chipset section, click on b. Double-click v8.3.0.1013. Windows c. Double-click d. Click Next infinst_autol_V8.3.0.1013.exe. e. Click Yes. f. Click Next. - 26 -...
  • Page 28 g. The driver installation starts… h. Click Next. i. Click Finish to restart the system. - 27 -...

  • Page 29: B98 Vga Driver Installation

    3.11 B98 VGA Driver Installation a. In the VGA section, click on b. Double-click v14.32.3. Win2K_XP. c. Double-click win2k_xp14323.exe d. Click Next. e. Extracting files… f. Click Next. - 28 -...
  • Page 30 g. Click YES to accept the license h. Click Next. agreement i. Click Next. j. Select Yes... and click Finish to restart the computer - 29 -...

  • Page 31: B98 Audio Driver Installation

    3.12 B98 Audio Driver Installation a. In the Realtek HD Codec section, click b. Double click on v1.85 on Win2K, XP, 2003 c. Double-click WDM_R185.exe d. Driver files are extracted… f. The computer is installing the Audio e. Click Next. HD driver.
  • Page 32 g. Select “Yes, I want to restart my computer” and click Finish. - 31 -...

  • Page 33: B98 10/100/1000Mb Lan Driver Installation

    3.13 B98 10/100/1000Mb LAN Driver Installation a. In the Realtek RTL8111 section, click b. Double-click v686. on Win9X, ME, 2K, XP. c. Double-click Setup.exe d. Click Next. e. Click Install to begin the driver f. The driver is being installed… installation.
  • Page 34 g. Click Finish to complete the installation. - 33 -...

  • Page 35: System Disassembly And Installation

    4. System Disassembly and Installation 4.1 Replacing Slim HDD a. Loosen the screw (1) on the HDD b. Remove the HDD Door Door c. Disconnect the Cable (1) to replace the HDD - 34 -...

  • Page 36: Opening The Rear Cover

    4.2 Opening the Rear Cover To replace the Heatsink, Fan and CPU, please first follow the steps in chapter 4.1. a. Disconnect HDD Cable (Refer to b. Loosen the screw (15) on the rear Chapter 4.1) cover c. Remove the rear cover - 35 -...

  • Page 37: Replacing The Touch Board

    4.3 Replacing the Touch Board To replace the touch board, please first follow the steps in chapter 4.1 and 4.2. a. Remove the screws (2) and disconnect Cables (2) to replace the touch board. 4.4 Replacing the Inverter Board To replace the touch board, please first follow the steps in chapter 4.1 and 4.2. a.

  • Page 38: Replacing The Speakers

    4.5 Replacing the Speakers To replace the speakers, please first follow the steps in chapter 4.1 and 4.2. B78 MB B98 MB a. Remove screws (4) and disconnect a. Remove screws (4) and disconnect cable (1) to replace speakers (2) cable (1) to replace speakers (2) - 37 -...

  • Page 39: Replacing Heatsink, Fan And Cpu Of B78

    4.6 Replacing Heatsink, Fan and CPU of B78 To replace the Heatsink, FAN and CPU, please first follow the steps in chapter 4.1 and 4.2. b. Disconnect the fan cable (1) and c. Turn the socket lock screw 180 loosen the screws (4) to remove the degrees to unlock it and remove the heatsink / fan CPU.

  • Page 40: Replacing The Motherboard Of B78

    4.7 Replacing the Motherboard of B78 To replace the speakers, please first follow the steps in chapter 4.1, Chapter 4.2 and Chapter 4.6. Touch Inverter Speaker a. Remove screws (7) and disconnect cable (5)-Inverter, Touch, LCD Interface, Speaker and VGA cables to replace B78 MB (2) - 39 -...

  • Page 41: Replacing The Motherboard Of B98

    Replacing the Motherboard of B98 To replace the speakers, please first follow the steps in chapter 4.1 and 4.2. a. Loose Screws (4) and spring (1) and b. To slightly revolve the spring disconnect FAN cable (1) to firstly connected the FAN and M/B to show loose FAN, the screws under FAN.

  • Page 42: Replacing Heatsink, Fan And Cpu Of B98

    4.9 Replacing Heatsink, Fan and CPU of B98 To replace the Heatsink, FAN and CPU of B98, please first follow the steps in chapter 4.1, Chapter 4.2 and Chapter 4.7 to remove FAN and then replace the CPU secondly. a. Turn the socket lock screw 180 b.

  • Page 43: To Replace 2 Nd Fan Of B98 M/B

    4.10 To replace 2 Fan of B98 M/B To replace the 2 Fan of B98, please first follow the steps in chapter 4.1 and Chapter 4.2 to remove the rear cover. a. 2 Fan location b. Turn to the back of rear cover and loose screws (4) c.

  • Page 44: Specification

    5. Specification Model Name K792 K795 K797 K799 Motherboard Celeron M 1.86GHz; Intel Celeron M 1.5GHz; CPU Supports Core Due 2.0GHz; Pentium M 1.6GHz/1.8GHz Core 2 Due 1.66GHz/2.16GHz Chipset Intel 852GM and ICH4 Intel 945GME+ ICH7M System Memory 2 x DDR SO-DIMM slot, up to 2 GB 2 x DDRII SO-DIMM slot, up to 4 GB Graphic Memory Share system memory max 64MB...
  • Page 45 Audio Speaker 1 x 3W Speaker 2 x 3W Speakers Power Power Adapter DC 19V / 90W Environment EMC & Safety FCC Class A, CE, LVD Operating 0° C ~ 40° C (32° F ~ 104° F) Temperature Storage Temperature -20°...

  • Page 46: Jumper Settings

    6. Jumper Settings 6.1 B78 Jumper Settings 6.1.1 B78 V2.2 Motherboard layout - 45 -...
  • Page 47 6.1.2 B78 V2.2 connectors Connector Function BAT1 CMOS Battery Base ( Use CR2023) Audio Line Out Audio MIC In Internal Power Switch Speaker & MIC Connector CD-IN Connector CN11 Power Connector For 3.5" HDD CN13 COM5 for Touch CN15 CPU FAN Connector CN16 Hardware Reset CN18...
  • Page 48 6.1.3 B78 V2.2 Jumper settings Location JP10 / JP9 B78 V2.2 COM2 RS232/485/422 Setting JP10 Function (1-2) (3-4) (5-6) (7-8) (9-10) (11-12) (1-2) (3-4) (4-6) (5-7) (7-8) (9-10) 1 3 5 7 9 11 1 3 5 7 9 RS232 2 4 6 8 10 12 2 4 6 8 10 1 3 5 7 9 11...
  • Page 49 B78 V2.2 COM3 & COM4 Power Setting Function Location (1-2) (3-4) (5-6) (7-8) (9-10) (11-12) 1 3 5 7 9 11 2 4 6 8 10 12 1 3 5 7 9 11 COM3 Pin10 Location 2 4 6 8 10 12 1 3 5 7 9 11 +12V 2 4 6 8 10 12...
  • Page 50 B78 V2.2 Cash Drawer Power Setting Function (1-2) (3-4) 5-6) Location 1 3 5 +12V 2 4 6 1 3 5 +19V 2 4 6 = Default B78 V2.2 LCD ID Setting LVDS Panel # Resolution (1-2) (3-4) (5-6) (7-8) Bits Channel 1 3 5 7...
  • Page 51 LVDS Panel # Resolution (1-2) (3-4) (5-6) (7-8) Bits Channel 1 3 5 7 Single 2 4 6 8 1 3 5 7 Single 2 4 6 8 1 3 5 7 1024 Single 2 4 6 8 1 3 5 7 1440 Dual 2 4 6 8...
  • Page 52 B78 V2.2 Power Mode Setting Function (1-2) ATX Power AT Power Location B78 V2.2 CMOS Operation Mode Function (1-2) CMOS Normal JP13 CMOS Reset JP14 B78 V2.2 USB Path Setting Function JP14 (1-2) To Docking To MB B78 V2.2 System Indicator Function JP13 Function (1-2) (3-4) (5-6) (7-8)

  • Page 53: B98 Jumper Settings

    6.2 B98 Jumper Settings 6.2.1 B98 V1.0 Motherboard layout - 52 -...
  • Page 54 6.2.2 B98 V1.0 Connectors Connector Purpose BAT3 CMOS Battery Base (Use CR2023) Audio Line Out MIC In Internal Power On Switch Connector Speaker & MIC Connector Internal LAN LED CN11 CD-IN / Line-In Connector CN12 LCD Interface Connector CN13 IrDA Connector CN14 Inverter Connector CN15...
  • Page 55 6.2.3 B98 V1.0 Jumper Setting Location JP6 / JP4 B98 V1.0 COM2 RS232/485/422 Setting Function (1-2) (3-4) (5-6) (7-8) (9-10) (11-12) (1-2) (3-4) (4-6) (5-7) (7-8) (9-10) 1 3 5 7 9 11 1 3 5 7 9 RS232 2 4 6 8 10 12 2 4 6 8 10 1 3 5 7 9 11 1 3 5 7 9...
  • Page 56 B98 V1.0 COM3 & COM4 Power Setting Function Location (1-2) (3-4) (5-6) (7-8) (9-10) (11-12) 1 3 5 7 9 11 2 4 6 8 10 12 1 3 5 7 9 11 COM3 Pin10 2 4 6 8 10 12 Location 1 3 5 7 9 11 +12V...
  • Page 57 B98 V1.0 Cash Drawer Power Setting Function (1-2) (3-4) 5-6) 1 3 5 +12V Location 2 4 6 1 3 5 +19V 2 4 6 = Default B98 V1.0 LCD ID Setting LVDS Panel # Resolution (1-2) (3-4) (5-6) (7-8) Bits Channel 1 3 5 7...
  • Page 58 B98 V1.0 Power Mode Setting Function JP11 (1-2) ATX Power Location AT Power B98 V1.0 CMOS Operation Mode Function (1-2) JP11 CMOS Normal JP12 CMOS Reset B98 V1.0 System Indicator Function JP12 Function (1-2) (3-4) (5-6) (7-8) 1 3 5 7 Disable 2 4 6 8 1 3 5 7...

  • Page 59: Bios Settings

    7. BIOS Settings 7.1 BIOS Setup Utility The BIOS setup defines how the system is configured. You need to run this program the first time you configure this product. You may need to run it again if you change the configuration. You need to connect a PC keyboard to the keyboard connector to run the BIOS setup utility.
  • Page 60 Standard CMOS Features Use this menu for basic system configuration. Advanced BIOS Features Use this menu to set the Advanced Features available on the system. Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize the system’s performance.
