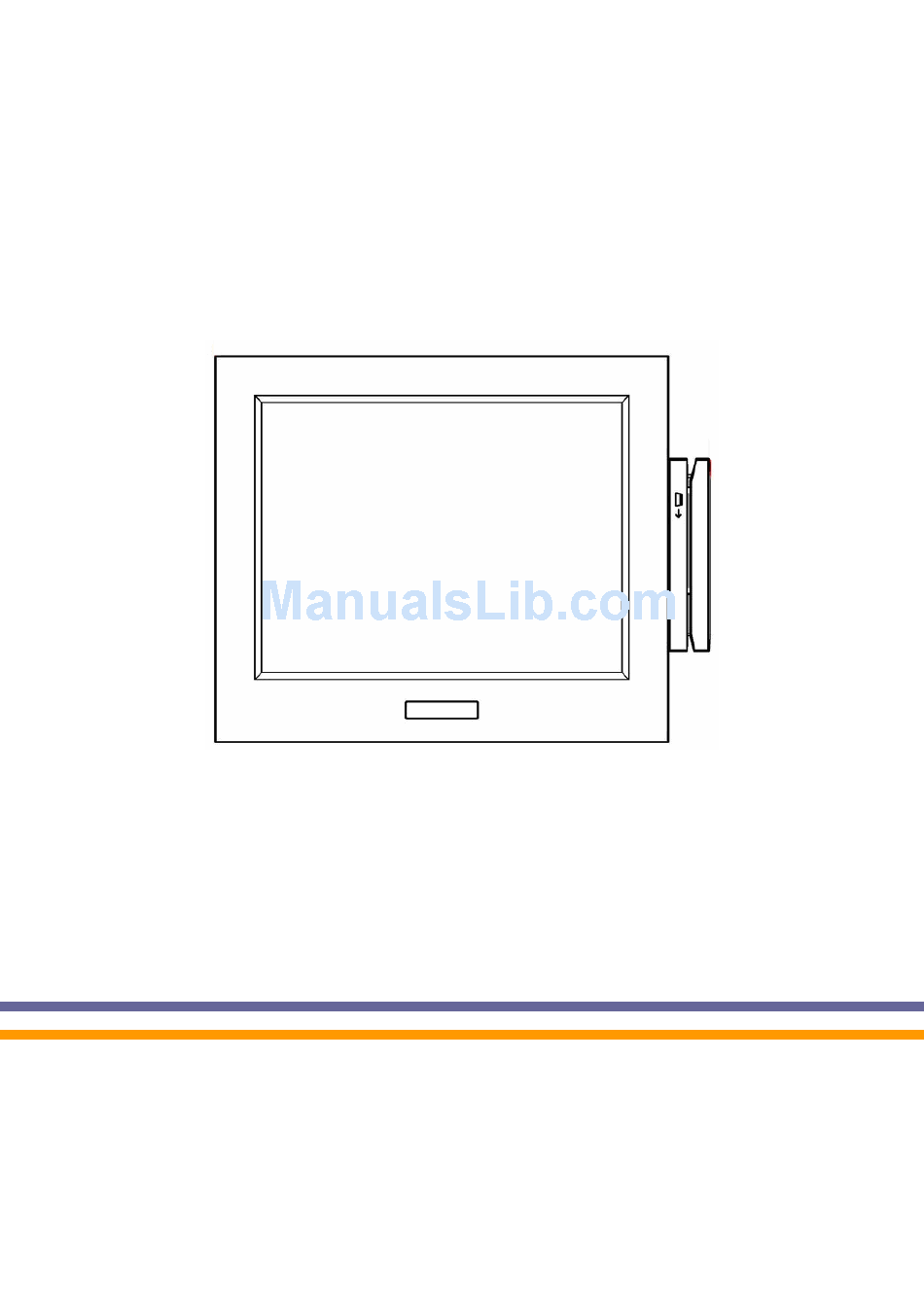

  • Page 1 K875 User Manual 2006 November V1.1...

  • Page 2: Safety

    Safety IMPORTANT SAFETY INSTRUCTIONS • Read these instructions carefully. Keep these instructions for future reference. • Follow all warnings and instructions marked on the product. • Do not use this product near water. • Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

  • Page 3: Table Of Contents

    Table of Contents Safety ............................2 Accessories ........................4 Components ........................4 2.1. Front View........................4 2.2. Rear View ........................5 2.3. Button Cover View ......................5 2.4. I/O Function........................6 Specification........................6 Installing External Devices....................8 4.1. Wall Mount Kit ........................ 8 4.2.

  • Page 4: Accessories

    1. Accessories Power Cord (1) RJ45-DB9 Converter Cable (4) Driver CD (1) Power Brick (1) 2. Components 2.1. Front View Touch Screen LED Lens...

  • Page 5: Rear View

    2.2. Rear View Wall Mount HDD Cover Button Cover Cable Cover 2.3. Button Cover View Power Button Brightness - Volume + Brightness + Volume -...

  • Page 6: I/O Function

    LINE-Out USB (2) DC Jack Cash Drawer COM (4) USB (2) 3. Specification System K875 Mainboard CPU Support Intel Celeron M1.3GHz; Pentium M1.8GHz; Chipset Intel 852GM and ICH4 FSB 400Mhz System Memory 2 x DDR SO-DIMM sockets, up to 2G...
  • Page 7 4 ports (V2.0) Serial / COM 4 x COM ports RJ-45 connectors (COM1 standard RS-232; COM2 RS232/422/485 selectable by jumper; COM3 & COM4 pin 9 with 5V or 12V power by jumper) Parallel 1 x D-sub 25-pin connector LAN (10/100) 1 x RJ45 Cash Drawer 1 x RJ-11 (12V or 24V)

  • Page 8: Installing External Devices

    Dust & Water Resistance NEMA 3 / IP55 (Front Bezel) Dimensions (W x D x H) 386 x 330 x 65 mm / 15.2” x 13” x 2.6” Weight 5.1kg / 11lbs Mounting 75 mm x 75 mm & 100 mm x 100mm Standard VESA mounting holes OS Support WinXP Pro, Xpe, WEPOS, Windows NT 4.0 / 2000...
  • Page 9 3. Hang the system on the wall mount kit holder. 4. Tighten the screw (2). Screw (1) Screw (1)

  • Page 10: Msr

    4.2. MSR 1. Remove th e screws (3). Screws (3) . Slide the MSR cover out and disconnect the cable (1). Cable (1)

  • Page 11: Jumper Setting

    5. Jumper Setting 5.1. Main Board Jumper Setting CMOS Operation Mode Function CMOS Normal ◎N/C CMOS Reset To clear the CMOS: 1) Remove AC power from the unit. 2) Open the cabinet. 3) Change the JP8 jumper setting from N/C to 1-2. 4) Wait 1 minute.
  • Page 12 COM3 – 4 Power Setting Function COM3 PIN10_RI ◎1-2 COM3 PIN10_+5V COM3 PIN10_+12V COM4 PIN10_RI ◎7-8 COM4 PIN10_+5V 9-10 COM4 PIN10_+12V 11-12 Card Reader Setting Function ◎Ducking On Board JP11 (1-2) JP11 (3-4) LCD ID Setting Panel Resolution LVDS Number Bits Channel Single...

  • Page 13: Driver Installation

    COM2 RS232 / 485 / 422 Setting Function RS232 RS485 RS422 JP9 (1-2) JP9 (3-4) JP9 (4-6) JP9 (5-7) JP9 (7-8) JP9 (9-10) JP10 (1-2) JP10 (3-4) JP10 (5-6) JP10 (7-8) JP10 (9-10) JP10 (11-12) Note: OPEN SHORT 6. Driver Installation 6.1.

  • Page 14: Usb 2.0 Driver Installation

    6.2. USB 2.0 Driver Installation OS Requirements USB 2.0 requirements Windows USB 2.0 drivers are provided in Service Pack 1 (SP1) for Windows XP, which is available through Windows Update. Windows USB 2.0 drivers are available through Windows Update or Service Pack 4. 2000 Windows USB 2.0 drivers are available on the...
  • Page 15 Select ”Other Devices” “Universal Serial Bus (USB) Controller” ”Properties” on Device Manager. Select “Device” “Update Driver…”. Click the ”Next” button on the welcome window.
  • Page 16 Select “Search for a suitable…”and click the Select “Specify a location” and click the “Next” button on the Install Hardware Device “Next” button on the Locate Driver Files Drivers window. window. Press “Browse” to select driver and then click Click the “Next” button on Driver Files the “OK”...

  • Page 17: Vga Driver Installation

    Click the “Finish” button to complete this Finished. process. 6.3. VGA Driver Installation Double click “win2k_xp147” on the My Click the “Next” button on the Welcome Computer window. window.
  • Page 18 Click the ”Next” button on the Welcome Click the ”Yes” button on the License window. Agreement window. Click the ”Finish” button and restart your system.

  • Page 19: Resistive Touch Driver Installation

    6.4. Resistive Touch Driver Installation Double click ”Setup” on the My Computer Click the “OK” button on the Welcome window. Click ”Yes” button on the License Click ”Next” button on the Choose Agreement window. Destination Location window.
  • Page 20 Click the “Next” button on the Select Click the “Finish” button on the Program Folder window. InstallShield Wizard Complete window. Click the “Continue Anyway “ button on Click the ”OK” button and restart your the Hardware Installation window system.
  • Page 21 After the computer restarted, select“Programs Automatically scan serial port for touch. →TouchUtility→Scan RS232 Touch Device”. Select “Programs→TouchUtility Click “Scale / Offset” on the POSTouch Utility →TouchUtility”. window.
  • Page 22 Calibrate three red flash points. Select “Device→9Pts Calibration” on the POSTouch Utility window. Calibrate nine red flash points. Then, click “Exit” on the POSTouch Utility window.

  • Page 23: Saw Touch Driver Installation

    6.5. SAW Touch Driver Installation Click ”sw500930” on the My computer Click the “OK” button on the Welcome window. window. Click the ”Unzip” button on the WinZip Select “Install Serial Touchscreen Drivers” and Self-Extractor window. then click the “Next” button on the Welcome window.
  • Page 24 Click the “Yes” button on the License Click the “Next” button on the on the “Select Agreement window. the COM ports…” window. Select “COM5” and click the “Next” button on Click the “Next” button on the You have the Choose the COM ports… window. selected the COM ports…window.

  • Page 25: Audio Driver Installation

    After the computer restarted, click “Align” on Calibrate three red points. the Elo Touchscreen Properties window. 6.6. Audio Driver Installation Click “A3.71” on the My Computer window. Double click “wdm_a371” on the My Computer window.
  • Page 26 Click “Next” button on the Realtek AC’97 Click “Yes” button on the Digital Signature Audio Setup window. Not Found window. Click “Finish” button on the Realtek AC’97 Audio Setup window.

  • Page 27: Lan Driver Installation

    6.7. LAN Driver Installation Double click the ”Setup” on the “My Computer” Click the “Finish” button on the “Maintenance window. complete” window. Click the ”OK” button and restart your system.

  • Page 28: Intel (R) Proset Driver Installation

    6.8. Intel (R) PROSet Driver Installation Select “Autorun Intel Corporation” on the Select “Install Software” on the “Intel (R) “My Computer” window. PROSet/Wireless Installer” window. Select “I accept the terms in the license Select “Typical” and click the “Next” button on agreement”...

  • Page 29: Bios Updating Procedure

    This chapter discusses procedures on how to update the terminal BIOS by using the CD-ROM drive. The software is distributed on bootable CD-ROM media. Since the K875 does not have an internal CD-ROM drive, the terminal supports the following external CD-ROM drive.
  • Page 30 BIOS Update Connecting an External USB CD-ROM Drive 1. Connect the external USB CD-ROM drive to a USB connector on the terminal. 2. Connect the Power Supply to the DC Power connector on the CD-ROM and to an AC outlet. 3.

  • Page 31: Default Bios Setting

    8. Insert the media containing the BIOS update software. 9. Follow the screen prompts on the client to update the BIOS. You can select two methods to run the update program. • Automatic BIOS Update – update process runs unattended Note: You will see a prompt for terminal model and serial number information if the program detects invalid information in the current BIOS, or if you are replacing the processor board, in which case there is not model/serial number information in the BIOS.

  • Page 32: Advanced Chipset Features

    Advanced BIOS Feature Quick Power On Self Test [Enabled] First Boot Device [USB-FDD] Second Boot Device [HDD-0] Third Boot Device [CDROM] Boot Other Device [Disabled] Boot Up NumLock Status [On] Typematic Rate Setting [Enabled] Typematic Rate (Chars / Sec) [30] Typematic Delay (Msec) [250] Security Option...
  • Page 33 Onboard Device USB Controller [Enabled] USB 2.0 Controller [Enabled] AC97 Audio [Auto] SuperIO Device Serial Port 1 [3F8] Serial Port 1 Use IRQ [IRQ4] Serial Port 2 [2F8] Serial Port 2 Use IRQ [IRQ3] UART Mode Select [Normal] RxD , TxD Active [Hi , Lo] IR Transmission Delay [Enabled]...

  • Page 34: Power Management Setup

    X Serial Port 4 USE IRQ IRQ10 Serial Port 5 [4F8] X Serial Port 5 USE IRQ IRQ10 Serial Port 6 [4E8] Serial Port 6 Use IRQ [IRQ10] Serial Port 3-6 IRQ Share [Enabled] Power Management Setup Power – Supply Type [ATX] Power On Control [Press Enter]...
  • Page 35 PnP/PCI Configurations PNP OS Installed [No] Reset Configuration Data [Disabled] Resources Controlled By [Auto(ESCD)] IRQ Resources Press Enter INT Pin 1 Assignment [Auto] INT Pin 2 Assignment [Auto] INT Pin 3 Assignment [Auto] INT Pin 4 Assignment [Auto] INT Pin 5 Assignment [Auto] INT Pin 6 Assignment [Auto]...
