LE2700 Series Switches Quick Start Guide
1. Launch the Internet Explorer and type in the IP address of the switch. The
default static IP address is 192.168.10.1.
2. Log in with the default user name and password (both are admin). After
logging in, you should see the Information Message screen. For more informa-
tion or configurations, refer to the user manual. For information on operating
the switch using B-Ring's Open-Vision management utility, go to the Black Box
Web site.
Resetting
To reboot the switch, press and hold the Reset button for 5 seconds. To restore
the switch configurations back to the factory defaults, press the Reset button for
5 seconds.
Ethernet Standards
See the user manual.
Jumbo Frames
Up to 9.6 KB
MAC Table
8 K
Network Redundancy
MRP,
MSTP (RSTP/STP compatible)
Priority Queues
8
Processing
Store-and-forward
Security Features
See the user manual.
Software Features
See the user manual.
Connectors
LE2700A, LE2700AE, LE2700UK:
RS-232 Serial Console Port: (1) RJ-45
via console cable, 115200 bps, 8, N, 1;|
Fault contact: 24-VDC, 1-A relay;
LE2710C: (4) 100FX SC;
LE2711C: (4) 100FX ST;
LE2720C: (8) 10/100/1000BASE-T RJ-45;
LE2721C: (8) slots for 10/100-Mbps
SFP modules;
LE2722C: (4) slots for 100/1000-Mbps
SFP modules (for use in chassis slot 4);
LE2731C: (4) slots for 10GE SFP+
modules (for use in chassis slot 4)
Power
Input: Dual 88–264 VAC/100–370 VDC
power inputs at terminal block;
Consumption (Typ.): 43.5 watts max.;
Overload Current Protection: Present
Dimensions
1.73"H x 17.32"W x 12.8"D (4.4 x 44 x
32.5 cm), 19" rackmountable
Weight
14.5 lb. (6.6 kg)
Approvals
See the user manual.
To download the user manual from the Black Box Web site:
1. Go to www.blackbox.com
2. Enter the part number (LE2700A) in the search box:
3. Click on the "Resources" tab on the product page, and select the document
you wish to download.
724-746-5500 | blackbox.com
LE2700 Series Switches Quick Start Guide
LED
Color
Status
PWR
Green
On
Green
Blinking
PW1
Green
On
PW2
Green
On
R.M.
Green
On
Ring
Green
On
Green
Slowly
blinking
Green
Fast
blinking
Fault
Amber
On
DEF
Green
On
RMT
Green
On
Customer
Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
© Copyright 2014. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Any other trademarks mentioned in this manual
are acknowledged to be the property of the trademark owners.
LE2700A QSG, rev. 1
724-746-5500 | blackbox.com
Page 5
LED indicators.
Description
DC power on
Upgrading firmware
DC power module 1 activated
DC power module 2 activated
Ring Master
Ring enabled
Ring structure is broken (i.e. part of the ring is
disconnected)
Ring disabled
Errors (power failure or port malfunctioning)
System reset to default
Accessed remotely
Page 6
LE2700A
LE2700AE LE2711C LE2722C
LE2700UK LE2720C LE2731C

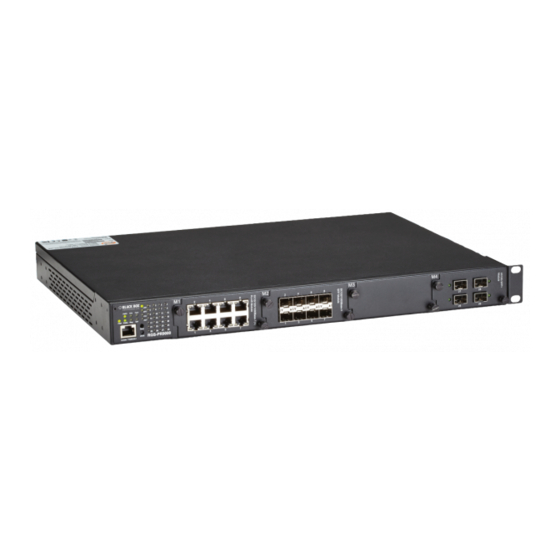

LE2700 Series Hardened Switches
Quick Start Guide
This hardened managed modular Layer 2 switch
holds 10/100/1000BASE-T RJ-45 and SFP
modules, and/or 10GE SFP+ and 100-Mbps
fiber ST and SC modules in four module slots.
1. Introduction
The LE2700 Series Hardened Managed Modular Switches are ideal for industrial
Ethernet applications. Use them to control and monitor equipment at oil/gas wells
transmission facilities, water/wastewater, IP security/surveillance cameras and
alarms, utilities, or building HVAC systems.
The LE2700 Series Hardened Managed Modular Switches are scalable, flexible,
cost-effective, and reliable. The 4-Slot Chassis is a Layer 2 modular rackmount
managed Gigabit Ethernet switch with four module slots. 8-port
10/100/1000BASE-T RJ-45 and SFP modules, and 4-port 10GE SFP+ and 100-
Mbps fiber ST and fiber SC modules are also available.
2. What's Included
Your package should include the following items. If anything is missing or dam-
aged, contact Black Box Technical Support
at 724-746-5500 or info@blackbox.com.
LE2700A:
• LE2700 Series Hardened Managed Modular Switch with power supply
• U.S. power cord
LE2700AE:
• LE2700 Series Hardened Managed Modular Switch with power supply
• EU. power cord
LE2700UK:
• LE2700 Series Hardened Managed Modular Switch with power supply
• UK power cord
724-746-5500 | blackbox.com
LE2710C LE2721C
