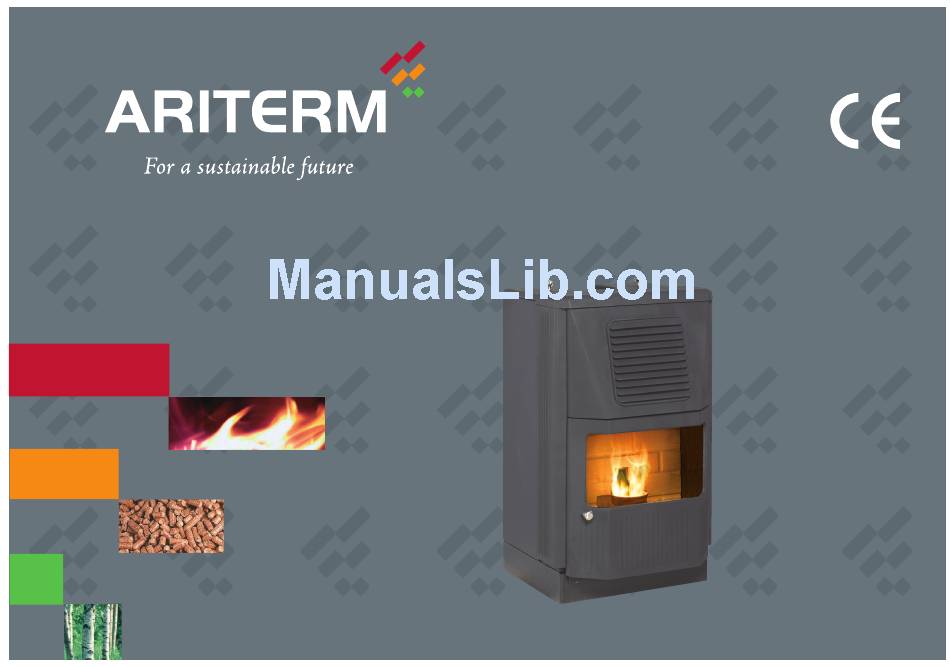

- Page 1 ARITERM-SP-PX26868-B.1 INSTALLATION and OPERATING INSTRUCTIONS PELLET STOVE MYSINGE...
- Page 3 Vacuum the inside of the stove annually to keep the fans clean. See section 3.5. • If you have installed Ariterm Arrow, ash must be removed from it at least once every firing season. NOTE! When you start your stove for the first time there may be a slight smell of paint, this is because the paint on the stove body must cure fully before one can obtain odour free operation.
- Page 4 PELLET STOVE ARITERM MYSINGE ARITERM-SP-PX26868-B.1 ARITERM SWEDEN AB Installation Instructions - 2013.10.10 - 4/20...
-
Page 5: Table Of Contents
Three safety thermostats are mounted together with the Ariterm Arrow ....... 11 switches in a safety coil to prevent overheating. -
Page 6: Components
PELLET STOVE ARITERM MYSINGE 1.2 Components The top (1) lies loose on top of the stove, with two guide lugs or is locked with quick release locks. The top is lifted to access the cleaning hatch (2). When there is a hatch it... -
Page 7: Technical Data
PELLET STOVE ARITERM MYSINGE 1.3 Technical data 1.4 Control panel Heating output HI / LO ........approx. 6 / 3,5 kW The control panel has a display and adjustment dial (see fig. 3): Pellet hopper ........38 litres (approx. 20 - 25 kg*) - The display shows the operating mode and the current temperature. - Page 8 PELLET STOVE ARITERM MYSINGE Installing the control panel Removing the control panel 1. Install the wall mounting with 2 screws. 1. Slide the panel straight up. 2. Hook one corner of the panel onto the wall mounting. 2. Lift the panel straight out from the wall 3.
-
Page 9: Safety System
PELLET STOVE ARITERM MYSINGE Main menu 1.5 Safety system Start? (Stop?) - Confirm by pressing once to start (stop). Stop T - Press to select and adjust desired stop temperature. The stove is equipped with five independent safety systems. Usermenu - Press for Usermenu. -
Page 10: Control Duration
PELLET STOVE ARITERM MYSINGE 1.6.1 control process Otherwise the electronics manage all processes as follows: START • LOW OUTPUT • Time Events Comments Time Events Comments 0 secs • Firing element on. After "Start". • ”LoPower” scrolls through the The time depends on the set •... -
Page 11: Installation
We also recommend that a chimney fan is installed. 2.4 Ariterm Arrow Information about installation with Ariterm Arrow instead of a traditional chimney is available in a separate manual. See Arrow Wall fan Installation and Operation instructions. -
Page 12: Electrical Connection
PELLET STOVE ARITERM MYSINGE 2.5 Electrical connection white black The back of the stove is equipped with a orange Light sensor 1.5 m long cable with plug, which must be black black black connected to a 230 V 50 Hz mains supply. -
Page 13: Operation And Maintenance
PELLET STOVE ARITERM MYSINGE 3 Operation and maintenance 3.2 Ash removal The stove is designed for a long service life, motors and other moving parts are of a very high The amount of ash that build up in the burner varies depending partially on how the stove quality. -
Page 14: Sweeping
Remove the soot rakes as follows: Use the handle for the door to open the front of Ariterm Mysinge. 1. The silicon seal seals against the stove body. Slide the handle diagonally upwards and then to the side (see above). -
Page 15: Fault Tracing And Remedy
PELLET STOVE ARITERM MYSINGE 3.6.1 Fault tracing and remedy Cause Action Cause Action Fault Fault • Too much ash in the crucible or Clean the burner crucible. • The cable is not connected. Connect to earthed 230V socket. Black ash or soot on The stove does blocked vent. - Page 16 PELLET STOVE ARITERM MYSINGE Error codes Cause Action Cause Action Error code Error code • Power failure. Check the electrical connection. • Incorrectly adjusted fuel and/or See Menu. Powfail. ErrorHI: air amount. The flame sensor has ("FeedHI" or "Fan HI") not detected a flame •...
-
Page 17: Removal
PELLET STOVE ARITERM MYSINGE Flame detector 4 Removal Burner Terminal block 4.1 Burner 1. Open the door and remove the ash box. Combustion fan 2. Remove the four screws holding the burner flange to the stove wall (fig 10). 3. Pull the burner straight out until the cables connecting the burner to the control circuit board are visible. -
Page 18: Hot Air Fan
4.5 Hot air fan Work is best carried out with both side hatches removed, but they can also be accessed For warranty issues Ariterm Sweden AB refers to our local Distributor. from one side or the other. 1. Remove the plug from the wall socket. -
Page 19: Declaration Of Conformity
Clean Air Act requirements The Ariterm Mysinge pellet stove has been recommended as suitable for use in smoke control areas when burning wood pellets. ARITERM-SP-PX26868-B.1... - Page 20 PELLET STOVE ARITERM MYSINGE If these instructions are not followed at installation, operation and maintenance, Ariterm Sweden AB’s applicable warranties are not binding. Ariterm reserves the right to make changes to components and specifications without prior notice. Ariterm Sweden AB Flottiljvägen 15, SE-392 41 Kalmar...
