C 375BEE
®
Stereo Integrated Amplifier
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 375BEE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NAD C 375BEE

Summary of Contents for NAD C 375BEE

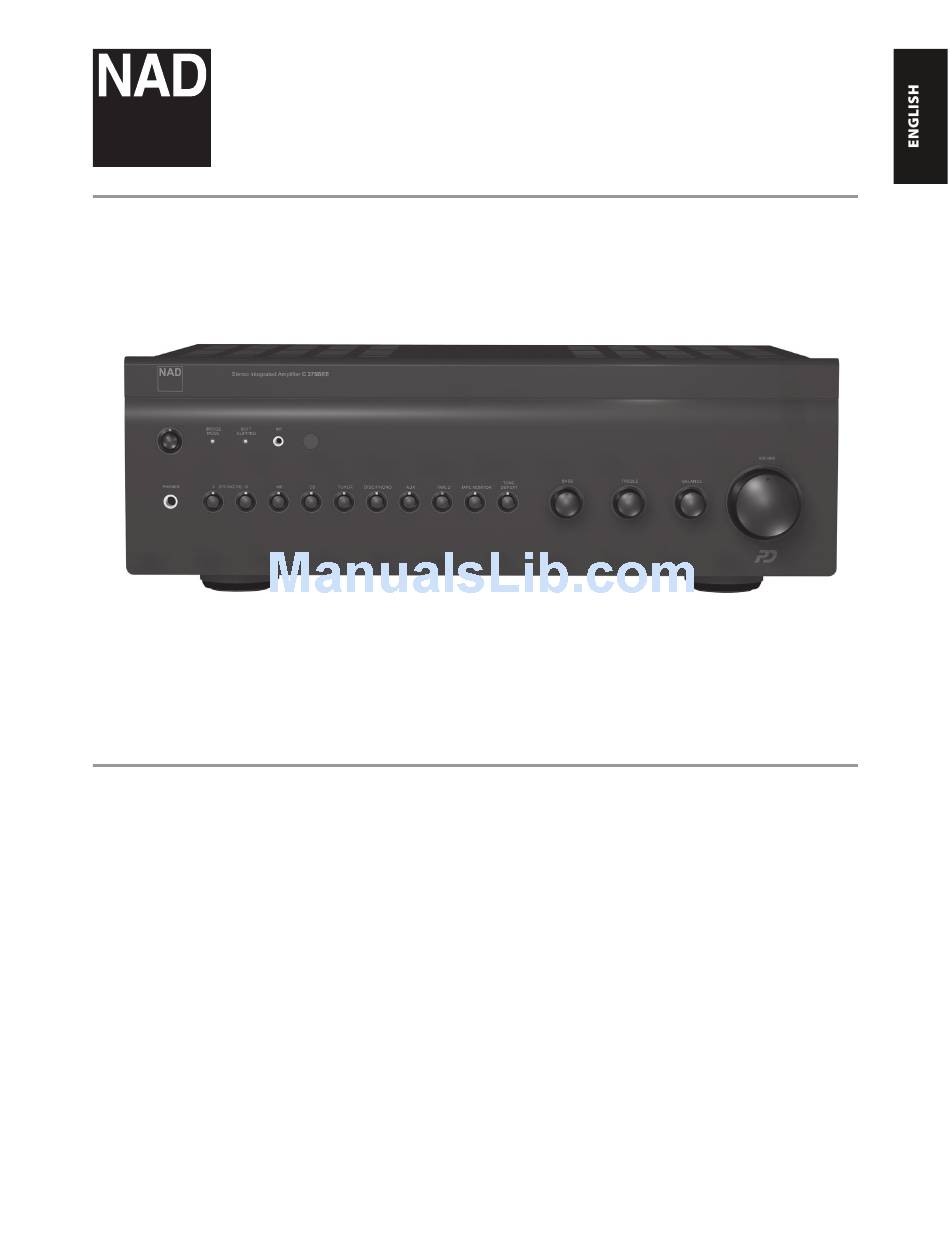

  • Page 1 C 375BEE ® Stereo Integrated Amplifier Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR LATER USE. 14 Outdoor Antenna Grounding - If an outside antenna or cable system FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE is connected to the product, be sure the antenna or cable system is AUDIO EQUIPMENT.
  • Page 3 Changes or modifications to this equipment not expressly approved by 23 Heat - The product should be situated away from heat sources such as NAD Electronics for compliance could void the user’s authority to operate radiators, heat registers, stoves or other products (including amplifiers) this equipment.

  • Page 4: Notes On Environmental Protection

    ONLY TO THE PRESCRIBED AC OUTLET, I.E., 120V 60HZ OR 230V 50HZ. RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT) The model and serial number of your new C 375BEE are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here: Model no: .

  • Page 5: Getting Started

    It is especially important that sufficient ventilation be provided. If you are 2 Connect the AC cord to the C 375BEE’s AC Mains input and then plug contemplating locating the C 375BEE within a cabinet or other furniture, into an AC outlet.

  • Page 6: Identification Of Controls

    When the C 375BEE is at ON state, this indicator will If you do so, you may not be able to operate the C 375BEE with the illuminate blue. When infrared command from the SR 8 is received, this remote control.
  • Page 7 SPEAKERS B terminals. Press both “A” and “B” to engage at the same time both SPEAKERS A and SPEAKERS B. The 11 TONE CONTROLS: The NAD C 375BEE is fitted with BASS and TREBLE corresponding blue LED indicator embedded around the SPEAKERS A tone controls to adjust the tonal balance of your system.

  • Page 8: Rear Panel

    MODULE PP 375 ATTENTION! Please make sure that the C 375BEE is powered off or unplugged before making any connections. It is also advisable to power-down or unplug all associated components while making or breaking any signal or AC power connections.

  • Page 9: Power Drive

    MONO (Bridge Mode), more than doubling its output power. This way, right “Audio Input” of the Power amplifier or processor to the PRE OUT 1 the C 375BEE can be used as part of a high power stereo or home- sockets.

  • Page 10: Important Notice

    Always use heavy duty (16 gauge; 1.5mm, or thicker) stranded wire to will be 12V when the C 375BEE is ON and 0V when the unit is either OFF or connect loudspeakers to your C 375BEE. The high-current binding post in standby.
  • Page 11 IDENTIFICATION OF CONTROLS REAR PANEL Another optional MDC module that can be installed in the C 375BEE is These timing variations create a condition called “jitter” – small the MDC DAC module. When installed with C 375BEE, the MDC DAC variations that create a harsh distortion.
  • Page 12 SR 8 REMOTE CONTROL USING THE SR 8 REMOTE CONTROL The SR 8 remote control handset handles the key functions of the C 375BEE as well as other NAD Stereo Receivers, Integrated Amplifiers and Preamplifiers. It has additional controls to remotely operate NAD CD Players, AM/FM Tuners and dedicated AM/FM/DB Tuners.
  • Page 13 NAD CD Player models; check the owner’s manual of your NAD CD Player for control button compatibility. You can also load the applicable NAD code library to this device so that it can be made compatible with your other NAD equipment. Refer to the section below about “USING THE SR 8 REMOTE CONTROL LIBRARY”...
  • Page 14 SR 8 REMOTE CONTROL USING THE SR 8 REMOTE CONTROL LIBRARY The SR 8 can store a different library of default NAD codes for each of its DEVICE SELECTOR “pages. ” If the original default library does not control your NAD CD player, DVD player, or other component, follow the procedure below to change the library code.

  • Page 15: Troubleshooting

    Standby LED turns red during operation. • C 375BEE has overheated. • Turn C 375BEE OFF; make sure ventilation slots on top and bottom of C 375BEE are not blocked. After C 375BEE has cooled down, turn back ON. • Overall impedance of loudspeakers too low.

  • Page 16: Specifications

    REFERENCE SPECIFICATIONS PREAMPLIFIER SECTION LINE LEVEL INPUT, PRE OUT THD 20 Hz – 20 kHz, CCIF IMD, SMPTE IMD, DIM 100 <0.004 % at 2 V out Signal-to-Noise Ratio >102 dB (IHF; A-weighted, ref. 500 mV out, unity gain) >110 dB (A-weighted, ref. 2 V out, Volume maximum) >92 dB (ref.

  • Page 17: Overall Specifications

    Shipping weight 18.0 kg (39.7 lbs) * - Gross dimensions include feet, volume knob and extended speaker terminals. Specifications are subject to change without notice. For updated documentation and features, please log onto www.NADelectronics.com for the latest information about C 375BEE.
  • Page 18 All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
