DVD Player
with 5.1 channel audio output
Instruction Manual
Model TC2302DVD
Please read these instructions carefully and retain for future reference.
For assistance during normal working hours (9am-5pm, Mon-Fri) call Oriental Pacific International Ltd.
New Zealand call: 0800 89 85 80 or email: service@orientalpacific.com
Advertisement
Table of Contents
Related Manuals for Transonic TC2302DVD
Summary of Contents for Transonic TC2302DVD
-
Page 1: Dvd Player

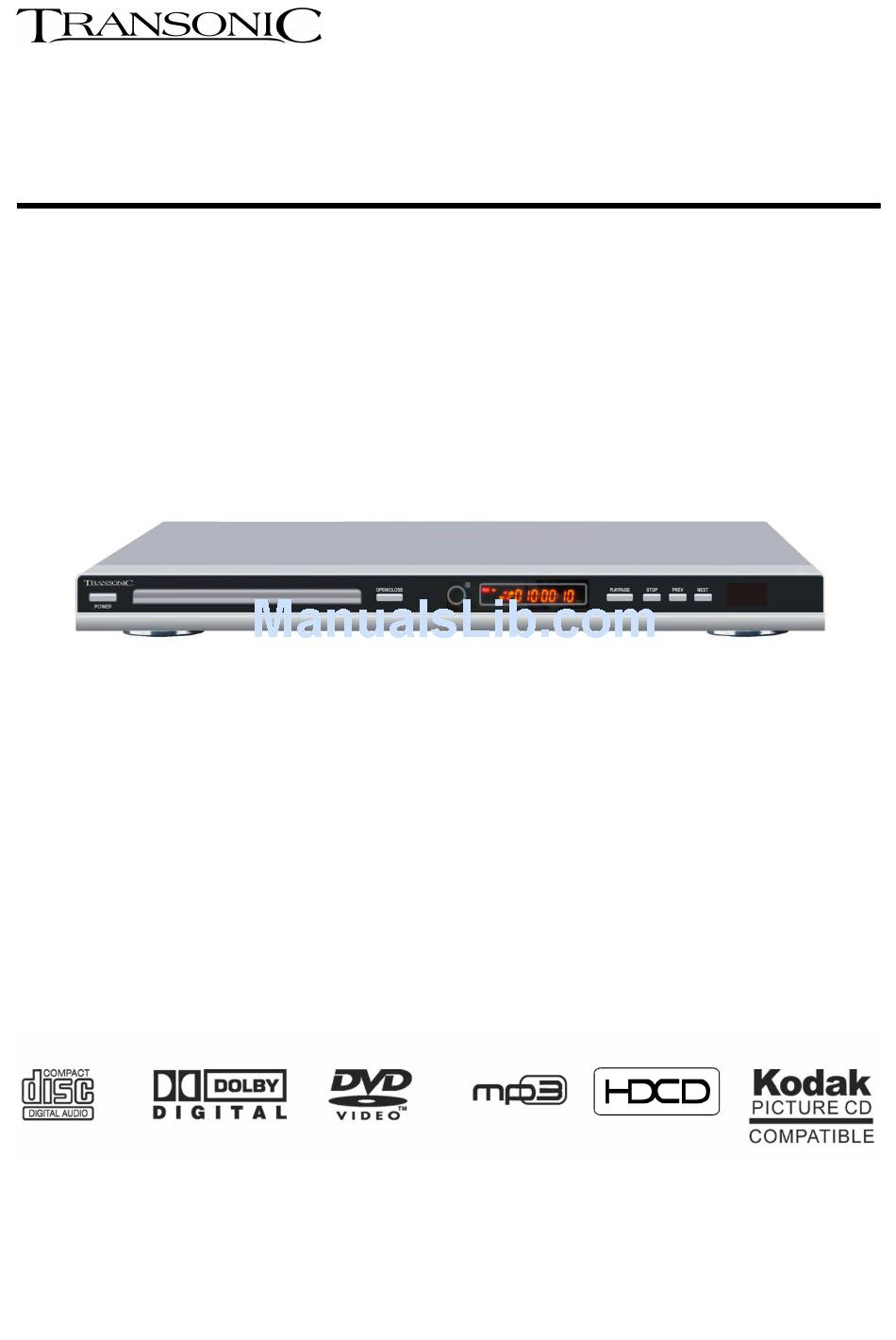

DVD Player with 5.1 channel audio output Instruction Manual Model TC2302DVD Please read these instructions carefully and retain for future reference. For assistance during normal working hours (9am-5pm, Mon-Fri) call Oriental Pacific International Ltd. New Zealand call: 0800 89 85 80 or email: service@orientalpacific.com... -
Page 2: Important Safety Information
1.0 Important Safety Instructions When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following Read, Keep and Follow these instructions, heeding all Warnings. CAUTION! This is a class 1 laser product. -
Page 3: Table Of Contents
1.0 Important Safety Instructions (Continued) WARNING! If this apparatus is to be used by a third party, please supply these instructions with it. WARNING! Do not prevent easy access to the main wall switch and plug. WARNING! No liability will be accepted for any personal injury or damage caused by failure to follow these instructions. -
Page 4: Preparations Before Using
2.0 Preparations before using 2.1 Front Panel 1. Power Button 4. Remote Sensor 7. Stop Button 2. Disc Tray 5. LED Display 8. PREV Button 3. Open / Close Button 6. Play / Pause Button 9. NEXT Button Rear Panel 10. -
Page 5: Basic Connection
Power Connections: Connect the supply plug into a suitable power outlet socket. You now have basic AV connection. Turn on your TV & DVD Player and switch the TV channel to AV to view the DVD screen. You should see the start-up TRANSONIC logo. -
Page 6: Playing A Dvd
2.4 Playing a DVD Turn on the TV & DVD player. Switch the TV to the AV channel. You should see start-up TRANSONIC logo. Press the OPEN/CLOSE button on the DVD Remote (or on the unit itself) Insert a disc label side up Press the OPEN/CLOSE button once again, to close the tray and DVD player will start loading the disc. -
Page 7: Remote Control
3.0 Remote Controller 3.1 Remote Control Buttons... -
Page 8: Remote Button Descriptions
3.0 Remote Controller (continued) 3.2 Common Remote Key Descriptions Press to turn ON and press again to turn the DVD player to standby 1. Power mode Press to turn ON / OFF subtitles and change subtitle language 2. Subtitle (If available with DVD disc) Press this to view the scene from another camera angle (note: Not all 3. - Page 9 3.0 Remote Controller (continued) 18. Repeat Used to repeat a DVD chapter/title or a CD Track or entire CD 19. 3D No use for this model 20. Random Press to random play the disc (If available with DVD disc) Press to check playing time, remaining time for title, chapter, track or 21.
-
Page 10: Connection Options
4.0 Connection Options Component & Composite Video System Connections Component Connection Composite Video Connection NOTE: if you change the Video Output setting to YPbPr (P-SCAN) and you do not have a progressive scan supported television you will lose picture. Press the VIDEO button on the remote to change back to Interlace mode and picture will return. -
Page 11: S-Video & 5.1 Channel System Connections
4.0 Connection Options (continued) 4.2 S-Video & Home Theatre System Connections S-Video Connection 5.1 Channel Home Theatre System Connection ** NOTE: 5.1 CHANNEL: To use 5.1 Channel sound you must enter the SETUP menu and the AUDIO menu then scroll down to DOWNMIX and select 5.1 CHANNEL output. -
Page 12: Setup Menu
5.0 Setup Menu 5.1 Menu Operation & Navigation Press the SETUP button on the remote to enter the Setup menu. Use the Right or Left Navigate Key to select the menu you wish to enter: o General Setup Page o Audio Setup Page o Dolby Digital Setup o Video Setup Page o Preference Page... -
Page 13: Audio Setup Page
5.0 Setup Menu (continued) 5.3 Audio Setup Page Inside the Audio setup menu you will find the following sub-menus: Downmix: default setting – Stereo (2 CH) Front Speaker: default setting - Large Speaker Setup Center Speaker: default setting – small Rear Speaker: default setting - small Subwoofer: default setting - On SPDIF Off... -
Page 14: Video Setup Page
5.0 Setup Menu (continued) 5.5 Video Setup Page Inside the Video Setup menu you will find the following sub-menus: Set the video output mode. Video Output S-video: S-video output mode. YUV: component video output mode, YCbCr or YPbPr. Sharpness: High, Medium, and Low. TV Mode Brightness: value from –20 to +20. -
Page 15: Trouble Shooting
6.0 Trouble Shooting Should your DVD player develop a problem, please refer below before requesting service. Symptom Check & Action Check if power cord is connected properly to the power outlet. No Power Check if main power button on the unit is switched on. Make sure the main power button on the unit is switched on. -
Page 16: Specification
7.0 Specification Model DVD PLAYER TC2302DVD Play Mode PAL / NTSC / Multi Disc format DVD, VCD, MP3, Picture-CD, CD, CD-R, CDR-W, DVD-R ≥ 500 lines Resolution Video S/N ratio ≥ 56dB Frequency response fs 96KHz: 4Hz – 44KHz : +/-1dB Audio S/N ratio ≥... -
Page 17: Warranty Card
WARRANTY FOR APPLIANCES USED COMMERCIALLY LIMITED TO 90 DAYS Type of Appliance: DVD Player with 5.1 channel audio output Model Number: TC2302DVD Purchase date: Product Purchased From: Your Name:...
