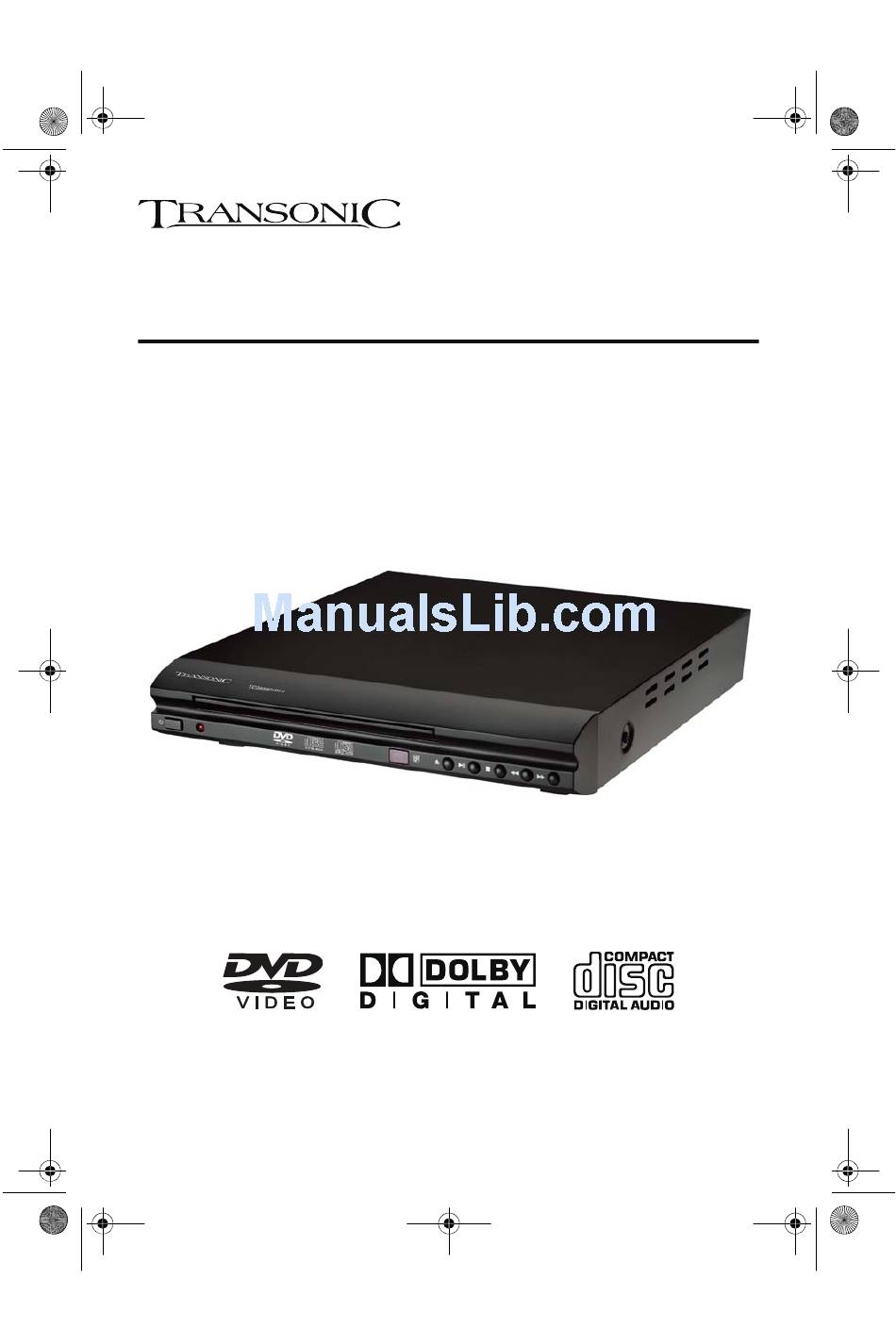

Page 1: Dvd Player

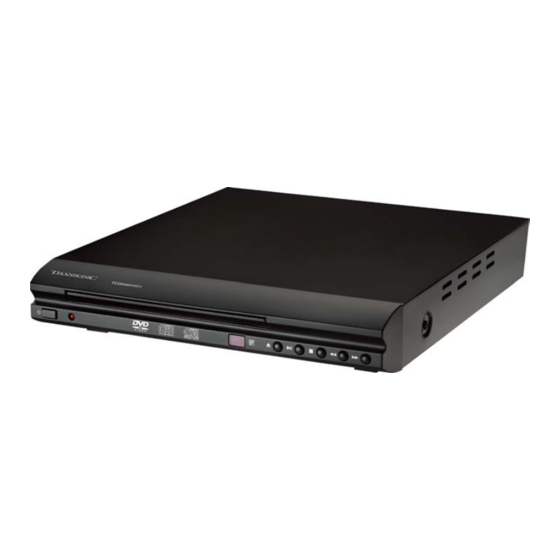

DVD Player Instruction Manual Model TC2859DVD2.0 Please read these instructions carefully and retain for future reference. For assistance during normal working hours (9am-5pm, Mon-Fri) call Oriental Pacific International Ltd. New Zealand call: 0800 89 85 80 or email: service@orientalpacific.com... -
Page 3: Introduction
Introduction Thank you for purchasing this DVD Player, which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure that you get the very best from your purchase. -
Page 4: Important Safety Instructions
Important Safety Instructions When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following. Read, Keep and Follow these instructions, heeding all Warnings. Keep out of reach of young children. -
Page 5: Important Information - Television Display Equipment
IMPORTANT INFORMATION – TELEVISION DISPLAY EQUIPMENT If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television. •... -
Page 6: Table Of Contents
DVD Player Contents Introduction ..................... Safety is Important ..................Region Code ....................1 Important Safety Instructions ..............Important Information – Television Display Equipment.........3 Contents......................4 Safety Information..................6 Location of the Controls................7 Remote Control ..................... Getting Started ..................9 In the Box ...................... Compatible Discs .................. - Page 7 DVD Setup Menus ................. 24 The Language Menu .................24 The Video Menu ..................25 The Audio Menu ..................28 The Rating Menu..................29 The Misc Menu..................31 Help and Advice..................32 Technical Specification ................ 34 Warranty Card..................35...
-
Page 8: Safety Information
DVD Player Safety Information WARNING! ENSURE THAT YOU READ ALL OF THE SAFETY INSTRUCTIONS BEFORE USING YOUR DVD PLAYER. Power Source This DVD Player requires a 100 - 240V AC 50/60Hz power outlet. Do not use any other supply. Safety Considerations Position the power cable and other connected cables so that they are not likely to be walked on, pinched or where items can be placed on or against them. -
Page 9: Location Of The Controls
DVD Player Location of the Controls DISC DRAWER PLAY/PAUSE F.FWD TC2859DVD2.0 REMOTE CONTROL SENSOR STANDBY STOP OPEN/CLOSE F.REV Y VIDEO OUTPUT Cb/Pb VIDEO OUTPUT Cr/Pr VIDEO OUTPUT VIDEO OUTPUT S-VIDEO OUTPUT POWER CABLE INPUT COAXIAL OUTPUT AUDIO OUTPUT RIGHT AUDIO OUTPUT LEFT... -
Page 10: Remote Control
Open/Close Standby Mute Numeric Buttons Subtitle Angle 10/0 Goto Prog Return Audio Display Zoom Setup Arrow Buttons Enter Title Menu FORMAT Format Reset Prev F.Rev Play/Pause Stop Next F.Fwd Repeat Resume PSCAN Vol+ Step Clear Pscan Vol- Slow Shuffle TC2859DVD2.0... -
Page 11: Getting Started
DVD Player Getting Started Remove your DVD Player carefully from the box. You may wish to store the packaging for future use. In the Box Included in this package should be: • DVD Player • Remote Control • RCA audio/video cable •... -
Page 12: Remote Control
Remote Control Remove the battery compartment cover on the rear of the remote control. Insert 2 "AAA" batteries, ensuring you follow the polarity diagram inside the compartment. Replace the battery compartment cover. NOTE: Remove the batteries from the remote control if not in use for a long period of time. -
Page 13: Connection
DVD Player Connection Connect the RCA lead between the TV and DVD player as shown below. V ideo in Audio In (L) Audio In (R) P.11... -
Page 14: Connecting External Equipment
Connecting External Equipment You can connect a wide range of audio and video equipment to and from your DVD Player. The following table lists a range of the available connectors on the DVD Player. NOTE: Refer to the manufacturer’s guide for further instructions on how to connect the equipment. -
Page 15: Using The Dvd Player
DVD Player Using the DVD Player Turning the Unit On/Off Your DVD Player requires a power outlet of 100 - 240 V AC 50/60 Hz. Please ensure that your outlet is compatible. Insert the plug into a power outlet and switch on. Initially the DVD Player will be in standby (Off) mode. -
Page 16: Basic Operation
Basic Operation Volume Control Press the VOL+ button to increase the volume. Press the VOL- button to decrease the volume. While changing the volume, a volume bar will display the current volume level. Muting the Volume Press the MUTE button to turn the volume off. The mute symbol will appear. -
Page 17: Playing Discs
DVD Player Playing Discs STANDBY Press the button to turn the DVD Player on. Press the OPEN/CLOSE button to open the disc drawer and insert a disc. Insert inside the disc drawer guides. Insert one disc only. Press the OPEN/CLOSE button to close the disc drawer. Press the button. -
Page 18: To Stop Play
To Stop Play Press the STOP button. The DVD Player will enter pre-stop mode. If the PLAY/PAUSE button is pressed, playback will start from the last played position of the disc. NOTE: Playback can be resumed by pressing the RESUME button. -
Page 19: Viewing Frame By Frame
When playing a disc, this function can be used to repeatedly play a title, chapter or disc. - DVD - -CD/MP3- - VCD - Chapter Repeat Repeat Single Repeat Single Repeat Folder Title Repeat Repeat Repeat Off Repeat Off Repeat Off •... -
Page 20: Zoom
A-B Repeat The A-B repeat function allows a selected portion of a title or chapter of any length to be repeated. When the required start point has been reached, press the A-B button. The words 'Rep A-' will be displayed. When the required stop point has been reached, press the A-B button. -
Page 21: Audio
DVD Player Audio The AUDIO button allows you to select the audio language of a movie or listen to any voice-over commentaries. During playback, press the AUDIO button. Each time you press the AUDIO button, the audio cycles to the next available audio channel. -
Page 22: Searching
Searching You may directly enter a title or chapter number to search fast on a disc. The unit plays from the point. Press the [GOTO] button to play at a desired Title, Chapter or Time. Press the UP or DOWN ARROW buttons to display the items search bar as shown below. -
Page 23: Video
DVD Player VIDEO In stop mode or when there is no in the tray, press the PSCAN button repeatedly, there will be displayed in the order below: P-Scan S-VIDEO DVD Information Display During VCD/DVD playback, Press DISPLAY to display the current time counter position as follows: 00:01:23/00:00:23 00:01:23/00:00:11... -
Page 24: The Menu Function
The Menu Function The menu function allows you to return to the DVD root menu. Press the MENU button at any time during playback to return to the DVD root menu. Shuffle Function The random function allows you to play the titles or chapters of the DVD in a random order. -
Page 25: The Program Function
DVD Player The Program Function The program function can be used to play selected chapters and titles in a pre-set sequence. Press the PROGRAM button. The program menu will appear as shown below. Program Program Track Play Title Chapter Play Clear Program Clear Program NOTE: Refer to the DVD cover for the title and chapter listings. -
Page 26: Dvd Setup Menus
DVD Setup Menus The DVD Setup menus allow you to configure the Language, Video, Audio and General settings of the DVD Player. Press the SETUP button to access the DVD Setup menus. Use the UP, DOWN, LEFT and RIGHT ARROW buttons to navigate the menu system. -
Page 27: The Video Menu
DVD Player Subtitle The Subtitle function allows you to select the subtitle language. The available options are English, French, Spanish, German, Italian, Dutch, Auto and Off. Audio The Audio function allows you to select the audio language. The available options are English, French, Spanish, German,Italian, Dutch. DVD Menu The DVD Menu function allows you to select the DVD Menu language. -
Page 28: View Mode
4:3 LB (Letterbox) will show the DVD in its original aspect ratio so depending on the size of your television screen; you may see black borders above and below the picture. 16:9 Choose this setting if you have a widescreen television. View Mode The view function allows you to select the picture compression. -
Page 29: Smart Picture
DVD Player Smart Picture The Smart Picture function allows you to select one of four preset picture conditions to give a different picture quality. The available options are Standard, Vivid, Cool and Personal. Standard is used for general viewing. Vivid is used for a brighter image with stronger colouring. Cool is used for a softer image with weaker colouring. -
Page 30: The Audio Menu
The Audio Menu The audio menu allows you to setup the audio output options. Press the MENU button to access the DVD Setup menus. Use the UP and DOWN ARROW buttons to display the Audio menu as shown below. Compression The following options are available: Digital Output The Digital Output function allows you to select the digital audio output... -
Page 31: The Rating Menu
DVD Player The Rating Menu The Rating menu allows you to setup and control the Parental control options. Press the MENU button to access the DVD Setup menus. Use the UP and DOWN ARROW buttons to display the Rating menu as shown below. -
Page 32: Set Password
Set Password You can change the password to prevent children adjusting the Parental Control settings. When selected, the following screen will appear. Use the NUMERIC buttons to enter the old or default password. The default password is 8888. Press the ENTER button to accept the old or default password. Press the ENTER button to set the new password. -
Page 33: The Misc Menu
DVD Player The Misc Menu The Misc menu allows you to adjust general settings for the DVD Player. Press the MENU button to access the DVD Setup menus. DOWN ARROW Use the buttons to display the Misc menu as shown below. The following options are available: Use Default Setting The Use Default Setting resets the personal viewing settings saved in... -
Page 34: Help And Advice
Help and Advice The DVD Player will not power up • Ensure that the plug is connected to the power outlet and that it is switched on. • Replace the fuse in the plug. Disc does not play • Check that the disc has been correctly loaded, label facing up. •... - Page 35 DVD Player No response from the remote control • Check that there are no obstructions between the remote control and the DVD Player. • Check that the batteries are fitted correctly. • Replace the batteries. NOTE: If none of the above suggestions work, try switching your DVD Player off and then on again.
-
Page 36: Technical Specification
TECHNICAL SPECIFICATIONS Laser Wavelength 650nm Video NTSC/PAL/AUTO Frequency response 20Hz ~ 20KHz (±3dB) Signal/noise ratio ≥ 90dB Channel separation ≥ 85dB ( 1kHz) Dynamic range ≥ 80dB ( 1kHz) Output level: 2.0 + 0/-0.2Vrms Analog (Load impedance: 10k Ω) Output Audio Output level: 0.5 ±... -
Page 37: Warranty Card
Warranty Card This product is guaranteed against faulty materials and workmanship for a period of one year from the date of purchase with proof of purchase. The obligation to the purchaser under this warranty is limited to servicing the unit and replacing defective parts or refund when the product is returned freight prepaid to the retailer with proof of purchase. - Page 40 DVD Player Instruction Manual...
