Transonic TC1883DV Instruction Manual

2.0 channel dvd/cd/mp3 player
Hide thumbs
Table of Contents

Advertisement

Quick Links

2.0 Channel
DVD/CD/MP3 Player
Instruction Manual
Model TC1883DV
Please read these instructions carefully and retain for future reference.
For assistance during normal working hours (9am-5pm, Mon-Fri) call Oriental Pacific International Ltd.
NZ call: 0800 89 85 80 or email: service@opnz.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC1883DV and is the answer not in the manual?

Questions and answers

Related Manuals for Transonic TC1883DV

Summary of Contents for Transonic TC1883DV

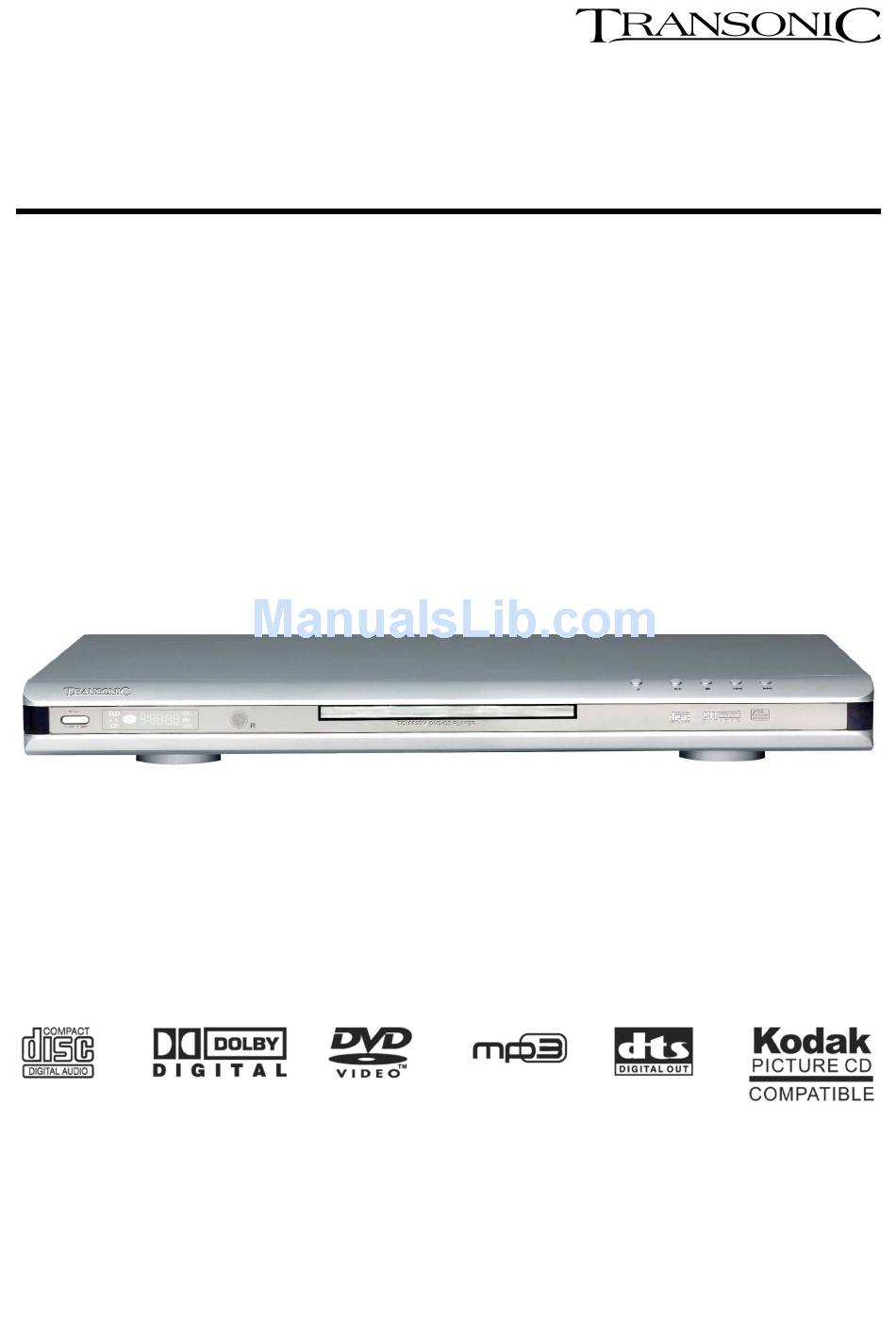

  • Page 1 2.0 Channel DVD/CD/MP3 Player Instruction Manual Model TC1883DV Please read these instructions carefully and retain for future reference. For assistance during normal working hours (9am-5pm, Mon-Fri) call Oriental Pacific International Ltd. NZ call: 0800 89 85 80 or email: service@opnz.com...

  • Page 2: Important Safety Information

    1.0 Important Safety Instructions When using any electrical apparatus always observe safety regulations and use basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following Read, Keep and Follow these instructions, heeding all Warnings. CAUTION! This is a class 1 laser product.

  • Page 3: Table Of Contents

    1.0 Important Safety Instructions (Continued) WARNING! If this apparatus is to be used by a third party, please supply these instructions with it. WARNING! No liability will be accepted for any personal injury or damage caused by failure to follow these instructions. This product incorporates copyright protection technology that is protected by U S patent rights.

  • Page 4: Quick Start Guide

    3 pin earthed outlet suitable for class 1 equipment. You now have basic AV connection. Turn on your TV & DVD Player and switch the TV channel to AV to view the DVD screen. You should see the start-up Transonic logo.

  • Page 5: Playing A Dvd

    2.0 Quick Start Guide (continued) 2.2 Playing a DVD Turn on the TV & DVD player. Switch the TV to the AV channel. You should see the Transonic start-up logo. Press the OPEN/CLOSE button on the DVD Remote (or on the unit itself)

  • Page 6: Remote Control

    3.0 Remote Control 3.1 Remote Control Buttons...

  • Page 7: Remote Button Descriptions

    3.0 Remote Control (continued) 3.2 Common Remote Key Descriptions Used to show On Screen Display. Press repeatedly to cycle through the on screen display options To program the order in which the tracks on a CD or Chapters on a Program DVD play (note: Many DVD’s will not allow this function) Setup...

  • Page 8: Front & Rear Buttons

    4.0 Front & Rear Panels 4.1 Front Panel 1. Power Button 4. Open / Close Button 7. Skip Backwards Button 2. LED Display 5. Play / Pause Button 8. Skip Forwards Button 3. Remote Sensor 6. Stop Button Rear Panel 9.

  • Page 9: Connection Options

    5.0 Connection Options Component & Composite Video System Connections Component Connection Composite Video Connection NOTE: if you change the Video Output setting to YUV P-SCAN and you do not have a progressive scan supported TV you will lose picture. Press the PS/IS button on the remote to change back to Interlace mode and picture will return.

  • Page 10: S-Video System Connections

    5.0 Connection Options (continued) 5.2 S-Video & Home Theatre System Connections S-Video Connection * NOTE: S-VIDEO: To use S-Video connections you must first hook up another connection (i.e. Composite) and enter the SETUP menu then the SCREEN menu. Next scroll down to VIDEO OUTPUT and change this setting to CVBS+S-Video (factory default is CVBS+YUV.

  • Page 11: Setup Menu

    6.0 Setup Menu 6.1 Menu Operation & Navigation Press the SETUP button on the remote to enter the Setup menu. Use the Right & Left Directional keys to select the menu you wish to enter: o Language Setup Page o Screen Setup Page o Audio Setup Page o Custom Setup Page Use the Up &...

  • Page 12: Audio Setup Page

    6.0 Setup Menu (continued) 6.4 Audio Setup Page Inside the Audio Setup menu you will find the following sub-menus: DIGITAL OUT Used to change the Digital outputs Used to change between 2.0 Channel and 5.1 Channel (Default: 2.0 Channel) ANALOGUE OUT Used to turn the Subwoofer output ON or OFF (NOTE: Subwoofer can only be SUBWOOFER turned ON if 5.1 Channel is selected)

  • Page 13: Trouble Shooting

    7.0 Trouble Shooting Should your DVD player develop a problem, please refer below before requesting service. Symptom Check & Action Check if power cord is connected properly to the power outlet. No Power Check if main power button on the unit is switched on. Make sure the main power button on the unit is switched on.

  • Page 14: Specifications

    8.0 Specifications Video Format MPEG 2 Audio Format MPEG 1, Layer 1, Layer 2, Layer 3 Colour System: PAL / NTSC Audio System: DOLBY DIGITAL down mix stereo DOLBY DIGITAL digital output Signal Output Audio DAC 18 bit / 48KHz Video Output: 1Vpp (at 75 Ohm) Audio Output (Stereo): 2Vpp CD: 20Hz-20KHz (EIAT)

  • Page 15: Warranty Card

    WARRANTY FOR APPLIANCES USED COMMERCIALLY LIMITED TO 90 DAYS Type of Appliance: 2.0 Channel DVD Player Model Number: TC1883DV Purchase date: Product Purchased From: Your Name:...
