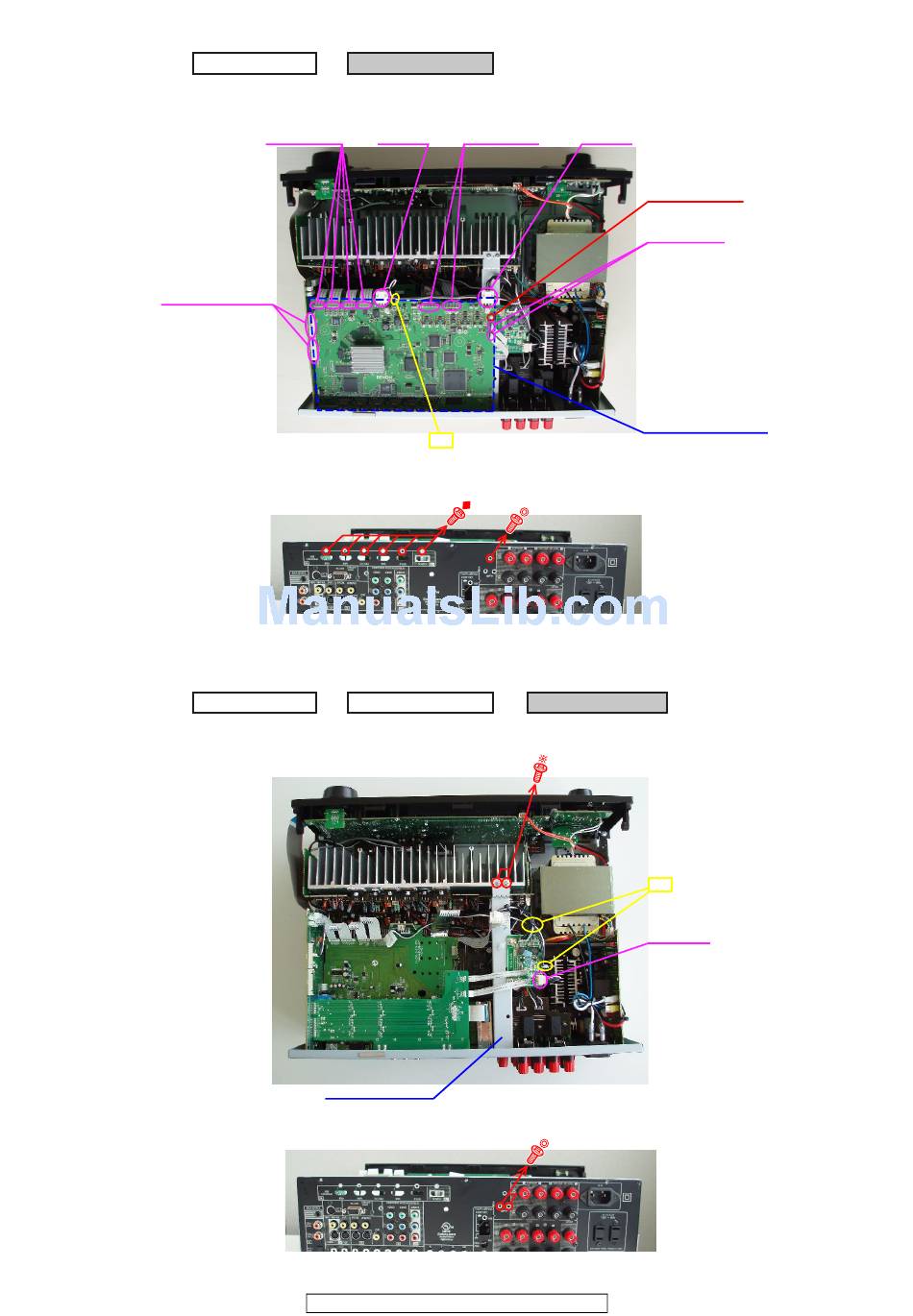

2. PCB HDMI ASSY

Proceeding : CABINET TOP
(1) Cut the wire clamp band, then disconnect the connector wires and FFC Cables.
Remove the SUPPORTER, then disconnect the board to board.
Board to board
(2) Remove the screws.
Direction of photograph: A

3. BRACKET HDMI

Proceeding : CABINET TOP
(1) Cut the wire clamper, then disconnect the connector wire. Remove the screws.
(2) Remove the screws.
Direction of photograph: A
→
HDMI PWB ASSY
FFC Cable CX046
cut
→
HDMI PWB ASSY
BRACKT HDMI
AVR-2310CI/2310/890, AVC-2310
FFC Cable CX047
→
BRACKET HDMI
9
SUPPORTER
FFC Cable
PCB HDMI ASSY
cut
CP2270
