WIRE ARRANGEMENT

If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as
they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.

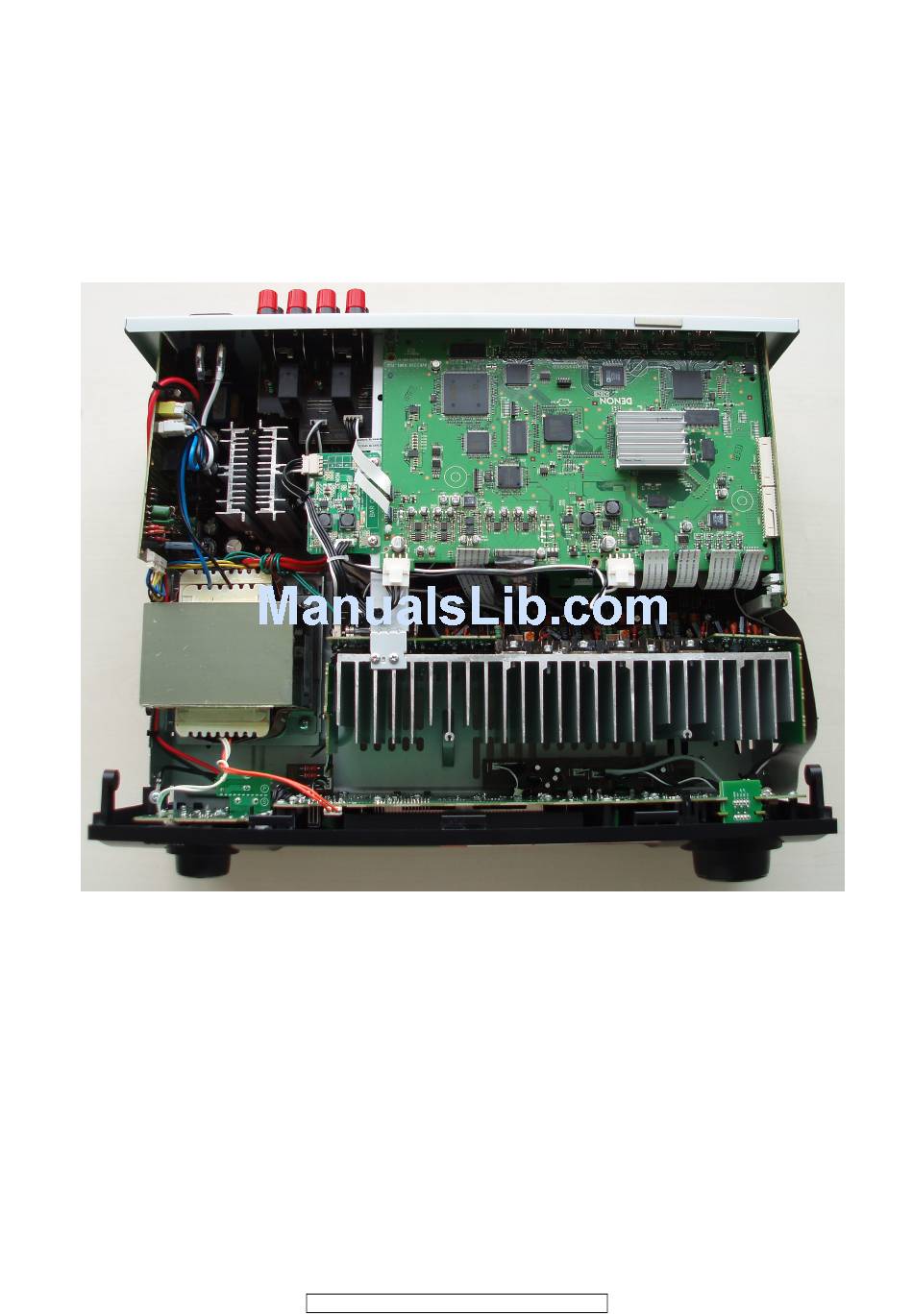

Wire arrangement viewed from the top

Back Panel side

Front Panel side

5
AVR-2310CI/2310/890, AVC-2310
