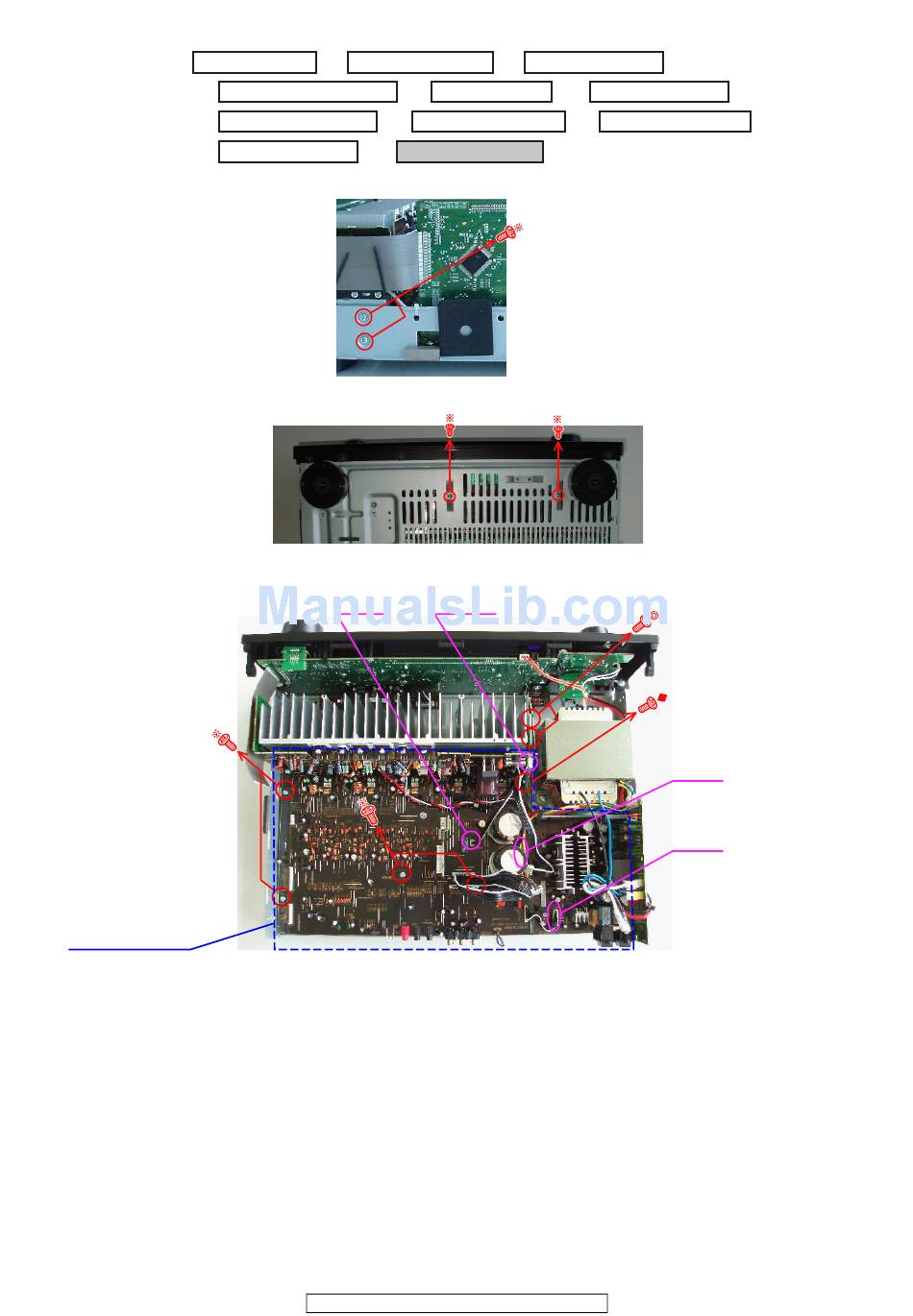

11. PCB MAIN ASSY
Proceeding : CABINET TOP
→ DIGI-CNT PWB ASSY
→ PCB SIRIUS ASSY
→ PCB CPU ASSY
(1) Remove the screws.
Direction of photograph: C
View from bottom
(2) Disconnect the connector wires, then remove the screws.
PCB MAIN ASSY
→
HDMI PWB ASSY
→ TUNER PACK
→ PCB VIDEO ASSY → PCB INPUT ASSY
→ PCB MAIN ASSY
CP541
CP2270
15
AVR-2310CI/2310/890, AVC-2310
→
BRACKET HDMI
→ CHASSIS BACK
CP104
CP511
