10. PCB CPU ASSY
Proceeding : CABINET TOP
→ DIGI-CNT PWB ASSY
→ PCB SIRIUS ASSY
→ PCB CPU ASSY

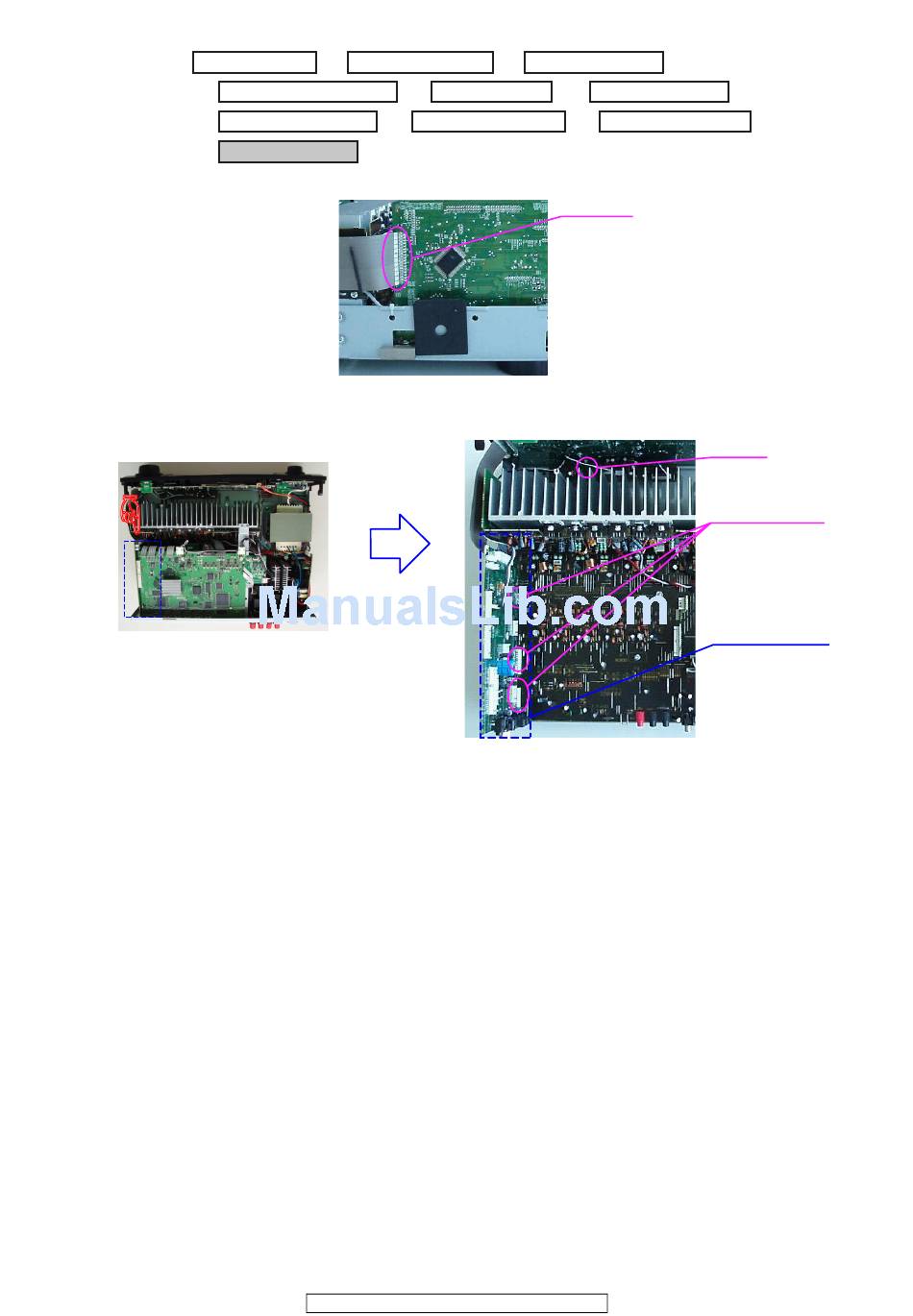

(1) Disconnect the FFC cable.
Direction of photograph: C
(2) Disconnect the connector wires and board to board.
→
HDMI PWB ASSY
→ TUNER PACK
→ PCB VIDEO ASSY → PCB INPUT ASSY
14
AVR-2310CI/2310/890, AVC-2310
→
BRACKET HDMI
→ CHASSIS BACK
FFC Cable
CN305
Board to board
PCB CPU ASSY
