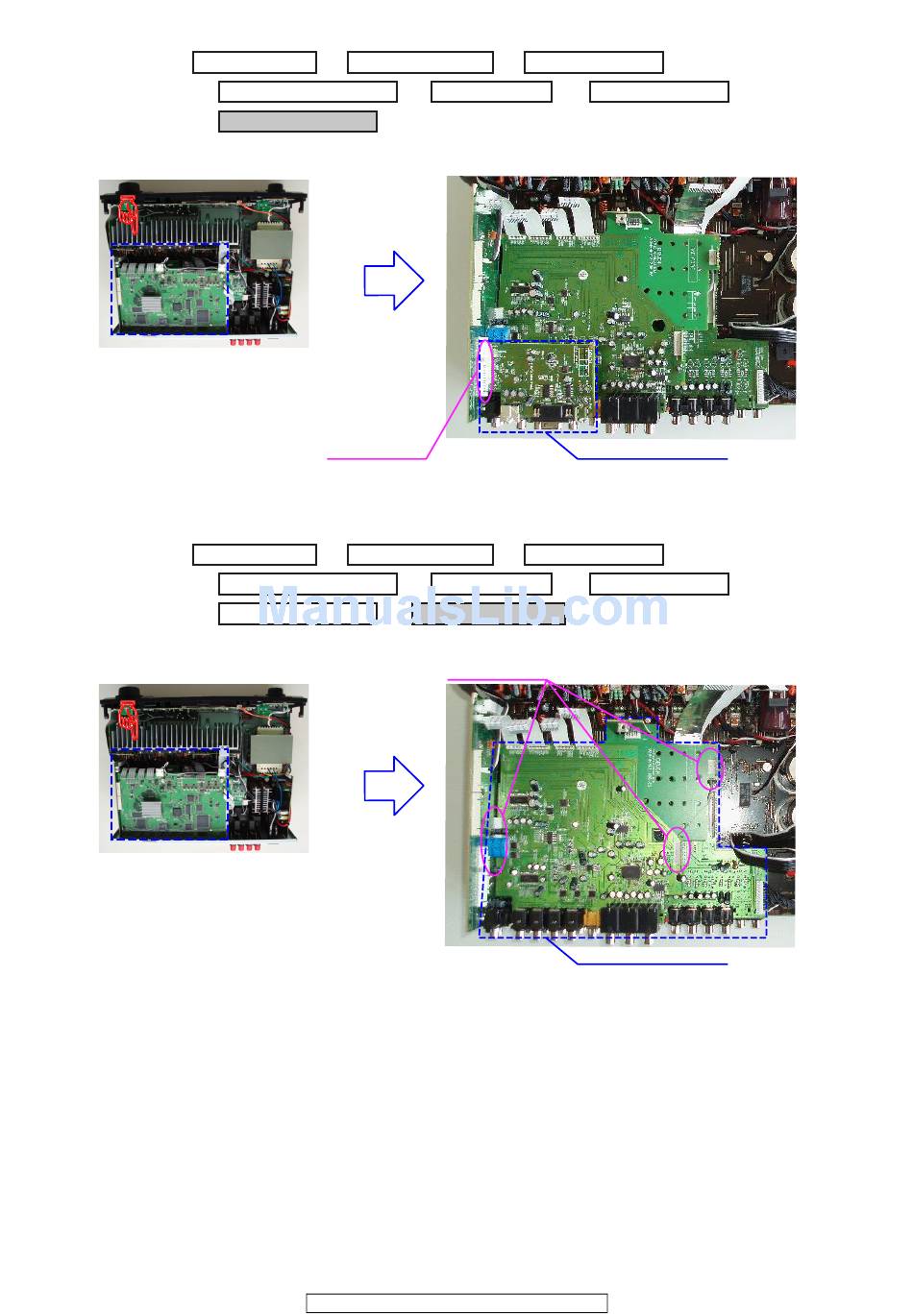

7. PCB SIRIUS ASSY
Proceeding : CABINET TOP
→ DIGI-CNT PWB ASSY
→ PCB SIRIUS ASSY
(1) Disconnect the board to board.
8. PCB VIDEO ASSY
Proceeding : CABINET TOP
→ DIGI-CNT PWB ASSY
→ PCB SIRIUS ASSY
(1) Disconnect the board to boards.
→
HDMI PWB ASSY
→ TUNER PACK
Board to board
→
HDMI PWB ASSY
→ TUNER PACK
→ PCB VIDEO ASSY
Board to board
12
AVR-2310CI/2310/890, AVC-2310
→
BRACKET HDMI
→ CHASSIS BACK
PCB DSIRIUS ASSY
→
BRACKET HDMI
→ CHASSIS BACK
PCB VIDEO ASSY
