Summary of Contents for Rangemaster Classic 90 Dual Fuel Lidded

  • Page 1: Installation Instructions

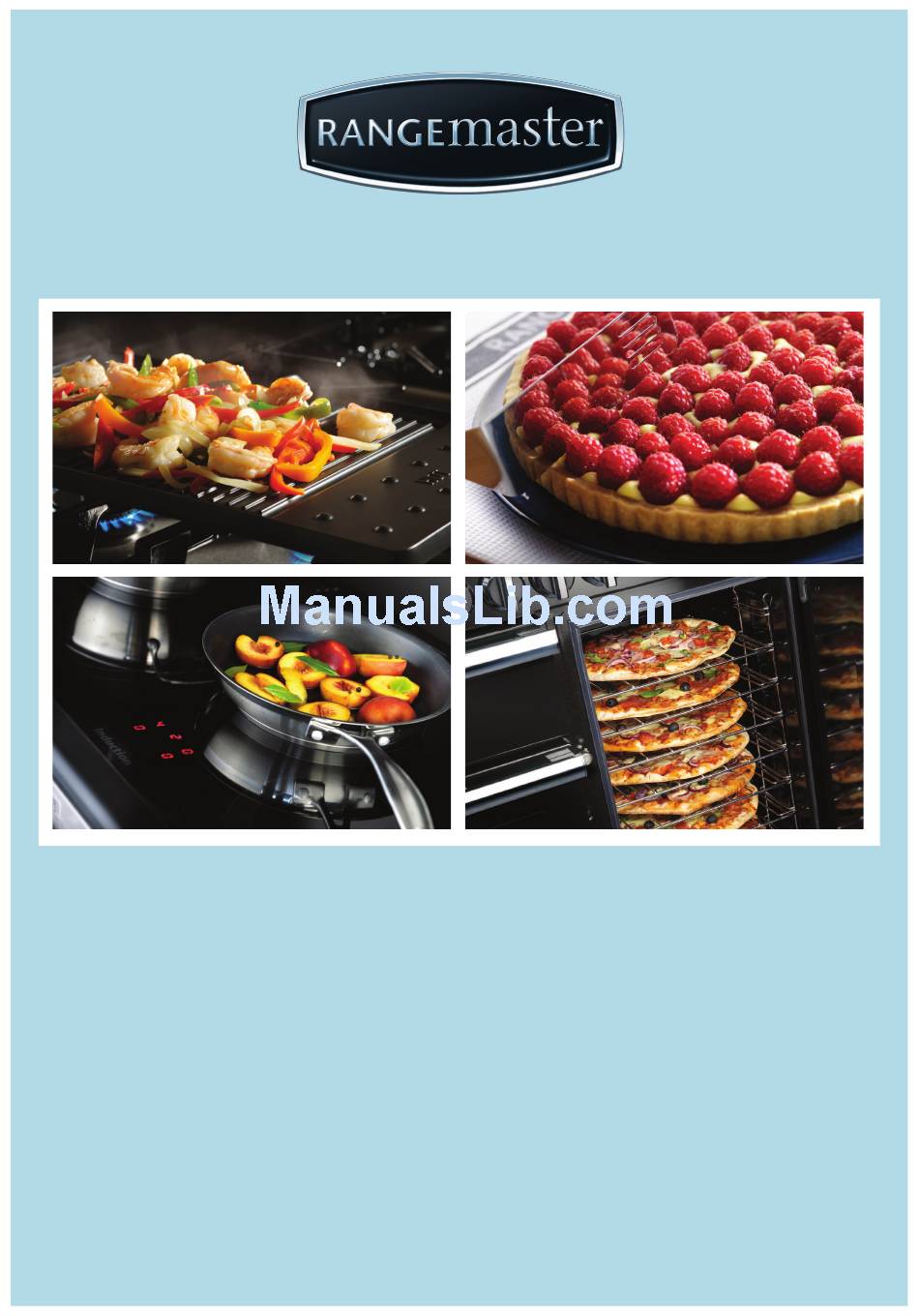

    Britain’s No.1 Range Cooker USER GUIDE & INSTALLATION INSTRUCTIONS Classic 90 Dual Fuel (Lidded) Rangemaster 90 Dual Fuel (Lidded) Toledo 90 Dual Fuel (Lidded)
  • Page 2 We offer cookware to work perfectly with all fuel types manufactured by Rangemaster, including induction hobs. You can be assured of functionality with style, as well as the quality and meticulous attention to detail you expect from the pioneers of range cooking.

  • Page 3: Table Of Contents

    Classic Hotplate Burners Rangemaster The Griddle Toledo Grill Hotplate Efficiency Control Panel, Doors and Glass Lid Hotplate Efficiency Ovens Oven Data: Classic The Tall Oven Oven Data: Toledo and Rangemaster Cleaning Table U110098-06 Classic, Rangemaster and Toledo 90 Dual Fuel...

  • Page 5: Before You Start

    1. Before You Start… This User Guide covers a number of different models. If You Smell Gas Although some of the illustrations will look different to • DO NOT turn electric switches on or off your particular model the functions will be the same. We DO NOT smoke •...

  • Page 6: Cooker Care

    DO NOT use a steam cleaner on your cooker. WARNING! Unattended cooking on a hob with fat or oil can be Always be certain that the controls are in the OFF position dangerous and may result in fire. when the oven is not in use, and before attempting to clean the cooker.

  • Page 7: Cooker Overview

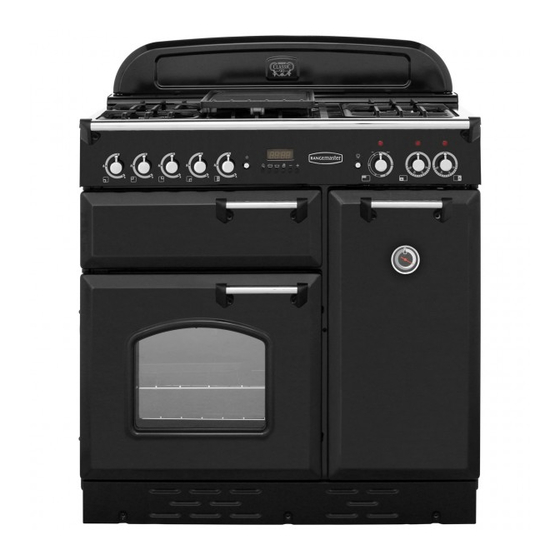

    The 90 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 Glass lid 5 hotplate burners including: – A wok burner (Classic & Toledo models) or – A high burner (Rangemaster model) A control panel A grill Main fan oven Tall fan oven Glass Lid This model has a glass lid over the hotplate.

  • Page 8: Hotplate Burners

    Hotplate Burners Fig. 2.3 The drawing by each of the central knobs indicates which burner that knob controls. Each burner has a Flame Supervision Device (FSD) that prevents the flow of gas if the flame goes out. When the igniter button is pressed in, sparks will be made at every burner –...

  • Page 9: The Wok Cradle

    Note: The use of aluminium pans may cause metallic marking Fig. 2.10 of the pan supports. This does not affect the durability of the enamel and may be cleaned off with an appropriate metal cleaner. The Wok Cradle (optional extra) The wok cradle is designed to fit a Professional 35 cm wok.

  • Page 10: The Grill

    The Grill Fig. 2.16 Open the door and pull the grill pan forward using the handle (Fig. 2.16). The grill has two elements that allow either the whole area of the pan to be heated or just the right-hand half. ArtNo.330-0003 - Grill pan w handle pulled forwards Adjust the heat to suit by turning the control knob.

  • Page 11: The Clock

    The Clock Fig. 2.21 You can use the timer (Fig. 2.21) to turn both ovens on and off. The clock must be set to the time of day before the ovens will work. Setting the Time of Day ArtNo.302-0002 - 6BC annotated When the clock is first connected the display flashes ( 0.00 ) ...

  • Page 12: Key Lock

    AUTO is Showing, you Want to Reset to Manual Fig. 2.31 Fig. 2.32 Cooking To return to manual cooking from any automatic setting, the ‘cook period’ must be cancelled. Press and hold the [] button and then press the [–] button until the display reads ArtNo.302-0009 - Activating ArtNo.302-0008 - the key lock 2...

  • Page 13: Accessories

    Accessories Flat shelf Shelf guard Oven Shelves – Left-hand (Main) Oven In addition to the flat shelves some models are supplied with a drop shelf (Fig. 2.36). The drop shelf increases the possibilities for oven shelf spacing. Front The oven shelves can be easily removed and refitted. Shelf guard Pull the shelf forward until the back of the shelf is stopped by Drop shelf...

  • Page 14: Cooking Tips

    3. Cooking Tips Tips on Cooking with the Timer General Oven Tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven.

  • Page 15: Cooking Table

    4. Cooking Table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a ArtNo.050-0007 preferred result.

  • Page 16: Cleaning Your Cooker

    5. Cleaning Your Cooker Essential Information Fig. 5.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –...

  • Page 17: Grill

    Grill Fig. 5.5 The grill pan and trivet should be washed in hot soapy water. After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush. Alternatively, the grill pan can be washed in a dishwasher.

  • Page 18: The Tall Oven

    The Tall Oven Removing the Main Oven Linings Some of the lining panels can be removed for cleaning. To clean the oven sides, slide out the shelves, unhook the supports from the oven sides, and lift out (Fig. 5.7). If you wish to clean the enamel interior of the oven, you will need to remove the shelves before removing the ‘Cook Cleaning Table &...

  • Page 19: Troubleshooting

    6. Troubleshooting Hotplate ignition or hotplate burners faulty Power failure Is the power on? Is the clock illuminated? In the event of a failure in the electrical supply, remember to reset the clock to make sure that the If not, there maybe something wrong with the power timed oven continues to operate.
  • Page 20 An oven light is not working Fig. 6.1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 15 W – ArtNo.324-0005 Oven light bulb 230 V lamp, FOR OVENS.

  • Page 21: Installation

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 7. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •...

  • Page 22: Location Of Cooker

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker Checking the Parts: The cooker may be installed in a kitchen/kitchen diner but 3 pan supports (Classic shown) Plinth (Classic shown) NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only.

  • Page 23: Positioning The Cooker

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker Fig. 7.1 Fig. 7.1 and Fig. 7.2 show the minimum recommended 75 mm 75 mm distance from the cooker to nearby surfaces. 650 mm The cooker should not be placed on a base.

  • Page 24: Moving The Cooker

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Moving the Cooker Fig. 7.5 On no account try and move the cooker while it is plugged into the electricity supply. The cooker is very heavy, so take great care. We recommend that two people manoeuvre the cooker.

  • Page 25: Repositioning The Cooker Following Connection

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Repositioning the Cooker Following Outer stability Fig. 7.10 Connection bracket If you need to move the cooker once it has been connected then you need to unplug it and, having gripped under the Cooker fascia panel and lifted the front of the cooker slightly (Fig.

  • Page 26: Gas Connection

    Although a 900 mm hose can be used, a 1250 mm hose will allow slightly more flexibility in the positioning of the ArtNo.090-0034 - RangeMaster 90 Hose connectors bayonet and make moving the cooker easier. The hose should be fitted so that both inlet and outlet connections are vertical so that the hose hangs downwards in a ‘U’...

  • Page 27: Electrical Connection

    INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Fig. 7.15 The cooker must be installed by a qualified electrician, in accordance with all relevant British Standards/Codes of Practice (in particular BS 7671), or with the relevant national and local regulations.

  • Page 28: Conversion To Lp Gas

    Lift the control panel and pull forwards, taking care not to damage or strain the wiring. Rangemaster & Toledo – Removing the Control Panel Pull off all the control knobs and remove the fixing screws underneath the control panel.

  • Page 29: Stick On Label

    WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Stick on Label Stick the LP gas label over the natural gas part of the appliance data label.

  • Page 30: Circuit Diagram

    9. Circuit Diagram P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill control Ignition spark generator Blue Grill element left-hand side Ignition switch Brown Grill element right-hand side Oven light switch...

  • Page 31: Technical Data

    10. Technical Data Classic THE COOKER IS CATEGORY: CatII 2H3+. It is supplied set for group H natural gas. A conversion kit from NG to LP is available for the cooker. INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening. COUNTRY OF DESTINATION: GB, IE, FR, NL, DE, SE, IT, AT, CH, LU, BE.

  • Page 32: Rangemaster

    29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Rangemaster 90 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 905 mm Overall depth 600 mm excluding handles, 650 mm including handles...

  • Page 33: Toledo

    Toledo THE COOKER IS CATEGORY: CatII 2H3+. It is supplied set for group H natural gas. A conversion kit from NG to LP is available for the cooker. INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Cooker back, serial number repeater badge below oven door opening. COUNTRY OF DESTINATION: GB, IE, FR, NL, DE, SE, IT, AT, CH, LU, BE.

  • Page 34: Hotplate Efficiency

    Hotplate Efficiency Brand Rangemaster Toledo Lidded Model Identification Classic Lidded Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner)

  • Page 35: Hotplate Efficiency

    Hotplate Efficiency Brand Rangemaster Rangemaster Model Identification Lidded Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner)

  • Page 36: Oven Data: Classic

    Oven Data: Classic Brand Rangemaster Model identification Classic Lidded Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Fanned Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional...

  • Page 37: Oven Data: Toledo And Rangemaster

    Oven Data: Toledo and Rangemaster Brand Rangemaster Rangemaster Lidded Model identification Toledo Lidded Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Fanned Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional...
  • Page 38 Note...
