Summary of Contents for ASA Electronics Voyager AOM681

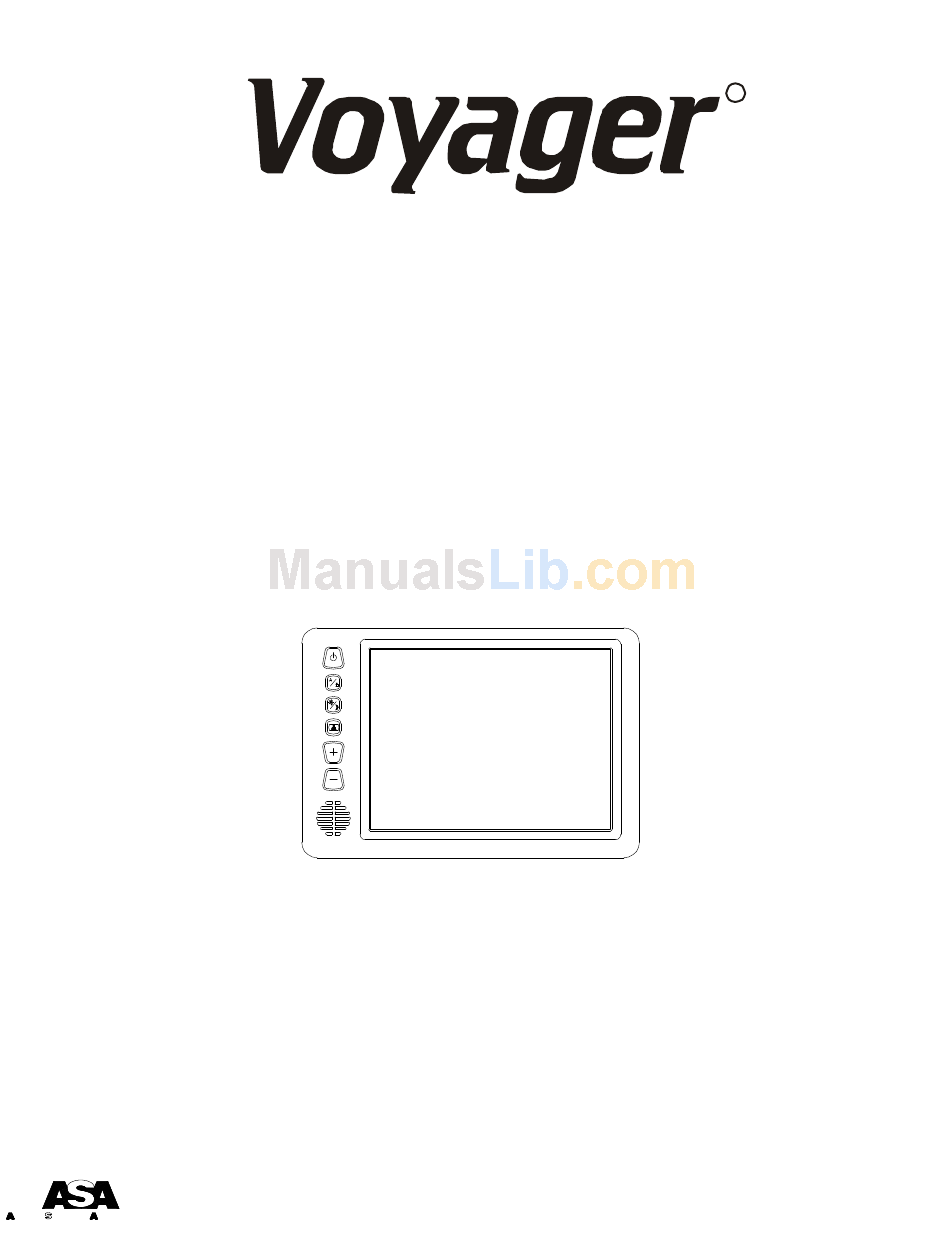

Page 1
MONITOR OWNER’ S MANUAL UDIOVOX PECIALIZED PPLICATIONS, L.L.C. AOM681 AOM681 Features: ? 6.8” High Performance Color LCD ? Water Resistant Design ? Built-in Audio Speaker with Volume Control and 12V Trigger ? 2 Camera (A/V) Input with A/B Select Control...
Page 2
Important! – Please Read This Manual Before Installing! Congratulations on your purchase of a Voyager AOM681 LCD Observation Monitor. With proper installation and use, your AOM681 is designed to provide you with years of trouble-free operation. This manual contains important information required to properly install and operate the unit.
90 DAY/ 12 MONTH LIMITED WARRANTY Audiovox Specialized Aplications, LLC (the company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of purchase, such defect(s) will be repaired or replaced (at the company's option) without charge for parts and labor repair.
CONTROLS AND OPERATION 1. Power/Stand-By Button The AOM681 has two possible operation modes for turning the unit on/off. In manual mode, the power button is used to turn the unit on/off. In stand-by mode, the unit automatically turns on only when 12V is applied to the stand-by trigger wire.
Page 5
These buttons also serve as adjustment controls while in the Picture Adjustment Menu mode (see above section for details). *Note: The AOM681 requires +12V to be applied to the “Audio Enable” trigger input in order to activate the built-in speaker. If no audio output is heard from the speaker...
10. Install the PanaVise mount to the LCD monitor using the #10 self-drilling screws (included). **Important: Do not use screws other than those provided with the AOM681. Void of warranty and serious product damage will occur.
Page 7
5’ intermediate cable included with the AOM681 to connect the monitor to the junction box. If more cable length is needed, additional 5’ lengths of the intermediate cable can be purchased. (See the accessory list at the back of this manual for part number details.)
Page 9
REAR OBSERVATION INSTALLATION DISTANCE MARKER USE/INSTALLATION 1 FT 2 FT 5 FT FIGURE A FIGURE B -PLACE INDICATOR MARKERS (CONE, BOX ANY REFERENCE OBJECT HANDY) BEHIND VEHICLE AS IN FIGURE A. -PLACE RANGE MARKER DECALS ON SCREEN OF MONITOR OVER IMAGE OF INDICATOR MARKERS ON GROUND BEHIND VEHICLE, AS VIEWED ON THE MONITOR SCREEN.
Page 10
JUNCTION BOX MOUNTING TEMPLATE PANAVISE MOUNT TEMPLATE (OPTIONAL ACCESSORY – SEE PAGE 8)
