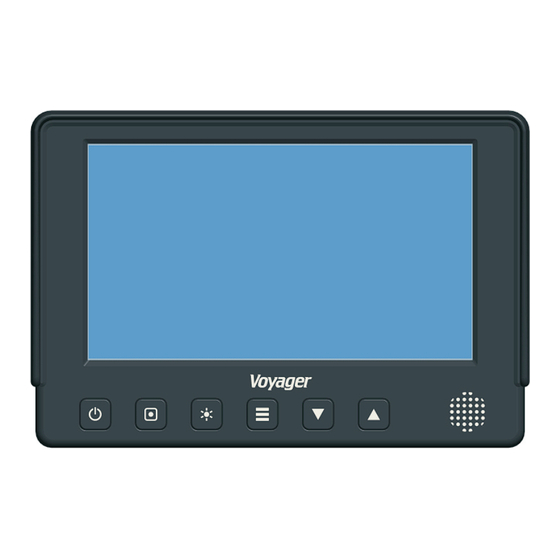

7" COLOR TFT LCD MONITOR
Engineered for heavy-duty, commercial use
Six camera triggers
Waterproof housing (IPX6)
Supports AMPS mounting pattern
High-performance Automotive Grade 7" Color LCD Panel
Four Camera Inputs
Single/Split/Quad Display Modes
PAL/NTSC Compatible
DC Auto Source for Switching Triggers (Turn Signal Compatible)
Backlight Control Buttons
Built-in Audio Speaker
Compatible with Voyager Wired Cameras
VOM719WP
OWNER'S MANUAL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ASA Electronics Voyager VOM719WP
Summary of Contents for ASA Electronics Voyager VOM719WP
- Page 1 VOM719WP 7" COLOR TFT LCD MONITOR OWNER’S MANUAL Engineered for heavy-duty, commercial use Six camera triggers Waterproof housing (IPX6) Supports AMPS mounting pattern High-performance Automotive Grade 7" Color LCD Panel Four Camera Inputs Single/Split/Quad Display Modes PAL/NTSC Compatible DC Auto Source for Switching Triggers (Turn Signal Compatible) Backlight Control Buttons Built-in Audio Speaker Compatible with Voyager Wired Cameras...
- Page 2 Moisture Your Voyager VOM719WP is designed to be IP66 water-resistant. Therefore it can withstand long period of exposure to moisture. This unit should NEVER be cleaned with a power washer or used where direct power washer spray may be encounted.
- Page 3 POWER/TRIGGER CABLE CAMERA CABLE QTY.1 QTY.1 MACHINE SCREW SUNVISOR QTY.12 (M4X8MM) QTY.1...
-
Page 4: Power On/Off
1. POWER ON/OFF 2. CAMERA 3. DIMMER Primary Function: Enter Menu 4. MENU -Press to enter the menu Secondary Function: Menu Option Selection -When in menu mode, press to select the highlighted function or option setting Third Function: Auto Scan -Press button for 3s, the monitor will enter into the auto scan function 5&6. - Page 5 PRESS TO ENTER THE MENU PRESS TO SELECT...
- Page 9 Rear-mounted cameras used for monitoring while backing up should be connected to the Camera 1 input. If the rear camera image is desired to be displayed automatically when in reverse gear, channel 1 trigger should be connected to the reverse gear light circuit in the vehicle.
-
Page 10: Typical System Connection
TYPICAL SYSTEM CONNECTION POWER IN 12-24V DC... - Page 11 View Angle (CR 10)
