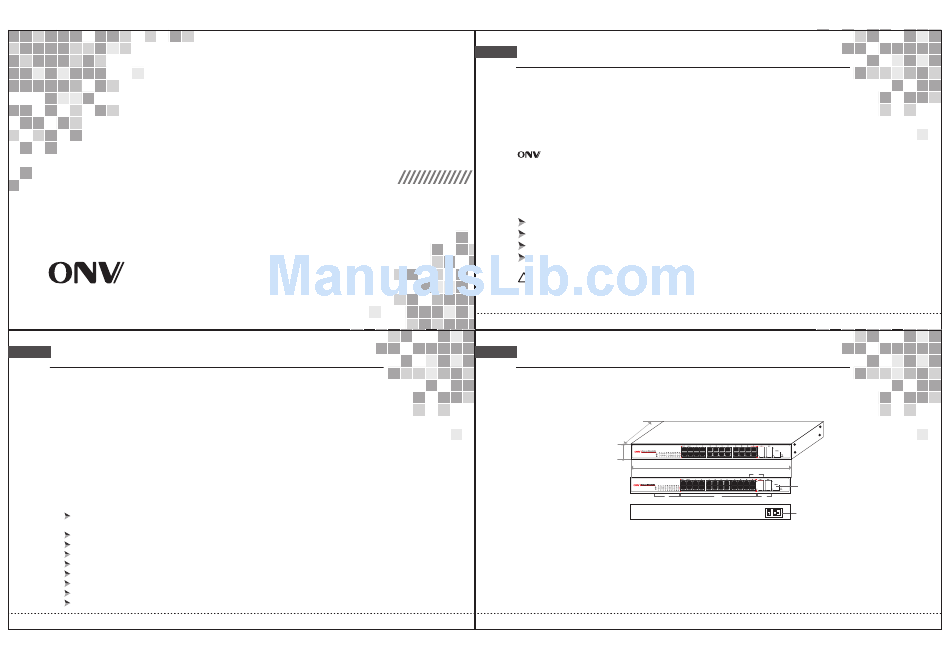

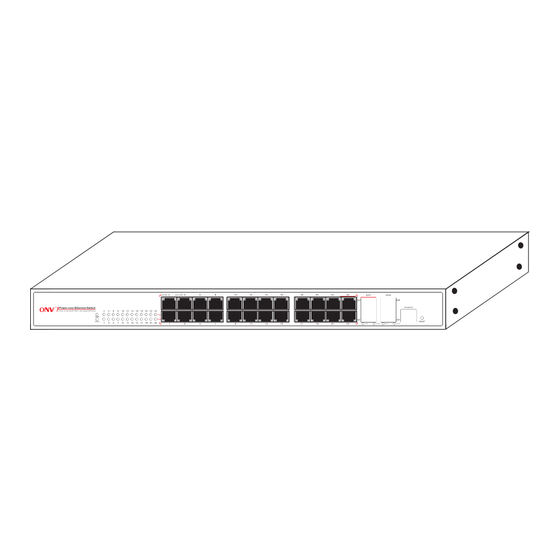

ONV -POE33026PFM User Manual

USER GUIDE

PoE & Optical Transmission
PoE & Optical Transmission

Product Description

Over view
The full Gigabit Ethernet PoE switch can provide seamless connection for 10/100/1000M Ethernet
network and equipped with PoE function, can be used as Ethernet power supply device (PSE). It can
automatically identify the connected devices whether compatible with IEEE 802.3af or IEEE 802.3at
standards, and then supply power for them. The Gigabit PoE switch makes it easier to deploy wireless
access point (AP) and IP-based terminal network equipment with PoE technology.
PoE Technology is Power over Ethernet technology, It is refering to transfer both Ethenet data and and DC Power at the same
time for IP Phone,Wilress AP, IP-based camera. These devices which receive DC power is called Powered Device(PD).
Note:
The product 'Switch' mentioned in the manual, if without a special request, it refers to 10/100/1000M
PoE switch, (PoE) switch in short in below.

Features

Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP
Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
26-port gigabit Managed PoE switch, 22-Port 10/100/1000Base-T + 2 Combo + 2 (100/1G) SFP
L2+ features provide better manageability, security, QoS, and performance.
Support spanning tree STP(802.1D) and RSTP(802.1W).
Jumbo frames support up to 9.6K kilobytes.
Support enhanced management through WEB, CLI, TELNET,
Support cable diagnosis
IEEE 802.3af and 802.3at. Supports per port PoE configuration function
G.8032, support <50ms industrial quick ring protection
26-port Full Gigabit Managed PoE Switch Series
SSH, SNMP.

Statement

Copyright @ 2002-2015 Optical Network Video Technologies (Shenzhen) Co., Ltd
All Rights Reserved
This document contains proprietary information that is protected by copyright. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written
permission of Optical Network Video Technologies (Shenzhen) Co., Ltd.
®
is the registered trademark of Optical Network Video Technologies (Shenzhen) Co., Ltd. The information
and product specifications within this document are subject to change at any time, without notice and without obli-
gation to notify any person of such change.

Packing List

Please kindly check the following items:
1 x PoE switch
Power Cable
Mounting Kits
1x User Guide/Warranty Card
Note
!
If any shortage or damage found, please contact us in time.

Structure and Port Description

290mm
44.5mm
440mm
A
A. Working Indicator
B. PoE Ports
C. 4x Optic Uplink ports
E
D
B C
AC/IN 100-240V
F
D. Console Port
E. 2x RJ45/Optci Combo ports
F. AC100-240V,50/60Hz Input
