USER GUIDE
PoE & Optical Transmission
PoE & Optical Transmission
Product Overview
Product Introduction
ONV-IPS33148PFM
series has 8x Rj45 Ethernet ports that compliant with 10/100
and 802.3at(PoE+), 2x gigabit RJ45&SFP combo ports, and 4x gigabit SFP ports. This switch can offer power
over Ethernet to network weatherproof IP camera with wipers and heater, high performance wireless AP,
industrial VoIP phone or other PoE supported equipments, flexible for applications. SFP fiber optic port
transmission distance can be up to 120KM, with high resistance to electromagnetic interference. Besides,
it supports enhanced management through WEB, CLI, TELNET, SSH, SNMP.
In short, this industrial PoE switch provide better manageability, security, QoS, and performance.
!
Note
The product 'Switch' mentioned in the manual, if without a special request, it is referring to industrial ONV-IPS33148PFM PoE switch,
PoE switch in short in below.
Feature
10-Port 10/100/1000Base-T + 4 (100M/1G) SFP L2 Plus Managed POE+ Switch
L2+ features provide better manageability, security, QoS, and performance
Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping,
LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc.
Support spanning tree STP(802.1D) and RSTP(802.1W)
Jumbo frames support up to 9.6K kilobytes
Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
Support cable diagnosis
Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function
G.8032, support <50ms industrial quick ring protection
ONV-IPS33148PFM Series
/1000
BaseT, 802.3af(PoE)
Statement
Copyright @ 2002-2015 Optical Network Video Technologies (Shenzhen) Co., Ltd
All Rights Reserved
This document contains proprietary information that is protected by copyright. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written
permission of Optical Network Video Technologies (Shenzhen) Co., Ltd.
®
is the registered trademark of Optical Network Video Technologies (Shenzhen) Co., Ltd. The information
and product specifications within this document are subject to change at any time, without notice and without obli-
gation to notify any person of such change.
Packing List
Please kindly check the following items:
1 x Industrial PoE switch
Power Kits (Need to order it separately)
Mounting Kits
1x User Guide/ Certificates/Warranty Card
Note
!
If any shortage or damage found, please contact us in time.

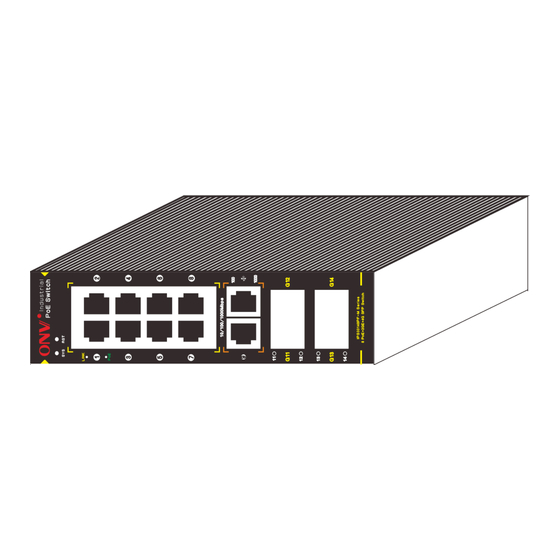

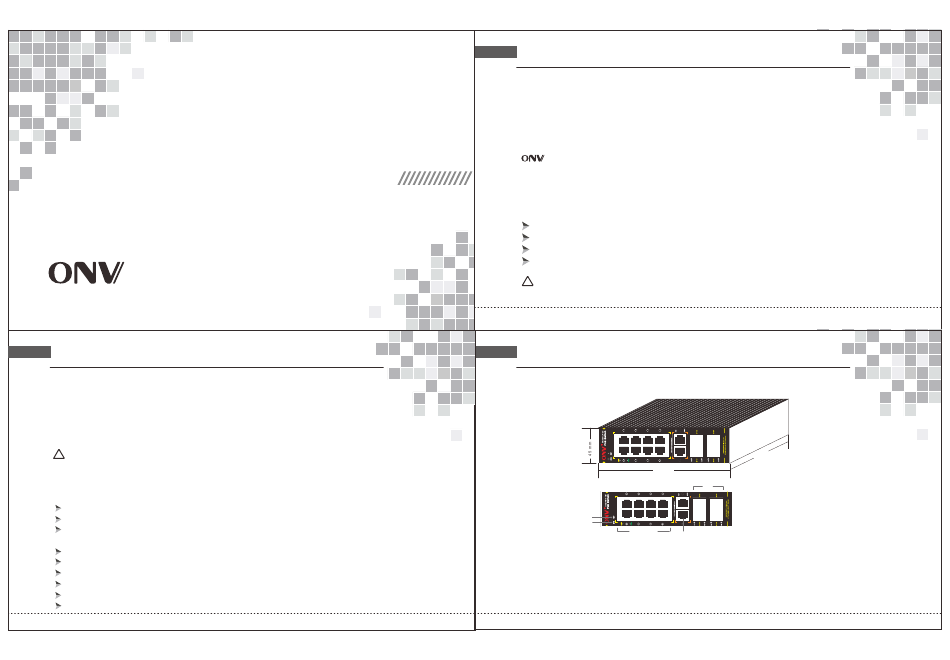

Technical Structure and Port Description
165 mm
D
E
A
B
A. PoE Ports
C. Gigabit SFP Uplink
D. Reset
B. Gigabit Rj45 Uplink
E. System Working Indicator
m
5 m
1 4
C
