Summary of Contents for Midland G5 C

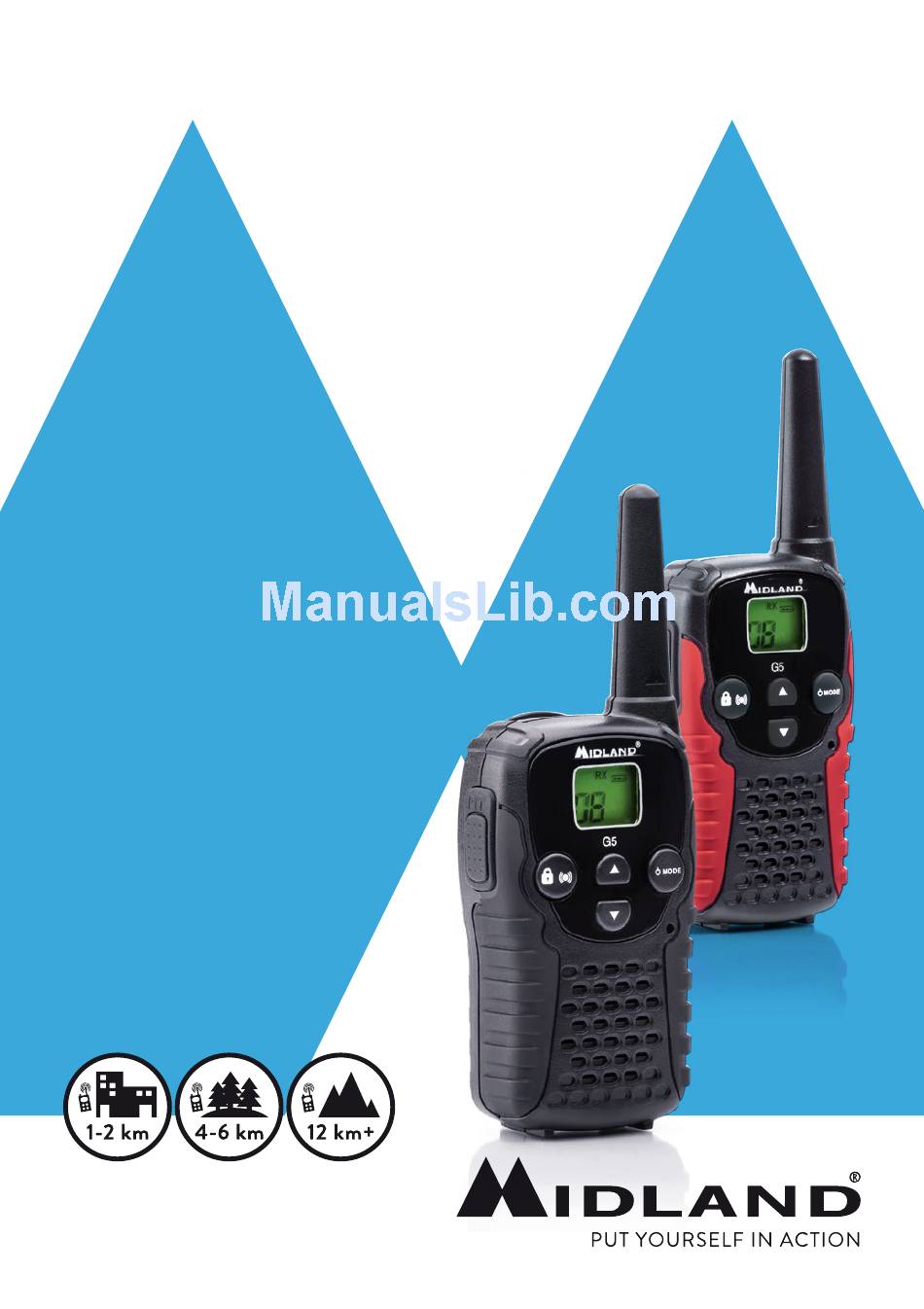

- Page 1 MIDLAND G5 C PMR446 TRANSCEIVER › USER MANUAL Coverage* * Depending on terrain...
-
Page 2: Table Of Contents
Index Content Coverage/range Description of the controls and functions Operations and functions Power On/power Off Volume adjustment Channel selection Transmission and reception Squelch Monitor Keypad Lock CTCSS tones Beep Tone Roger Beep (end of transmission tone) Call Alert selection Dual Watch Out of Range Baby Sitter channels... - Page 3 The battery compartment and the belt clip Recharging the battery and power save Memory effect of rechargeable batteries Battery level indicator Use and care Table of solutions Technical specifications...
- Page 4 Midland G5 C is a new PMR446 transceiver; small-size and easy to use but com- plete and reliable at the same time. Besides the many functions usually included in PMR446 radios, G5 C is also equipped with the Baby Sitter mode, to listen to your baby at distance.
-
Page 5: Content
Content • 2 Midland G5 C transceiver • 6 x AAA rechargeable batteries 800mAh • 2 beltclips • 2 wall chargers Coverage/range The maximum range depends on terrain condition and is obtained during use in an open spaces. The only limitations to maximum possible range are environmental factors such as blockage caused by trees, buildings, or other obstructions. -
Page 6: Description Of The Controls And Functions
Description of the controls and functions Display Your midland G5 C keeps you constantly updated about its operational status through a Liquid Crystal Display (LCD). The symbols and their corresponding parameters that may appear,according to the operational status of the device,... - Page 7 Midland G5 C user manual...
- Page 8 MODE/ - Press this button to enter the radio’s menu. If you keep it pressed for about 3 seconds, you turn on/turn off the radio. EXTERNAL SPEAKER/MIC/CHG JACK - It allows the connection with external devices such as headsets, microphones, charger… Midland G5 C user manual...
-
Page 9: Operations And Functions
04 16 corresponds to channel 05 16 corresponds to channel 06 16 corresponds to channel 07 16 corresponds to channel 08 16 corresponds to channel 01 31 corresponds to channel 03 31 Midland G5 C user manual... -
Page 10: Transmission And Reception
To receive a CALL, release the PTT button. The “RX” icon will appear on the display when your radio is receiving a transmission. Squelch In MIDLAND G5 C the squelch (filter to suppress noises) is always active. Monitor Press MODE and / at the same time to open the squelch and allow the reception of weak signals. -
Page 11: Ctcss Tones
Select then “off” using the scroll buttons ▲▼. To confirm, press PTT or wait for 5 seconds. Note: To communicate with other radios, they must be set to the same channel and Privacy Code selections. Midland G5 C user manual... - Page 12 136.5 74.4 141.3 77.0 146.2 79.7 151.4 82.5 156.7 85.4 162.2 88.5 167.9 91.5 173.8 94.8 179.9 97.4 186.2 100.0 192.8 103.5 203.5 107.2 210.7 110.9 218.1 114.8 225.7 118.8 233.6 123.0 241.8 127.3 250.3 Midland G5 C user manual...
-
Page 13: Vox
Your G5 C has 4 VOX levels (off, 1, 2, 3, and 4). This function allows the user to activate the communication without pressing the PTT button. You just have to speak and the communication is on. You can set the VOX on 3 levels, with or without accessories. -
Page 14: Call Alert Selection
Call Alert selection G5 C allows to send a CALL alert signal to all the users of the same channel. To call, quickly press twice the PTT button. On the display the “TX” icon appe- ars and the tone of confirmation can be heard by your own speaker. -
Page 15: Out Of Range
▲▼. Confirm the settings with the PTT button or wait for 5 seconds. The display will shows . By setting this mode a pair of G5 C is transmitting every 60 seconds a data control code. As soon as the contact between both units is getting lost and one station doesn’t receive this data control code twice consecutively, the icon... - Page 16 Baby Sitter function Your G5 C is equipped with the “Baby Sitter” function. Press the MODE button till the display shows “Bp of”. Select with the scroll buttons ▲▼ the baby mode “b” or the sitter (parents) mode “p”. To confirm, press the PTT button or wait for 5 seconds. The display will show the selected mode and the icon .
-
Page 17: Baby Sitter Channels
14 | Midland G5 C user manual... -
Page 18: The Battery Compartment And The Belt Clip
Installation of the batteries: Remove the belt clip. Insert the AAA Alkaline battery or the rechargeable bat- tery into the battery compartment; replace the battery cover and fix the belt clip. Midland G5 C user manual | 15... -
Page 19: Recharging The Battery And Power Save
G5 C. It takes 10/12 hours to fully recharge. For maximum battery life, we recommend charging the battery pack when the G5 C is off and the low battery icon comes on. When the batteries are dischar- ged, the icon appears “bt lo”... -
Page 20: Memory Effect Of Rechargeable Batteries
The greater the number of bars visible, the stronger the battery level will be. When the battery level is low, the battery icon “bt lo” will flash in the di- splay, indicating that your batteries should be replace or recharged if using a rechargeable battery. Midland G5 C user manual | 17... -
Page 21: Use And Care
The mechanics and electronics radio precision require experience and speciali- zed equipment; for the same reason, the radio should under no circumstances be realigned as it has already been calibrated for maximum performance. Unauthorized opening of the transceiver will void the warranty. 18 | Midland G5 C user manual... -
Page 22: Table Of Solutions
Move to another area. shielded area or is too far from the party you are communicating with Incorrect CTCSS Check that the CTCSS tone corresponds to the one set by the parties you are communicating with. Midland G5 C user manual | 19... - Page 23 The VOX feature The sensitivity is too low. If the environmental requires speaking noise is not high, increase in a loud voice the sensitivity or use an optional microphone 20 | Midland G5 C user manual...
-
Page 24: Technical Specifications
Aerial ......................12.5 KHz Rated power supply ........3x 1.2 V 800 mAh (Rechargeable) ......(model: LR3, NiMH, rechargeable, manufactured by Midland) ! Do not try to charge alkaline batteries or non rechargeable batteries. Make sure that when you charge the radio, only rechargeable NI-MH batteries... - Page 25 22 | Midland G5 C user manual...
- Page 26 Here, the various materials will be divi- ded by characteristics and recycles, thus making an important contribution to environmental protection. Midland G5 C user manual | 23...
- Page 27 Importado por: ALAN COMMUNICATIONS, SA C/Cobalt, 48 - 08940 Cornellà de Llobregat (Barcelona - España) www.midland.es El uso de este equipo puede estar sujeto a la obtención de la correspondiente autorización administrativa. Lea atentamente las instrucciones antes de usar el equipo.
