LST ABF216-1 Specification Sheet

Display and Operating Panel
ABF216-1
• Complete or restricted operation of
the fi re detection control panel
• Complete or fi ltered display of the
events of the fi re detection control
panel
• 4 line alphanumeric text display
• Menu-driven operation
• Continuous monitoring of the data
communication
Description

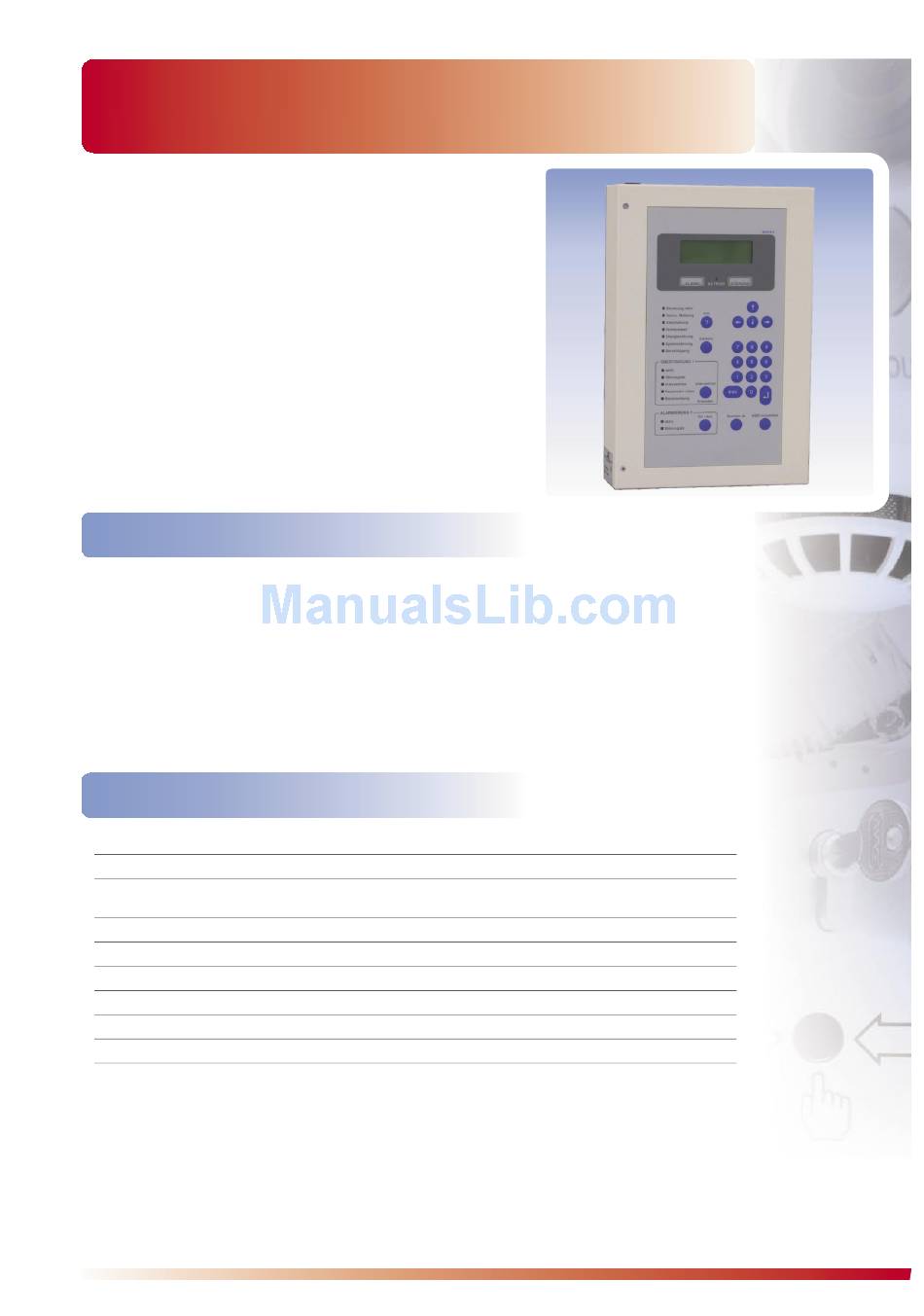

The Remote Display and Operating Panel ABF216-1 is
a remote tableau for the operation of a Fire Detection
Control Panel BCnet216 and for the indication of its
events. It provides the same ease of use and offers
the same information (LED indicators and four-line text
display) as a sectional control panel allowing operation.
Depending on the parameter setup, all or selected
GSSnet members can be operated, and the events of
all or selected GSSnet members are displayed.
Specifi cations
Operating voltage
Current consumption at 24V
GSSnet line length
Ambient temperature
Dimensions W × H × D
Colour
Weight
Order number
Order name
