Technical Characteristics
Operating Voltage:
Current consumption:
Relays:
Relay time:
Codes:
IP rating:
Housing:
Mounting:
Wiring:
Operating temperature:
Mounting
Note: Wall mount box not supplied!

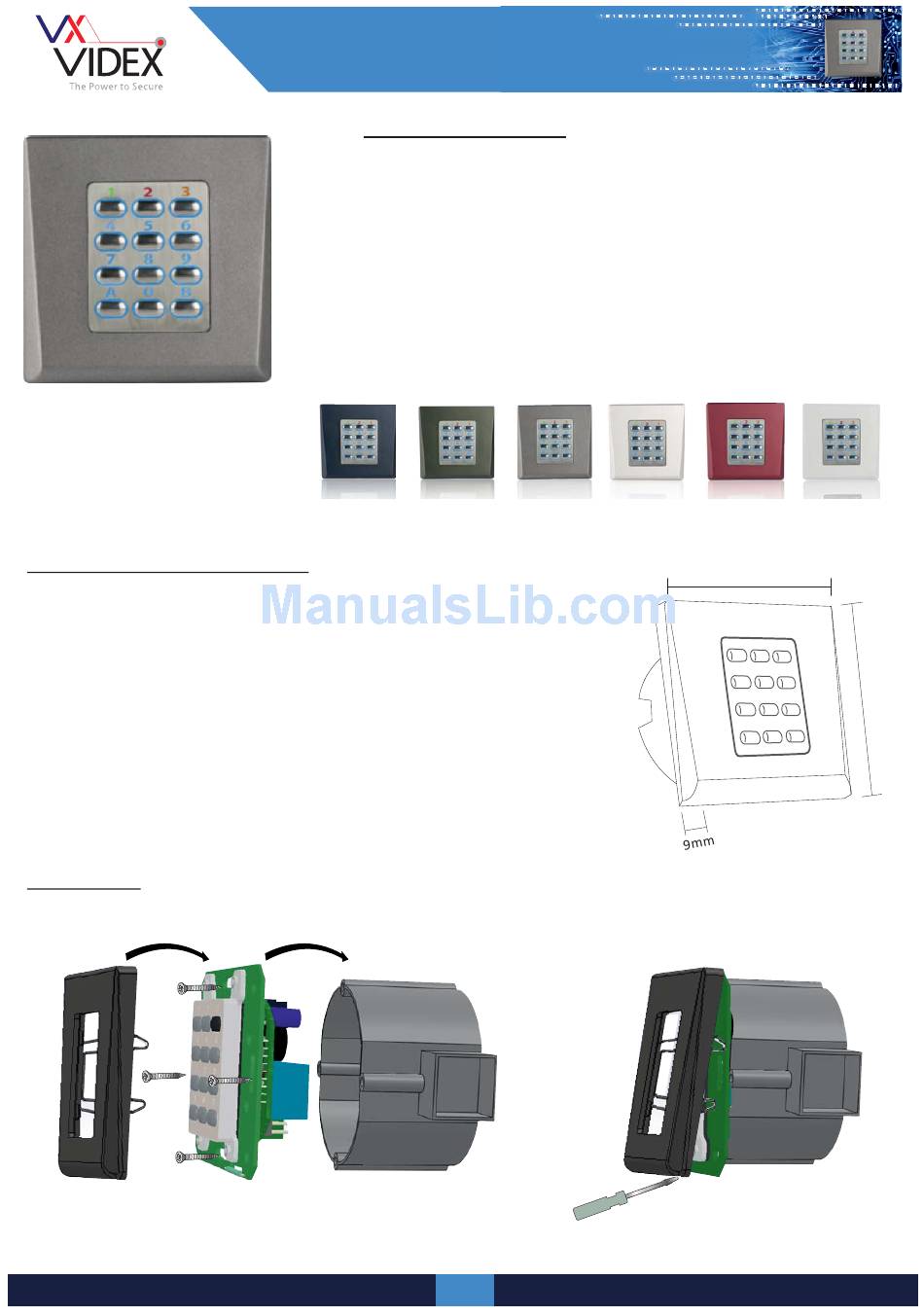

User Manual
These low profile standalone keypads are designed to fit a UK
single gang electrical back box and are available in 6 different
colour finishes.
They incorporate an easy to follow programming menu allowing
up to 99 unique codes and the setting of relay output times.
The units also include inputs to trigger the relay from a push to
exit button.
12-24V DC; 15-24V AC
Standby 30mA; Max 100mA
3A @ 24V DC / 230V AC
1 - 99 Seconds or latching (00)
99 User codes (1 - 8 digits)
IP40
ABS
UK electrical flush back (single gang)
Terminal block
-25°C to +50°C
DINPAD
1
80mm
80mm
DINPAD
Advertisement
Related Manuals for Videx DINPAD
Summary of Contents for Videx DINPAD
-
Page 1: User Manual
DINPAD User Manual These low profile standalone keypads are designed to fit a UK single gang electrical back box and are available in 6 different colour finishes. They incorporate an easy to follow programming menu allowing up to 99 unique codes and the setting of relay output times. - Page 2 DINPAD Terminals 12 / 24V Power supply 12/24V AC / DC Power supply TAMPER AC/ DC Push to exit DINPAD Tamper Tamper output (dry contact) Tamper Relay 1: Normally open Relay 1: Common COM1 Relay 1: Normally closed Relay 2: Normally open...
- Page 3 DINPAD Jumpers Default: Backlight - closed; Reset - open Backlight Reset Permanent Backlight ON/OFF Redefine Master Code Backlight jumper - Closed; Backlight always on Open; Backlight active upon keypress Master reset jumper - It is possible to redefine and restore the default setting if the Master code is forgotten.
-
Page 4: Delete A User Code
DINPAD Adding a User Code Relay/Output Time Enter Master Code Enter Master Code (Factory Default = (Factory Default = Followed by Followed by Yellow LED on Yellow LED on Press 0 Enter < output number > (1 or 2) Enter <... -
Page 5: Troubleshooting
DINPAD Troubleshooting Keypad does not respond to key presses 1. Check the correct voltage is present on the input terminals (12/24v ac/dc). Keypad is not accepting default master code 000 1. Perform master code reset. Keypad no longer accepts user code 1. - Page 6 DINPAD DINPAD...
- Page 7 DINPAD DINPAD...
- Page 8 DINPAD Northern Office Videx Security Ltd Unit 4-7 Chillingham ind Est Newcastle Upon Tyne NE6 2XX Tel: 0870 300 1240 Fax: 0191 224 5678 Southern Office 1 Osprey Trinity Park Trinity Way London E4 8TD Fax: 0208 523 5825 Technical Support tech@videx-security.com...
