Technical Characteristics
Operating Voltage:
Current consumption:
Output:
IP rating:
Housing:
Mounting:
Operating temperature:
Mounting
Note: Wall mount box not supplied!
User Manual

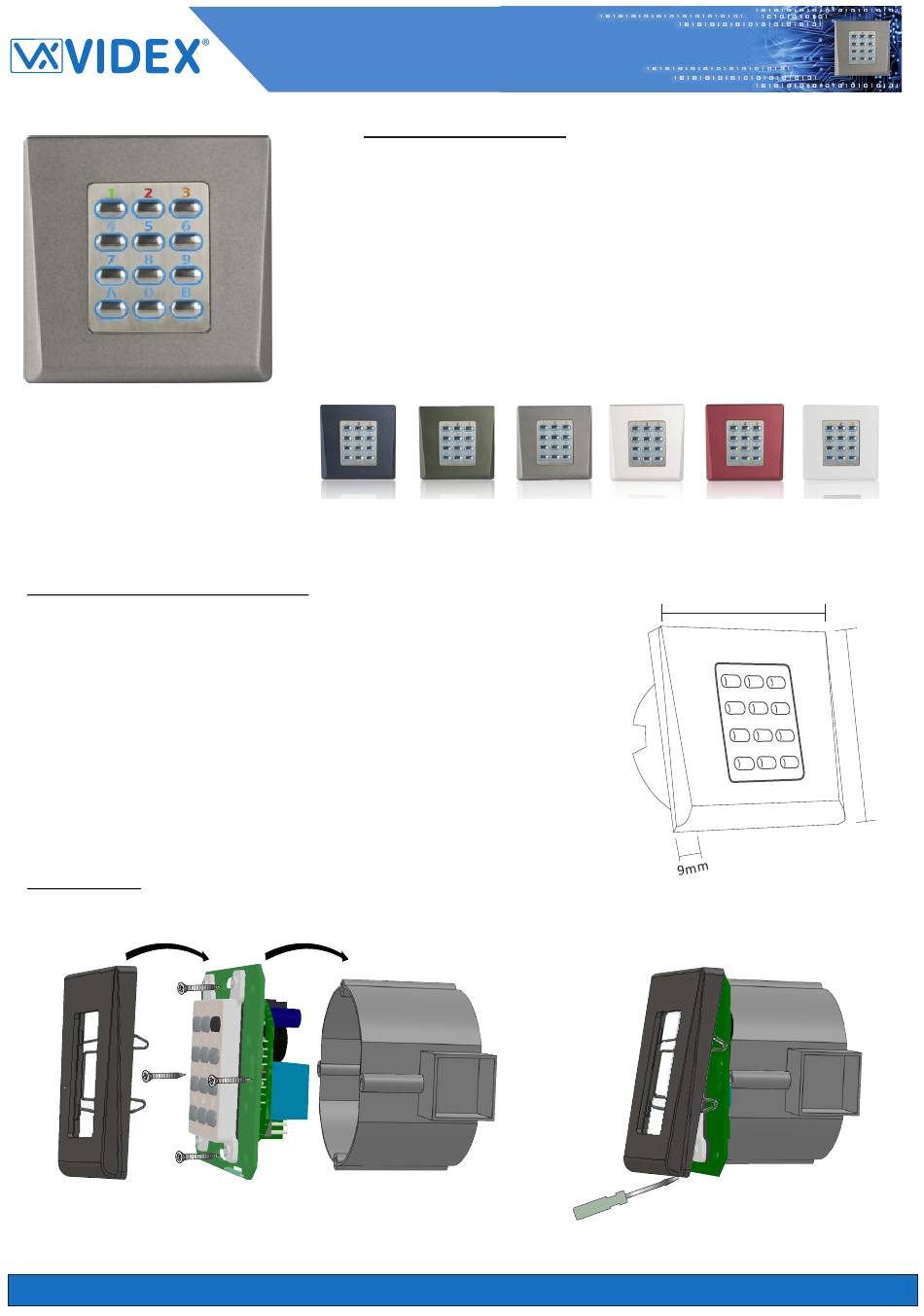

These low profile multiprotocol keypads are designed to fit a
UK single gang electrical back box and are available in 6
different colour finishes.
The DINPAD-M has a selectable Wiegand output (26, 30, 34
and 40 bit) and is compatible with Portal Plus.
12V dc
Max 70mA
Wiegand (26, 30, 34, 40 bit), Clock & Data
or Codix
IP40
ABS
UK electrical flush back box (single gang)
Terminal block
-20°C to +50°C
DINPAD-M
1
80mm
80mm
DINPAD-M
Advertisement
Table of Contents
Related Manuals for Videx DINPAD-M
Summary of Contents for Videx DINPAD-M
- Page 1 These low profile multiprotocol keypads are designed to fit a UK single gang electrical back box and are available in 6 different colour finishes. The DINPAD-M has a selectable Wiegand output (26, 30, 34 and 40 bit) and is compatible with Portal Plus. Technical Characteristics...
- Page 2 DINPAD-M Terminals 12v DC 12v DC Ground Codix Codix output Connection to DINMTPX D1 / data Wiegand output (D1) or data proximity reader D0 / clock Wiegand output (D0) or clock LED Green - Green LED - LED Red -...
- Page 3 Settings in the DINPAD-M 1. Enter the Menu of DINPAD-M. Press B+000000. 2. Press 6, press 4. The Preset, programs the DINPAD-M Keypad to work with EWS controller in Wiegand 26bit. 3. Adjust the PIN Length. Press 4, then press 5.
- Page 4 1. Connect both devices with the cable provided. DINMTPX-M tamp LR- LG- D1 D0 gnd +12V 2. Connect the DINPAD-M keypad to the controller. The proximity reader is not connected to the controller. Codix D1/ data D0/ clock LED Green -...
- Page 5 Submenu 2 - Select Type of Wiegand. With this the Keypad can be adjusted to send 4 different Wiegand Outputs. The Wiegand selected must be the same as the controller’s Wiegand Input where the DINPAD-M Keypad is being connected. Example: If you use a controller that recognizes Wiegand 34bit, then enter the menu of DINPAD-M, press 2, then press 3.
- Page 6 DINPAD-M DINPAD-M...
- Page 7 DINPAD-M DINPAD-M...
- Page 8 DINPAD-M Northern Office Videx Security Ltd Unit 4-7 Chillingham ind Est Newcastle Upon Tyne NE6 2XX Tel: 0870 300 1240 Fax: 0191 224 5678 Southern Office 1 Osprey Trinity Park Trinity Way London E4 8TD Fax: 0208 523 5825 Technical Support tech@videxuk.com...
