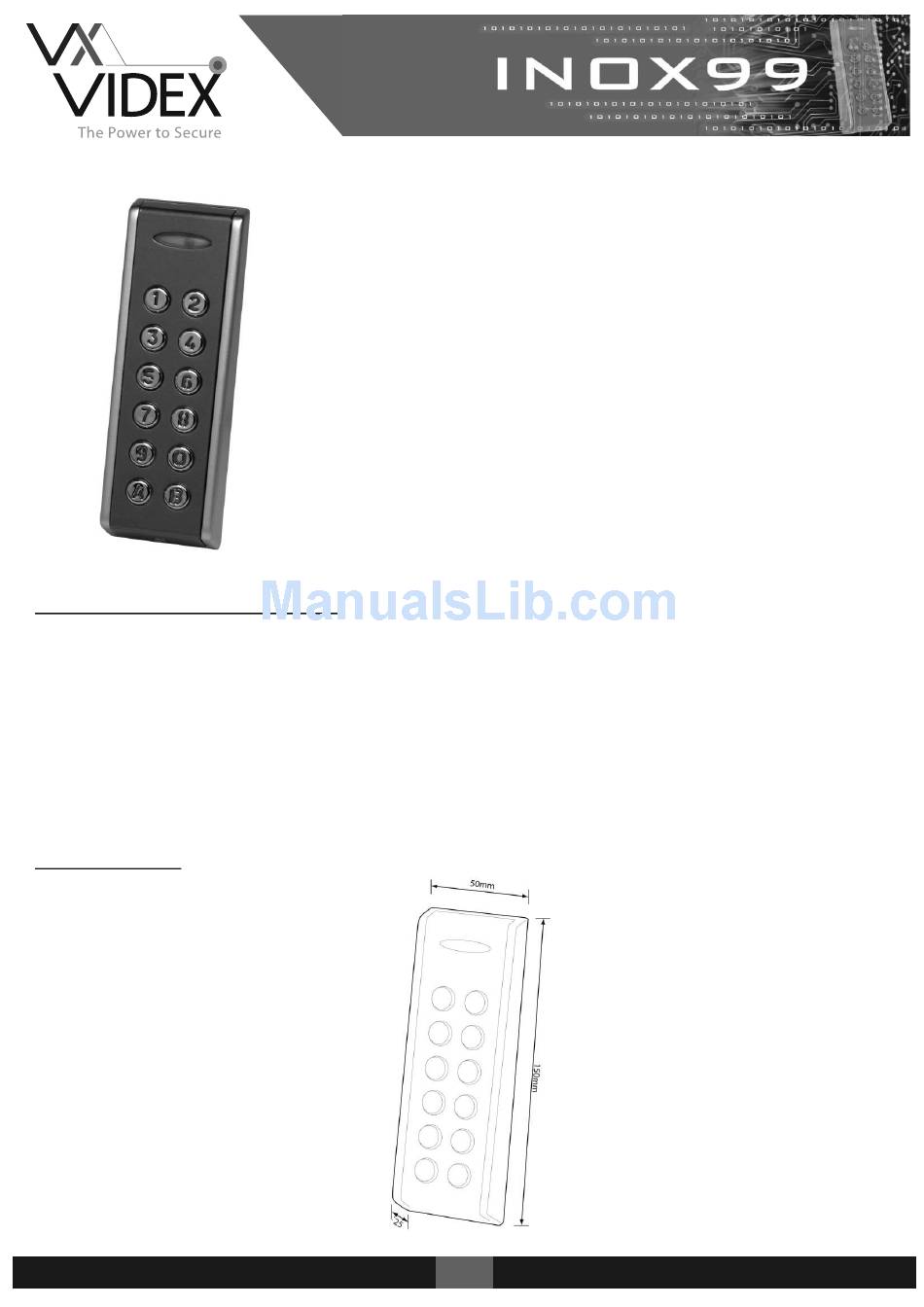

Ip rated standalone keypads

Advertisement

Technical Characteristics

Codes:
Relays / Outputs:
Relay / Output Time:
IP Rating
Power:
Current:
Dimensions
These robust IP rated standalone keypads are designed to
operate in both internal and external environments.
INOX99 Keypads are ideal for door frame mounting and
include backlit metallic keys.
They incorporate an easy to follow programming menu
allowing up to 99 unique codes and the setting of the
relay output time. The unit also includes an input to
trigger the relay from a push to exit button.
Both audible and visual indication is standard indicating
that a code is correct or incorrect while also helping to
navigate through the programming menu.
99 User Codes (1 - 8 digits)
1 Relay - R1: (2A @ 24v AC/DC)
1 Transistor Output - T1: (Ic max = 800mA, Vceo max = 30v)
1 - 99 Seconds or latching (00)
IP67
12/24v AC/DC
Standby 20mA / Maximum 70mA
1
EX5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INOX99 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Videx INOX99 Series

  • Page 1 These robust IP rated standalone keypads are designed to operate in both internal and external environments. INOX99 Keypads are ideal for door frame mounting and include backlit metallic keys. They incorporate an easy to follow programming menu allowing up to 99 unique codes and the setting of the relay output time.
  • Page 2: Installation Instructions

    Installation Instructions Magnet holder Flat surface 2 (M4 x 30mm CSK Philips) 1 (M3 x 6mm) 3 (M4 x 30mm CSK Philips) Terminal Connections Colour Connections 12/24V (AC/DC) 12/24V (CA/CC) Dipswitch AC/DC Black White Yellow Relay Grey Green Transistor Blue Exit Orange Brown...
  • Page 3 12v / 24v DC Wiring Diagram 12/24 DC (AC/DC) 12/24V (CA/CC) Black White Yellow IN4002 Grey Green Blue Orange (Normally Open) Brown Voilet Pink 12v / 24v AC Wiring Diagram 12/24 AC (AC/DC) 12/24V (CA/CC) Black White Yellow 100nF Grey Green Blue Orange...
  • Page 4 Using Transistor Output With a Art.506 Relay (12v dc) 12 DC (AC/DC) 12/24V (CA/CC) Black White Yellow Grey Green Blue Orange Brown Voilet Pink...
  • Page 5 Adding a User Code Relay/Output Time Enter Master Code Enter Master Code (Factory Default = 000) (Factory Default = 000) Followed by B Followed by B Yellow LED on Yellow LED on Press 0 Enter <output number> (1 or 2) Enter <user number>...
  • Page 6: Troubleshooting

    Resetting the Master Code 2578 Disconnect power. Switch off dip switch 1 Enter the default master code 000 Switch on dip switch 1. Yellow LED switches on + Long beep Enter the new master code e.g 2578 Reconnect power. Press A followed by Beep Beep Beep Beep + Yellow LED blinks Press B and the yellow LED switches off Troubleshooting...
  • Page 8 Northern Office Videx Security Ltd Unit 4-7 Chillingham ind Est Newcastle Upon Tyne NE6 2XX Tel: 0870 300 1240 Fax: 0191 224 5678 Southern Office 1 Osprey Trinity Park Trinity Way London E4 8TD Fax: 0208 523 5825 Technical Support tech@videx-security.com...
