Users' Manual
STP-103II
Thermal Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP-103II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIXOLON STP-103II

Summary of Contents for BIXOLON STP-103II

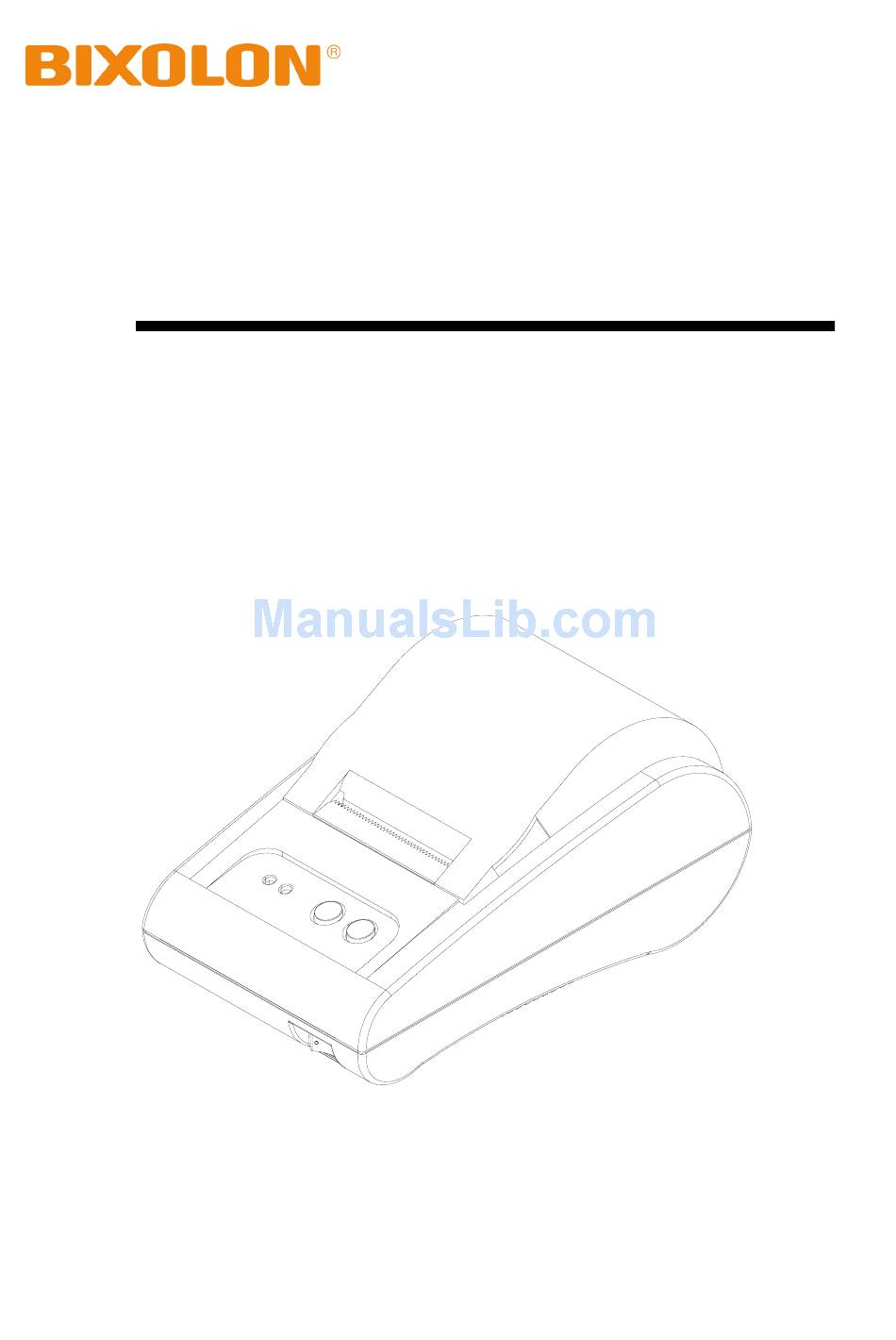

  • Page 1 Users’ Manual STP-103II Thermal Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Safety Precautions

    STP-103II ■ Safety Precautions The instructions shown below must be followed to prevent possible danger or damage by using the product incorrectly. Warning Serious injury or death may result if the instructions associated with this sign are not followed. Use only the adaptor supplied with the product.
  • Page 3 STP-103II Caution Minor injury or product damage may result if the instructions associated with this sign are not followed. Keep the desiccant out of the reach of children. If smoke, strange smells or noises come from the product, turn off the power immediately and follow •...
  • Page 4 BIXOLON. This users’ manual may contain errors in printing or technical errors, and they are subject to change without prior notice.

  • Page 5: Product Overview

    (10) Power terminals (11) Paper Rear view (12) Detection switch The STP-103II roll printer is designed to be used with other electric devices such as banking devices and peripheral devices, ECR, and POS. Main features are as follows. 1. Fast printing speed 2.

  • Page 6: Table Of Contents

    2-2 Connecting Interface Cable ..................10 2-2-1 Serial Interface of STP-103II ...............11 2-2-2 Parallel Interface of STP-103II..............11 2-2-3 USB Interface of STP-103II ................ 12 3. DIP Switches Setting ....................13 4. Installing Paper Roll ....................15 5. Self Test........................16 6.

  • Page 7: Installation And Basic Instructions Of The Printer

    STP-103II 1. Installation and Basic Instructions of the Printer 1-1 Unpacking Check the following contents and contact the sales representative where you purchased the product if any item is missing or incorrect. Roll paper Power cord Roll paper Power cord...

  • Page 8: Operation Control Panel

    STP-103II 1-3 Operation Control Panel There are two buttons and two lights on the control panel. POWER ERROR FEED ON LINE Buttons Buttons are for paper feed and online functions. ON LINE Press ON LINE button to receive data from the computer.

  • Page 9: Connecting Cable

    STP-103II 2. Connecting Cable 2-1 Connecting AC Adapter Use the optional AC adapter for the printer. Warning ※ Using an improper power supply device could cause fire or electric fault. Caution ※ Check that the power supply device is connected to the power terminal when turning the printer on or off.

  • Page 10: Connecting Interface Cable

    STP-103II 2-2 Connecting Interface Cable In order to connect the printer to the computer, you need a proper serial, parallel, or USB interface cable. - Check that both computer and printer are turned off, and connect the cable connector to the interface connector of the printer.

  • Page 11: Serial Interface Of Stp-103Ii

    STP-103II 2-2-1 Serial Interface of STP-103II Printer Host TXD (O) --------------------- RXD (I) RXD (I) --------------------- TXD (O) CTS (I) --------------------- RTS (O) 22~25 --------------------- RTS (O) --------------------- CTS (I) FGND DTR (O) CONNECT 25-PIN MALE DSR (I) FGND 9-PIN FEMALE...

  • Page 12: Usb Interface Of Stp-103Ii

    STP-103II 2-2-3 USB Interface of STP-103II Printer (B type) Host (A type) ----------------------------------- VBUS VBUS ----------------------------------- ----------------------------------- ----------------------------------- - 12 - Rev. 1.00...

  • Page 13: Dip Switches Setting

    STP-103II 3. DIP Switches Setting ※ Caution The printer must be turned off while setting the DIP switches in order to prevent electric short failures or other damage to the printer. Changes to connection device and printing density are configured with DIP switches 3-1 Make sure that the printer is turned off.
  • Page 14 STP-103II 3-3 Refer to the following table for switch settings Function Default SW 1-1 SW 1-2 Baud Rate Selection * Refer to the Following Table 1 SW 1-3 SW 1-4 Density Dark Normal SW 1-5 Handshaking Xon / Xoff DTR/DSR...

  • Page 15: Installing Paper Roll

    STP-103II 4. Installing Paper Roll Use the specified paper. ※ Caution The printer must be turned off when installing paper. 4-1 Open the printer cover and pull out and remove the completed used roll. 4-2 When installing the roll, insert it in the correct direction as shown in the picture.

  • Page 16: Self Test

    STP-103II 5. Self Test 5-1 Self Test Printing * Starting the self test Mount the roll, close the cover, and turn on the printer while pressing the PAPER FEED button to start the self test. The self test printing will print the current settings of the printer including the following information.

  • Page 17: Hexadecimal Dumping

    STP-103II 6. Hexadecimal Dumping This function allows accurate checking of the exchanged data of the printer for advanced users so that software issues can be identified. As all data and commands are printed in hexadecimal when using hexadecimal dumping function, it is helpful to find special commands.

  • Page 18: Specifications

    STP-103II 7. Specifications Printing method Thermal line printing Dot pitch 203Dpi (8 dot/mm) Printing width 48mm Paper width 58.0±0.5mm Characters per line 32 (Font A) (12x24), 42 (Font B) (9x17), 42 (Font C) (9x24) About 2.75 inches/sec Printing speed 70 mm/sec at 25℃/printing duty 12.5%...
