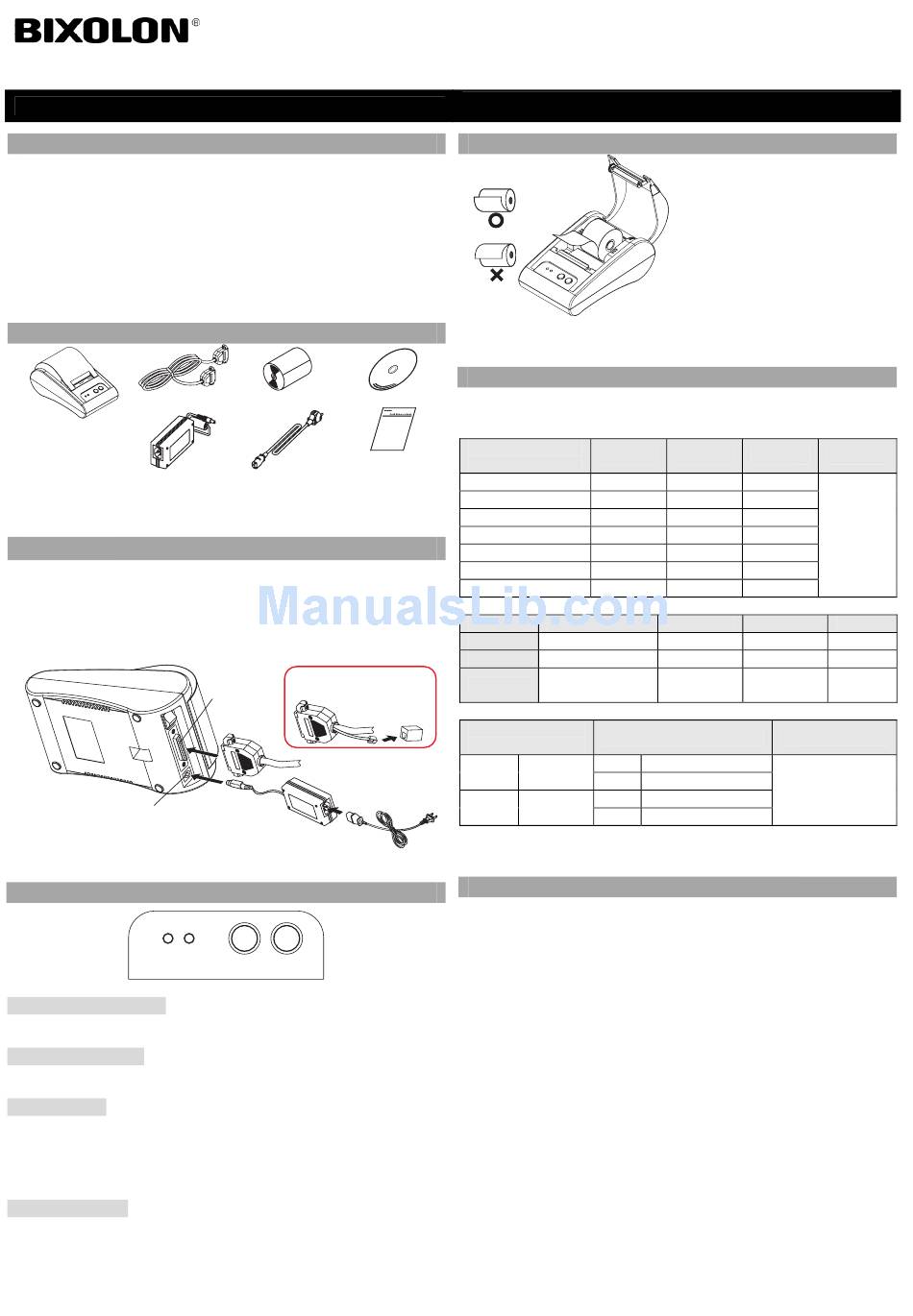

BIXOLON STP-103 Installation Manual

KN04-00020A (Rev.1.3)

◈ Information

This Installation Guide includes a brief outline of information necessary
for product installation. For more detailed installation information,
please refer to the user manual in the enclosed CD. The contents of the
CD include the following.
1. Manual: User Manual, Code Chart, Control Commands
2. Drivers: Windows Drivers, OPOS Drivers
3. Utilities: a logo download tool

◈ Components

Cable
STP-103
(STP-103DK)
AC/DC Adaptor

◈ Connecting the cables

1. Turn off the printer and the host ECR (host computer).
2. Plug the power cord into the Adaptor, and then plug the Adaptor into
the power connector of the printer.
3. Plug the cable into the interface connector.
※ Note: Use the STP-103 exclusive interface cable only.
Power connector

◈ Using the Operation Panel

POWER ERROR
• POWER (LED, GREEN)
When turning on the power, a green LED will be lit.
• ERROR (LED, RED)
When the paper is running low, a red LED blinks.
• FEED (Button)
Press the FEED button once to discharge extra paper. Holding down the
FEED button will discharge paper continuously until the button is
released. The FEED button can be used when the ON-LINE button is
turned off.
• ON LINE (Button)
To use the FEED button, first press the ON-LINE button once.
Procuct Installation CD Procuct Installation CD Procuct Installation CD
Paper Roll CD
Installation
Power cord Guide
STP -103DK exclusive cable
※
Interface
connector
Interface cable
(Serial/Parallel)
Power cord
AC Adaptor
FEED ON LINE
Printer Installation Guide
THERMAL PRINTER STP-103

◈ Installing the Paper Roll

◈ Setting the DIP switches

Changing Dip Switch settings must be done when the printer is off.
Any changes done while the printer is on will not be processed.
Transmission
Switch 1
Speed
2400
4800
9600
19200
38400
57600
115200
SW Function
Switch 4 Print Density
Switch 5 Handshaking
Firmware
Switch 8
Download
Switch 7
Switch 6 (CPL Selction)
(Language)
ON
ON English
OFF
ON
OFF Korean
OFF

◈ Self-Test

1. Make sure the paper roll has been installed properly.
2. Turn on the power while holding down the FEED button. The self-
test begins.
3. The self-test prints the current printer status, providing the control
ROM version and the DIP switch setting.
4. After printing the current printer status, self-test printing will print the
following, and pause. (The PAPER LED light blinks.)
Self-test printing.
Please press the FEED button
5. Press the FEED button to continue printing. The printer prints a
pattern using the built-in character set.
6. The self-test automatically ends and cuts the paper after printing the
following.
*** COMPLETED ***
7. After the self-test is complete, the printer returns to normal on-line
status.
※ Note
The self-test lets you know if your printer is operating properly. It
checks the print quality, ROM version, and DIP switch settings.
1. Insert a new paper roll, making
sure to align it properly.
2. Pull out a small amount of
paper, and close the cover.
Switch 2 Switch 3
ON OFF OFF
OFF ON OFF
OFF OFF ON
ON OFF ON
ON ON OFF
OFF ON ON
ON ON ON
On Off
Bold Normal
Xon/Xoff RTS/CTS
Download Print
24
*Korean:
32
Combination type
*English: 32 CPL
Completion type
Default
9600
Default
OFF
OFF
OFF
Default
Completion type
