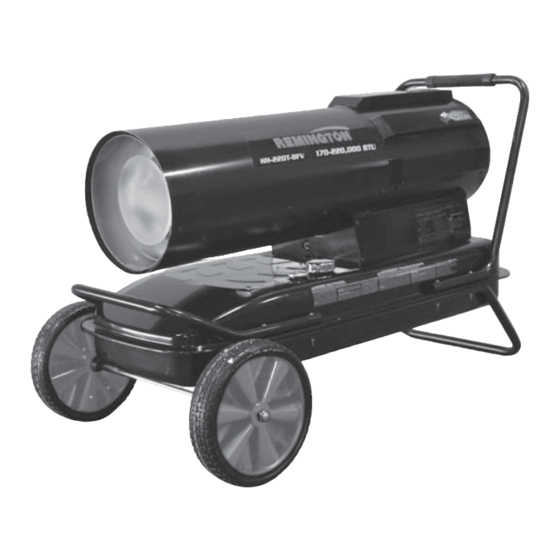

Remington HH-150T-DFV User's Manual And Operating Instructions
  1. Manuals
  2. Brands
  3. Remington Manuals
  4. Heater
  5. HH-150T-DFV
  6. User's manual and operating instructions

Remington HH-150T-DFV User's Manual And Operating Instructions

Hide thumbs Also See for HH-150T-DFV:

Advertisement

Quick Links

Download this manual See also: User's Manual and Operating Instructions
DANGER
instructions and warnings provided with this heater. Failure to comply can result in fire or explosion
that can cause property loss, bodily injury, or loss of life. Only persons who can follow and
understand these instructions should operate or service this heater. If you need heater info; such as
an operating manual, labels, etcetera, contact Pinnacle Products International at 800-641-6996.
DANGER
the area in which it is used. Failure to provide adequate combustion and ventilation air will result in
asphyxiation, carbon monoxide poisoning, bodily injury or death. Refer to "Ventilation" on Page 6.
668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free (800)-641-6996
Fax: (215)-891-8461
This is an unvented portable heater that uses air (Oxygen) from within
© 2014 Pinnacle Products International, Inc.
Be sure to comply with the
70-400-0100-14

Advertisement

loading
Need help?

Need help?

Do you have a question about the HH-150T-DFV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remington HH-150T-DFV

Summary of Contents for Remington HH-150T-DFV

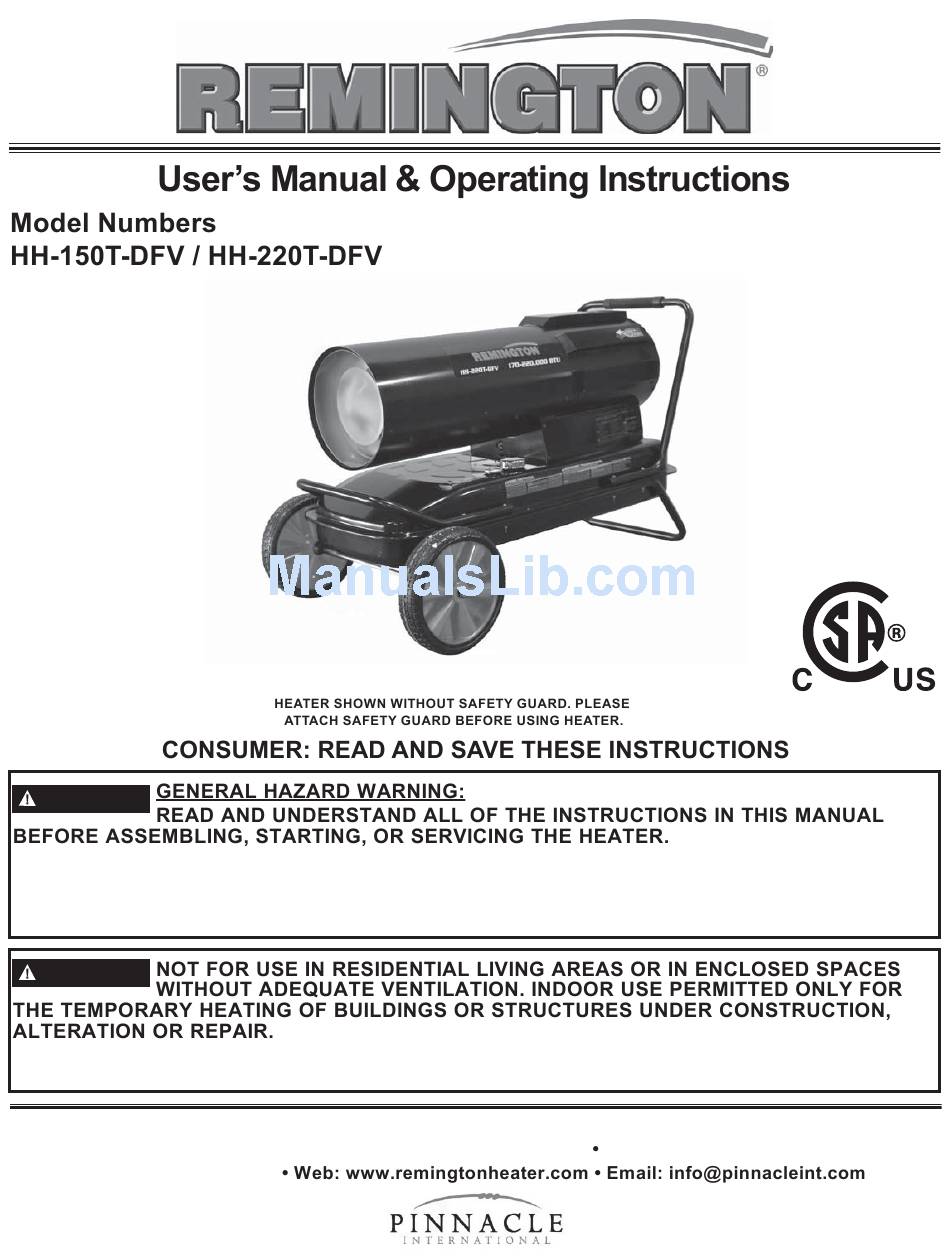

  • Page 1 DANGER Be sure to comply with the instructions and warnings provided with this heater. Failure to comply can result in fire or explosion that can cause property loss, bodily injury, or loss of life. Only persons who can follow and understand these instructions should operate or service this heater.
  • Page 2 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Safety Information..........1-2 Wiring Diagram..........10 Troubleshooting Guide........11 Assembly............4-5 Exploded View...........12 Operation............6-7 Ventilation.............6 Warranty.............15 Storage..............8 Keep combustibles such WARNING as; building materials, paper or cardboard a safe distance away from the heater as recommended by these instructions.
  • Page 3 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE WARNING WARNING ALWAYS use only the electrical power (voltage and The products described in this manual are frequency) specified on the model plate of the heater. Kerosene forced air heaters are primarily ALWAYS use only three-prong, grounded outlet and intended for use for temporary heating of extension cord.
  • Page 4 Pump Pressure: PSI 71 / 111 Volts: AC/Hz 120VAC ~ 60 Hz 120VAC ~ 60 Hz Amps Phase 1Ø 1Ø Features Models: HH-150T-DFV / HH-220T-DFV Shell Control Panel Front Safety Guard Rear Guard Rear Handle Power Cord Support Frame Front Handle...
  • Page 5 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Remove the heater and all packaging Tools Needed: materials from the shipping carton. - Phillips Head Screw Driver - 8 mm open end wrench Tip: Be sure to remove the axle from the - 19 mm open end wrench side of the Styrofoam packaging.
  • Page 6 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE 1. Insert axle through holes in wheel support. 2. Slide then spacer onto axle. Slide wheel onto axle with the air valve facing Handle out and hold in place with the axle nuts. (See Figure 2).
  • Page 7 (2,800 sq. cm) for each 100,00 Btu / Hr. of heater output. Provide a larger opening if more heaters are being used. HH-150T-DFV HH-220T-DFV WARNING - NEVER use fuel such as, benzene, alcohol, white glass, camp stove fuel, paint thinners, or other oil compounds in this heater.

  • Page 8: Control Panel

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Control Panel: 1. Fill the tank with kerosene or other approved fuel until needle on fuel gauge points to “F”. 2. Replace fuel cap and tighten firmly. Connect the heater to a three prong (grounded) power source.

  • Page 9: Maintenance

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance Service: WARNING 1. Drain fuel through the drain plug in the bottom of the fuel tank. 2. To remove the drain plug, pull the plug grip DO NOT TAMPER WITH THE UNIT.
  • Page 10 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance Service (Continued): Clean and re-gap every 600 hours of operation, or Blades should be cleaned at least once per replace as needed. After removing the spark plug, heating season, depending on conditions.
  • Page 11 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Maintenance Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately. To clean dirt from nozzle, blow compressed air through nozzle front.
  • Page 12 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Your serial number can be found on a white label on the right side cover of your heater. It will begin ready before calling customer service at 800-641-6996. Problem Possible Cause Solution...
  • Page 13 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE © 2014, Pinnacle Products International, Inc. Dual Fusion Forced Air Heater User’s Manual...
  • Page 14 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Front Shell 70-001-5100 70-001-5105 Upper Shell 70-001-5010 70-001-5010 Combustion Chamber 70-011-1000 70-011-1010 Control PCB 70-027-1000 70-027-1000 Power PCB Case 70-027-1250 70-027-1250 PCB Lead Wire 70-027-1020 70-027-1020 Nozzle 70-015-1000 70-015-1010 Air Dispenser...
  • Page 15 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Fuel Gauge 70-007-0215 70-007-0216 Fuel Cap 70-006-0120 70-006-0120 Fuel Tank 70-002-1000 70-002-1100 Fuel Filter Drain Plug 70-002-0105 70-002-0105 Rear Handle Wheel Support Frame 70-041-1000 70-041-1100 Front Handle Handle Bolts Wheel 70-041-1400...
  • Page 16 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Pinnacle Products International, Inc. warrants this heater If Pinnacle Products International, Inc. to the original retail purchaser only, to be free from defects be in normal operating condition, or not defective the item in material and workmanship for a period of one (1) year will be returned freight collect.
