Page 1: Battery Charger
Operation Manual Battery Charger PB-6207 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference. - Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions......................2 Features ............................3 Operating Method .........................3 Equipment Setting and Checking ....................4 Front Panel ............................5 Rear Panel ............................6 Applications ............................8 Block Diagram ..........................9 Specifications ..........................10 Service Procedures............................11 Schematic .............................11 Parts List ............................11 Variations and Options .......................11 Warranty ............................11 PB-6207... -
Page 4: Unpacking
BATTERY CHARGER Unpacking Unpacking Although your PB-6207 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you to retain the original packaging. In the unlikely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Features
2. Connect 24V battery to the battery input terminal of the device, and push the power switch to turn it on. 3. If power is supplied, power LED will be on, and charging voltage/current status of battery will be shown on the front display. 4. If battery connected to the device is dead, it will not be charged. PB-6207... -
Page 6: Equipment Setting And Checking
2) Set the termination switch to LOAD only for the first and last-numbered equipment units. All others must be set to OPEN. Equipment 1 Equipment 2 Equipment 3 Equipment N S/W: LOAD S/W: OPEN S/W: OPEN S/W: LOAD ※ Caution: Communication error may occur if setting is performed incorrectly. PB-6207... -

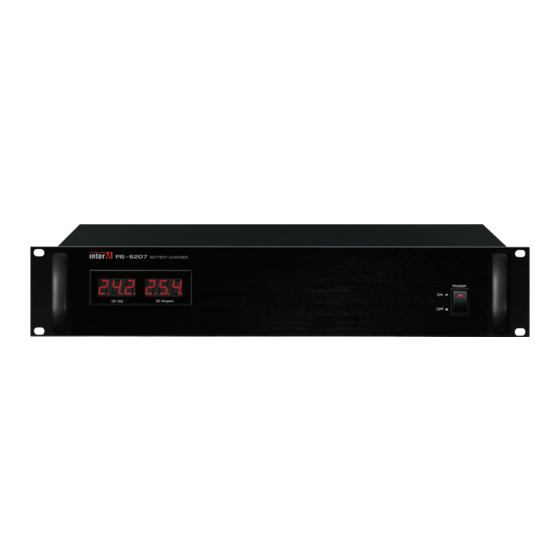

Page 7: Front Panel
It is the window displaying the charging current of battery, and charging current will be displayed normally only if battery is connected. ※If no battery is connected, it will be displayed as ‘---’. 3. POWER LED It is LED displaying power ON/OFF status. 4. POWER SWITCH It is power ON/OFF button. PB-6207... -
Page 8: Rear Panel
Link in is connected to the previous device, and Link out is connected to the next device. PIN NO. Functions RS-485 Data - A RS-485 Data - B RS-485 Data - Z RS-485 Data - Y ※Same for all IN/OUT terminals. PB-6207... - Page 9 5. TERMINATION SWITCH (LOAD/OPEN) It is the switch which is set for stable data receiving/transmitting of link in/out. For details of equipment setting, please refer to page 4. ※Caution: communication error may occur if it is not set correctly. PB-6207...
-
Page 10: Applications
BATTERY CHARGER Applications Applications PB-6207... -
Page 11: Block Diagram
BATTERY CHARGER Block Diagram Block Diagram PB-6207... -
Page 12: Specifications
BATTERY CHARGER Specifications Specifications PB-6207 Charge Complete Voltage 26.4V Starting Current 3A MAX Operation Temperature -10°C ~ +40°C Power Source 100–120VAC or 220–240VAC; 50/60Hz (Supplied AC mains transformer depends on country requirements) Power Consumption 120W Weight (SET) 6kg/13.2lb Dimensions (SET) 482(W)x88(H)x280(D)mm/19(W)x3.5(H)x11(D)in... -
Page 13: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 14 NOTE...
